DoorKing 1838 Access Plus Multi-Entry Door Controller
From $1,313.00
To $7,937.70
Product Details
The Access Plus line combines essential features of our most versatile solutions with the ease and accessibility of computer programming and control. Each Access Plus Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. With the easy to use Access Plus Account Manager programming software, you can customize the system immediately. Set up time zones, add or delete access codes, set up email notifications, and even lock or un-lock a door with the click of the mouse button.

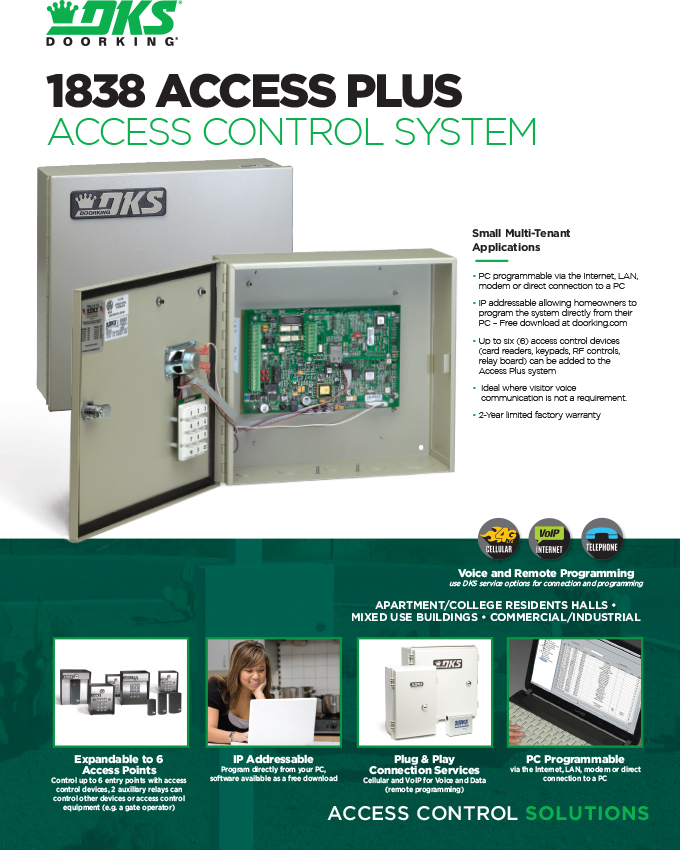

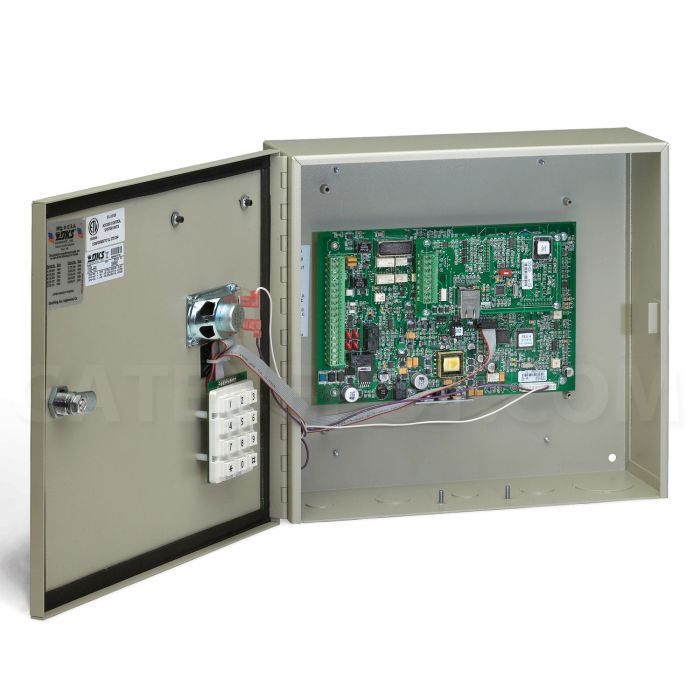

The 1838 Access Plus is ideally suited for residential and small business applications. The 1838 AP can control up to six entry points with Card Readers, Keypads, MicroPlus RF Receivers, or Relay Boards, (allows use of existing 26-bit devices). Additionally, two Auxiliary Relays on the main control board can be activated from the PC to control other devices or access control equipment (a Gate Operator for example).
DoorKing's Access PlusAccount Manager Software is a powerful, flexible and easy to use computer program that allows you to manage access control in a variety of controlled access applications.
Download Access Plus Programming Software
NOTES for Access Plus download:
Use this software with Access Plus systems with circuit board 1970-010 only. (This software cannot be used to program 1812 systems with 1871-010 or 1971-010 circuit boards.)
This program will operate in Windows 2000, Windows NT, Windows XP*, Windows Vista, Windows 7 - 8 - 10.
*This program will function with Windows XP provided that Microsoft continues their support of the XP downgrade DLL. If Microsoft discontinues their support of the downgrade DLL, we will discontinue support of Windows XP.
The 1838 Access Plus can be connected for voice and programming by any of these methods:
- DKS Cellular Option™ — 4G-LTE service (note 1)
- DKS Internet Options™ — VoIP service (note 2)
- DKS IM Server Modem™ — POTS Plain Old Telephone Service (note 3)
Note 1: Requires DKS Cellular Option™ subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires DKS Internet Options™ subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using DKS IM Server Modem™ subscription (required).DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.
Go to Connection Options for further details

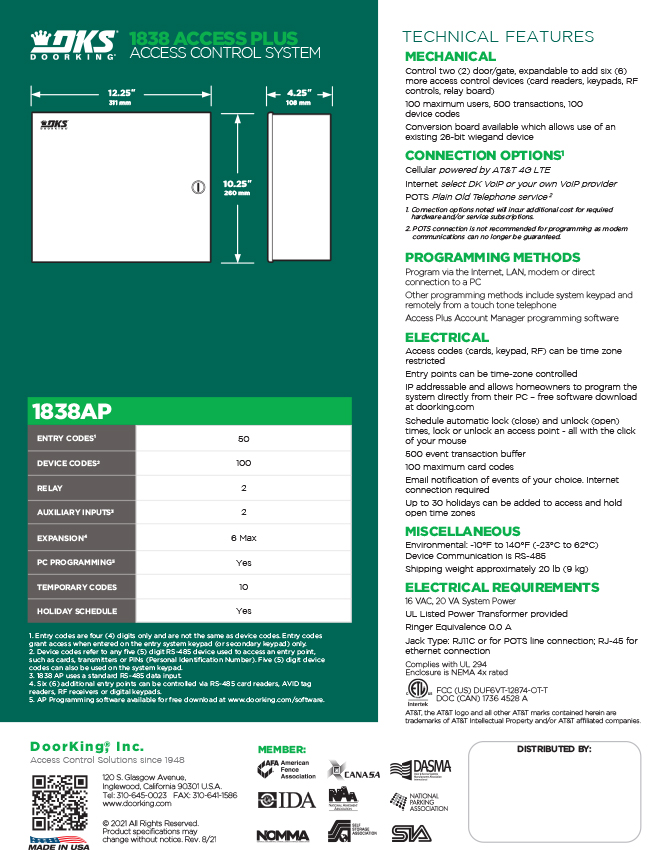

- IP addressable - program from your PC via direct connection, LAN or internet
- Control up to six (6) additional entry points with cards, keypads or transmitters (RS 485)
- Optional relay board available allows use of existing 26-bit wiegand devices

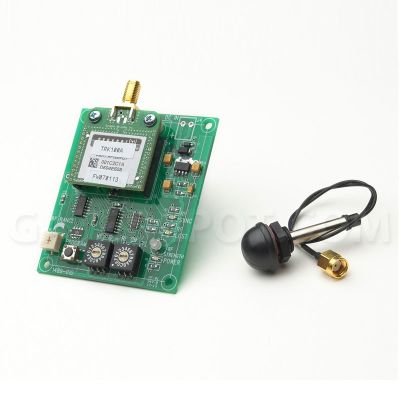

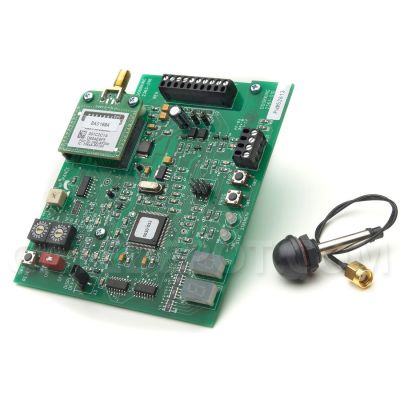

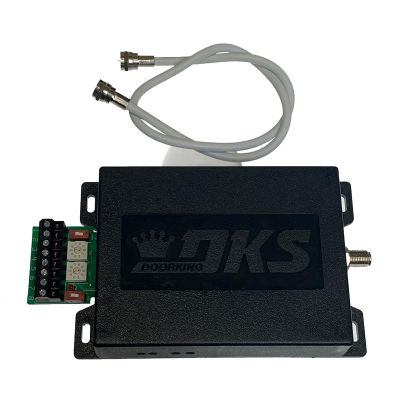

- Optional cellular adapter for wireless connection
- Holiday schedule
- Four (4) hold open time zones
- Schedule un-lock / lock times
- Email notifications
- Live relay control from your PC
- 100 device codes (card, keypad, transmitter)
- 500 event history buffer
- 10 temporary access codes
- Residents/Tenants can control two (2) doors or gates via access control devises -- expandable to an additional six (6) access control devices

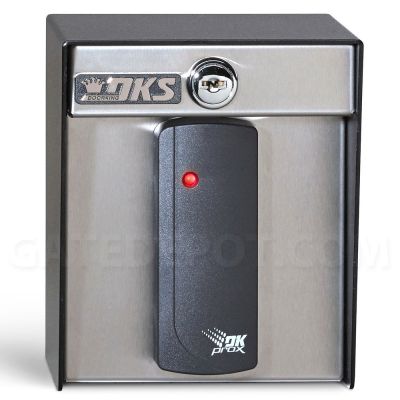

- Access Control devices include: Card readers, keypads, MicroPlus RF controls, relay board (allows use of existing 26-bit wiegand devices)
- 16 VAC, 20 VA system power (250 ma)
- U.L. listed power transformer provided
- Ringer equivalence: 0.0 A
- Jack type: RJ11C or W
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4507 A
- Complies with UL 294, ETL Listed
- Enclosure is NEMA 4x rated
Brand | Doorking |
---|
Showcased Accessories
- Integrated Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Credentials - Cards, Tags, Fobs & Transponders
- Radio Remotes
- Goosenecks
- Emergency Access
- All Products
- Batteries
- Surge Suppressors & Protectors
- Power Supplies & Transformers
- Wire & Cable
- Gate Operator Accessories
-

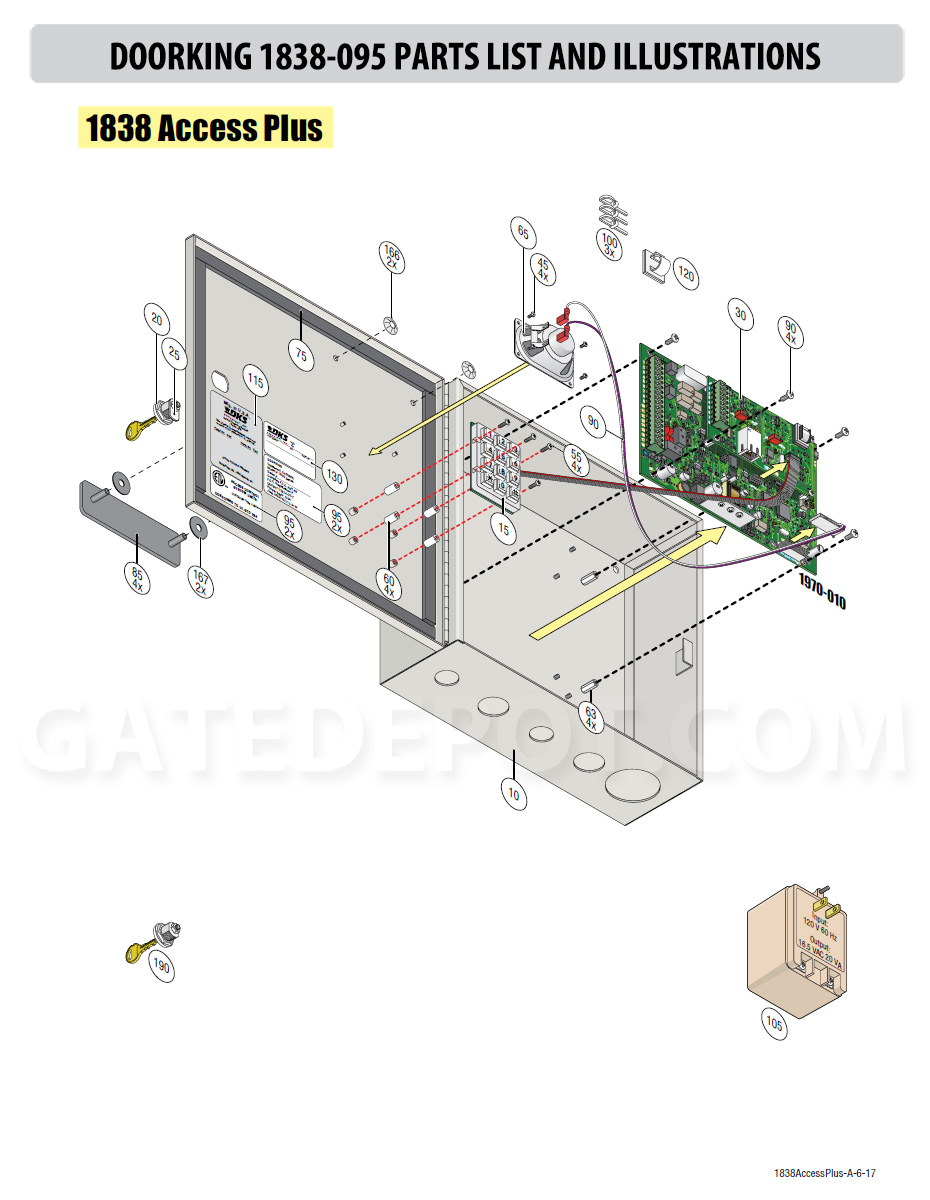

11====
-
