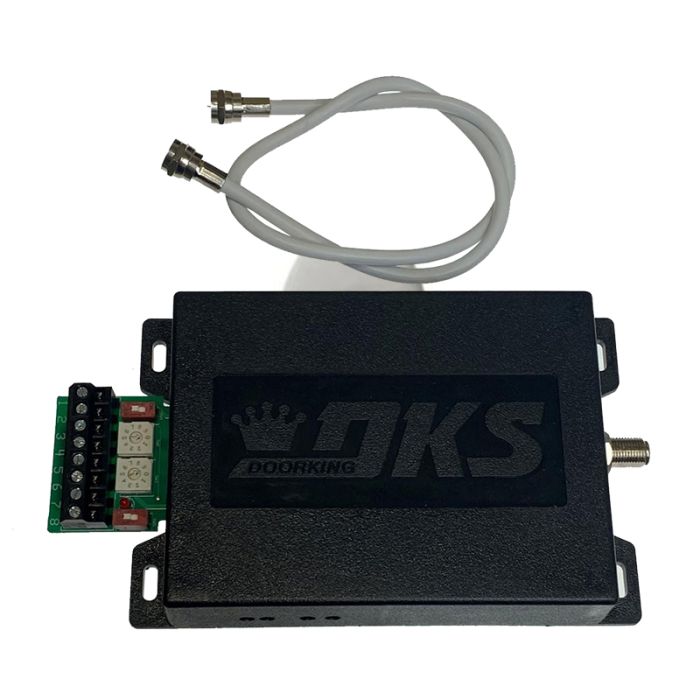

DoorKing 8053-080 RS485 MicroPLUS Receiver - 318 MHz / RS-485 Output

With automobile manufacturers building code copiers directly into todays cars, it's easy for a supposedly "secure" RF transmitter code to get into the wrong hands. And, how many car owners remember to delete their code when they sell or trade-in their car? This is the equivalent to leaving a copy of your front door key on the keyring when you hand the keys over to the new owner. This can't happen with MicroPLUS RF controls. MicroPLUS RF controls provide you with the highest level of security available with RF access controls. Our coding and encryption schemes are not shared with other producers, resulting in transmitter codes that cannot be duplicated or copied. With MicroPLUS controls, you are assured that only the original intended transmitter will activate your access system.

MicroPLUS controls are not compatible with the Homelink® system found in many automobiles. Use our MicroCLIK product line (less secure) for compatibility with the Homelink system.

The 8054 is a fully programmable stand-alone receiver that can store up to 1250 transmitter codes. Codes can be added or deleted individually, or in block format. Other programmable features include time zones, relay strike time and a print mode function.

• Primarily used as an RS-485 output receiver for Access Plus Telephone Entry Systems
• Supports up to 5300 transmitters in pass-through mode
• Can be set for stand-alone operation, 100 codes maximum
• Low power mode for solar-powered operation
• Compatible w/ MicroCLIK & MicroPLUS transmitters
• Form C relay
• 12-24 volt AC or DC
• Provides remote operation of vehicular access gates from the safety and convenience of a vehicle
• Over 1,000,000 transmitter codes available
• PROXmtr™ includes a built in proximity card with the MicroCLIK transmitter combining both RF and card access control into a single compact unit
• Transmitters available with 1, 2 or 3 buttons
• MicroCLIK® RF controls may be used as a stand-alone access control system or can be interfaced with 26 or 31-bit wiegand controllers
• HomeLink® compatible
