DoorKing 2361-080 Wireless Baseboard Kit - 2.4 GHz
• Wireless Wiegand Connector / 2.4 GHz
• Typical range is 500 feet line of sight
• Includes 1514-075 antenna kit and a vandal resistant dome antenna
• Optional repeaters for extended range (sold separately)
• NOT A STAND-ALONE DEVICE. MUST BE INSTALLED ON 1833, 1835, 1837, OR 1838
• MUST BE USED IN CONJUNCTION WITH 1489-080
• Use of DUAL BAND repeaters (2372-080) recommended
• 2 year Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
MPN:
2361-080
$449.00
SKU
DKS-2361-080
Product Details

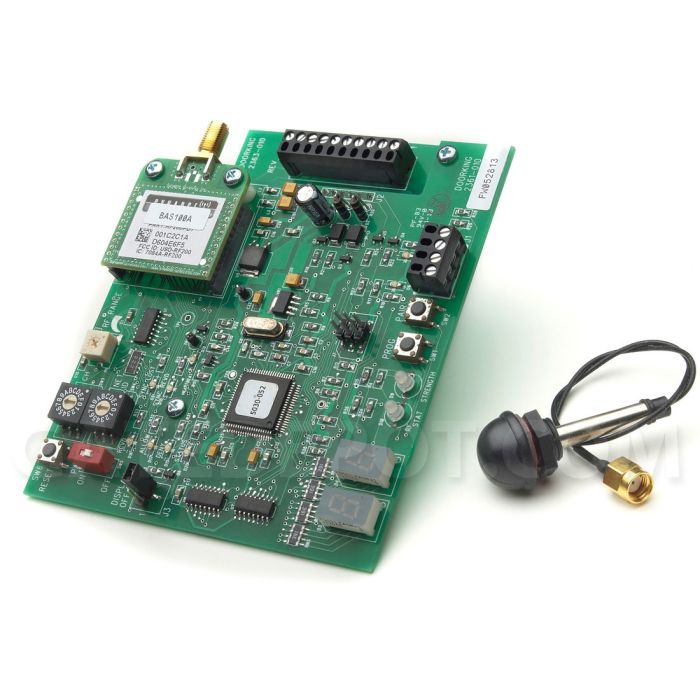

The 2361 baseboard kit provides wireless data communication from the DKS access controller (1833, 1835, 1837, 1838) to a remote access device (card reader, keypad, etc.) using a 2358 tracker expansion board equipped with the 1489 wireless kit.
- Baseboard Kit plugs into the 1830 Series controller main circuit board to provide the controller with a wireless wiegand connection
- Includes 1514-075 antenna kit and a vandal resistant dome antenna
- Not a stand-alone device. Must be installed on 1833, 1835, 1837 or 1838 controller main circuit board
| Manufacturer Part Number | 2361-080 |
|---|---|
| Brand | Doorking |
