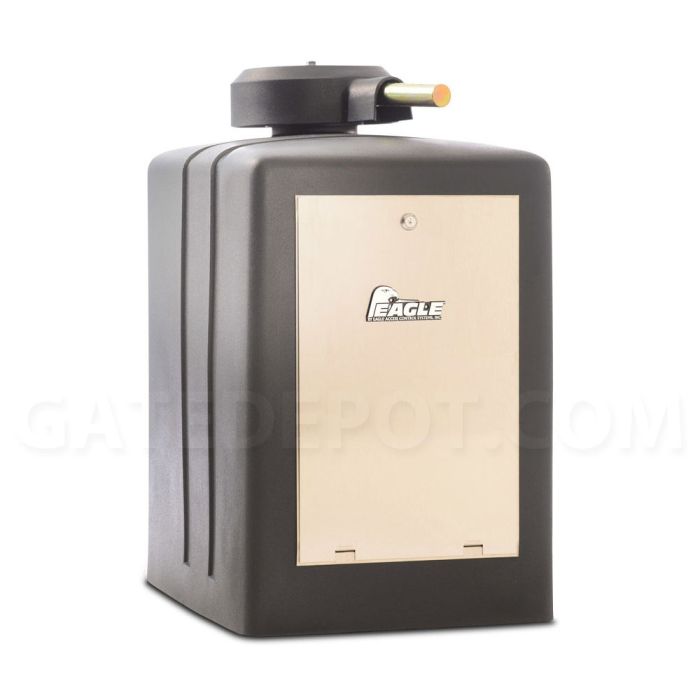

Eagle 200-1HP Commercial Swing Gate Operator - 1 HP
• 24' or 1,000 Lbs
• 115VAC Power Source / 115VAC Operating Voltage
• Opens 90° ~ 18 Seconds
• Continuous Duty
• Includes Photo Eye & Receiver
• Order 2 Operators for Dual Gates
• 5-Year Commercial/7-Year Residential Limited Manufacturer Warranty
• MADE IN USA
From $2,070.00
To $2,533.00
SKU
EGL-200-1hp-bundle
Product Details
With 3 models to choose from, the Eagle-200 is your reliable choice for smooth and powerful operation on all your commercial needs. Establish full communication between your master and slave operators with simply 2 wires. And with Eagle's global inputs you can now connect accessories to the master or slave operator. The Eagle-200 features the state of the art Diamond Control Board, with advanced features like Automatic Open/Close Delay perfect for dual leaf gates. It comes equipped with a swivel arm hardware that includes a quick release mechanism, with a simple and secure no pinch design, for operation during a power outage. All models are backed by our best in class 5 year Manufacturer Warranty.
The 200-1HP model is equipped with a 1 horse power continuous duty AC motor and is used for gates up to 24 feet or 1000 pounds.
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
- UL 325 and UL 991
- ETL Listed
- Class I, II, III & IV
- 5-Year Limited (Commercial) Manufacturer Warranty
- 7-Year Limited (When Used in Residential Application)
- Drive Chain: #50 Nickel Plated
- Gear Reducer: Size 60 & 40
- Swing Arm with No-Pinch Design
- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: 3/16" Zinc Plated Steel
- Auxiliary 120 VAC Power Outlet
- Quick Release Lever
- 1 HP Continuous Duty AC
- 115 VAC @ 60 HZ 10.5 AMP
- Optional Power II Battery Backup - Provides up to 40-80 Cycles
- No-Weld Swing Arm Assembly
- Audio Alarm
- Pre-Wired Receiver Terminal
- Maximum Gate: 24 ft or 1,000 lbs
- 18 seconds(approx.) to open (0-90 degrees)
- Rated Continuous Duty
- Dimensions: 29-1/2" (h) x 22-1/2" (w) x 17" (d)
- MADE IN USA
| Brand | Eagle |
|---|
Showcased Accessories
-
EMX 2101 CS101 Carsense 101 Probe Vehicle Motion Detector - Detector & Probe
From $135.00
To $807.00
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Timers & Relays
- Emergency Access
- Radio Remote Accessories
- All Products
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Retro-Reflective
- Through-Beam
- Safety Edges
- Surge Suppressors & Protectors
- Power Supplies & Transformers
- Gate Operator Accessories
- Wheels, Boxes & Track
- Magnetic Locks
Product Manuals
Product Brochures
Additional Resources
-
76====
-

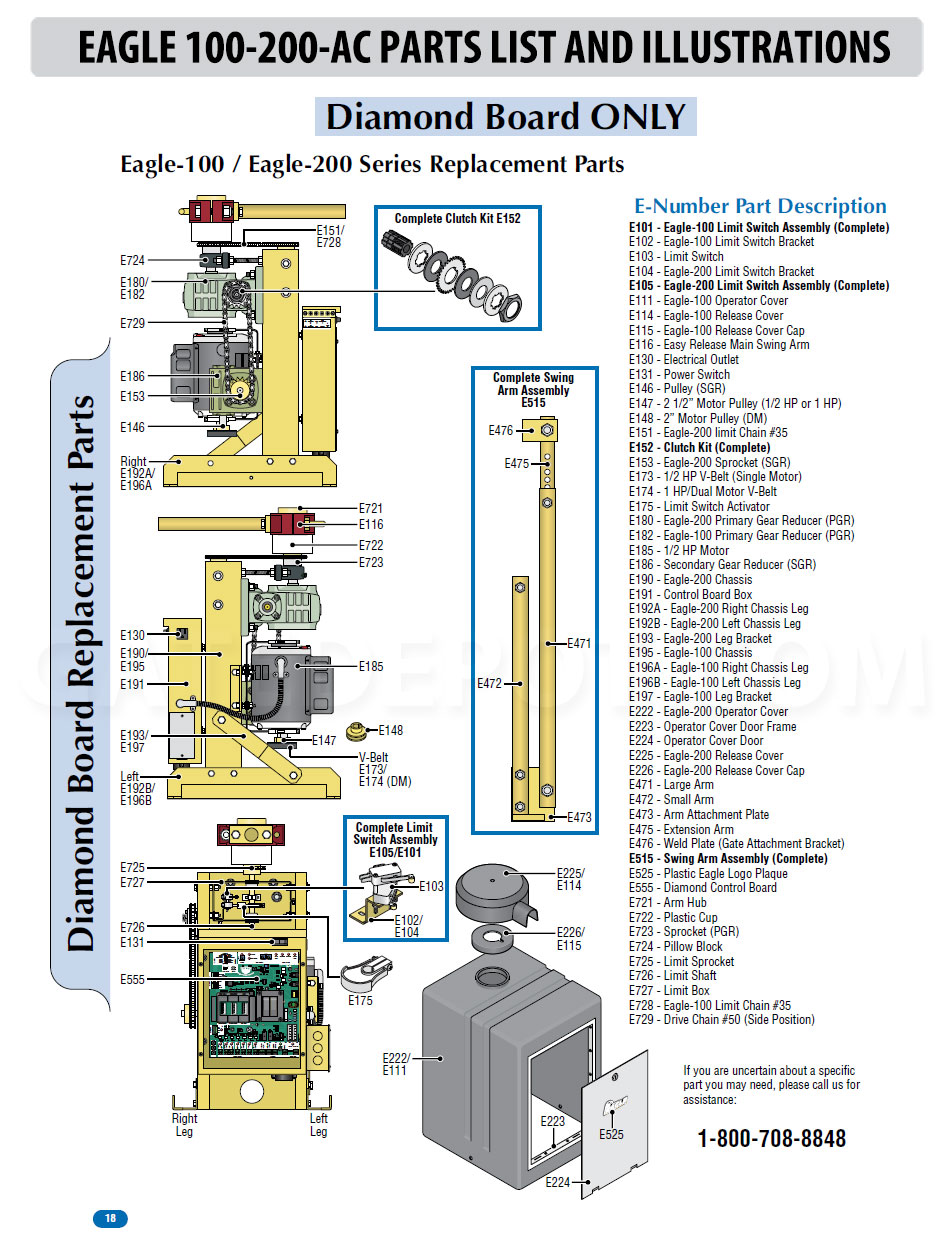

Eagle E101 Limit Switch AssemblyEGL-e101 E101• Eagle-200 Complete Limit Switch AssemblySee More Details
• Includes E102 & E103
• Eagle parts returns subject to a 15% restock fee$103.00
76==== -
Eagle E102 Bracket - Limit SwitchEGL-e102 E102• Eagle-200 Limit Switch BracketSee More Details
• Eagle parts returns subject to a 15% restock fee$24.00
76==== -
Eagle E103 Limit SwitchesEGL-e103 E103• Eagle-100 & 200 Limit SwitchesSee More Details
• Part of E105
• Eagle parts returns subject to a 15% restock fee$22.00
76==== -
Eagle E104 Bracket - Limit SwitchEGL-e104 E104• Eagle-100 Limit Switch BracketSee More Details
• Part of E105
• Eagle parts returns subject to a 15% restock fee$19.00
76==== -
Eagle E105 Limit Switch AssemblyEGL-e105 E105• Eagle-100 Complete Limit Switch AssemblySee More Details
• Includes E103 & E104
• Eagle parts returns subject to a 15% restock fee$114.00
76==== -
Eagle E111 Operator CoverEGL-e111 E111• Eagle-100 Operator Cover w/o doorSee More Details
• Eagle parts returns subject to a 15% restock fee$262.00
76==== -
Eagle E114 Release CoverEGL-e114 E114• Eagle-100 Release CoverSee More Details
• Eagle parts returns subject to a 15% restock fee$31.00
76==== -
Eagle E115 Release Cover CapEGL-e115 E115• Eagle-100 Release Cover CapSee More Details
• Eagle parts returns subject to a 15% restock fee$26.00
76==== -
Eagle E116 Quick Release AssemblyEGL-e116 E116• Eagle-100 & 200 Quick-Release AssemblySee More Details
• Eagle parts returns subject to a 15% restock fee$162.00
76==== -
Eagle E123 Operator Door FrameEGL-e123 E123• Eagle-100 & 200 Operator Door FrameSee More Details
• Eagle parts returns subject to a 15% restock fee$60.00
76==== -
Eagle E130 Electrical OutletEGL-e130 E130• Eagle-100 & 200 Electrical OutletSee More Details
• Eagle parts returns subject to a 15% restock fee$17.00
76==== -
Eagle E131 Power SwitchEGL-e131 E131• Eagle-100 & 200 Power SwitchSee More Details
• Eagle parts returns subject to a 15% restock fee$23.00
76==== -
Eagle E132 Electrical On/Off SwitchEGL-e132 E132• Eagle-100, 200, 1000, 2000 Electrical On/Off SwitchSee More Details
• Eagle parts returns subject to a 15% restock fee$23.00
76==== -
Eagle E146 Pulley - SGREGL-e146 E146• Eagle-100 & 200 SGR PulleySee More Details
• Eagle parts returns subject to a 15% restock fee$38.00
76==== -
Eagle E147 Pulley - MotorEGL-e147 E147• Eagle-100 & 200 Motor PulleySee More Details
• Eagle parts returns subject to a 15% restock fee$21.00
76==== -
Eagle E148 Pulley - MotorEGL-e148 E148• Eagle-100 Motor Pulley (2")See More Details
• Eagle parts returns subject to a 15% restock fee$16.00
76==== -
Eagle E150 Sprocket - Gear ReducerEGL-e150 E150• Eagle-200 Gear Reducer Sprocket (Primary)See More Details
• Eagle parts returns subject to a 15% restock fee$60.00
76==== -
Eagle E151 Drive ChainEGL-e151 E151• Eagle-200 Drive Chain (Top)See More Details
• Eagle parts returns subject to a 15% restock fee$63.00
76==== -
Eagle E152 Clutch KitEGL-e152 E152• Eagle-100 & 200 Entire Clutch Kit (Complete)See More Details
• Eagle parts returns subject to a 15% restock fee$164.00
76==== -
Eagle E153 Sprocket - Gear ReducerEGL-e153 E153• Eagle-100 & 200 Gear Reducer Sprocket (Secondary)See More Details
• Eagle parts returns subject to a 15% restock fee$49.00
76==== -
Eagle E160 Arm HubEGL-e160 E160• Eagle-100 & 200 Arm HubSee More Details
• Eagle parts returns subject to a 15% restock fee$76.00
76==== -
Eagle E161 Drive ChainEGL-e161 E161• Eagle-200 Drive Chain (Side)See More Details
• Eagle parts returns subject to a 15% restock fee$43.00
76==== -
Eagle E162 ShaftEGL-e162 E162• Eagle-200 Shaft (1 1/4 )See More Details
• Eagle parts returns subject to a 15% restock fee$157.00
76==== -
Eagle E170 Collar - SprocketEGL-e170 E170• Eagle-200 Sprocket CollarSee More Details
• Eagle parts returns subject to a 15% restock fee$9.50
76==== -
Eagle E171 Washer - CollarEGL-e171 E171• Eagle-200 Collar WasherSee More Details
• Eagle parts returns subject to a 15% restock fee$9.50
76==== -
Eagle E173 V-BeltEGL-e173 E173• Eagle-200 V-Belt (1/2HP)See More Details
• Eagle parts returns subject to a 15% restock fee$28.00
76==== -
Eagle E174 V-BeltEGL-e174 E174• Eagle-200 V-Belt (1HP/DM)See More Details
• Eagle parts returns subject to a 15% restock fee$33.00
76==== -
Eagle E175 Limit Switch ActivatorsEGL-e175 E175• Eagle-100 & 200 Limit Switch ActivatorsSee More Details
• Eagle parts returns subject to a 15% restock fee$38.00
76==== -
Eagle E176 Key - ShaftEGL-e176 E176• Eagle-100 & 200 Shaft KeySee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
76==== -
Eagle E180 Gear ReducerEGL-e180 E180• Eagle-200 Primary Gear ReducerSee More Details
• Eagle parts returns subject to a 15% restock fee$455.00
76==== -
Eagle E182 Gear ReducerEGL-e182 E182• Eagle-100 Gear ReducerSee More Details
• Eagle parts returns subject to a 15% restock fee$433.00
76==== -
Eagle E185 MotorEGL-e185 E185• Eagle-100, 200, 1000, 2000 1/2 HP MotorSee More Details
• Eagle parts returns subject to a 15% restock fee$274.00
76==== -
Eagle E186 Gear ReducerEGL-e186 E186• Eagle-100 & 200 Secondary Gear ReducerSee More Details
• Eagle parts returns subject to a 15% restock fee$342.00
76==== -
Eagle E190 ChassisEGL-e190 E190• Eagle-200 ChassisSee More Details
• Eagle parts returns subject to a 15% restock fee$422.00
76==== -
Eagle E191 Box - Control BoardEGL-e191 E191• Eagle-100 & 200 Control Board BoxSee More Details
• Eagle parts returns subject to a 15% restock fee$209.00
76==== -
Eagle E192A Chassis - Right LegEGL-e192a E192A• Eagle-200 Chassis Right LegSee More Details
• Eagle parts returns subject to a 15% restock fee$65.00
76==== -
Eagle E192B Chassis - Left LegEGL-e192b E192B• Eagle-200 Chassis Left LegSee More Details
• Eagle parts returns subject to a 15% restock fee$65.00
76==== -
Eagle E193 Bracket - Chassis LegEGL-e193 E193• Eagle-200 Chassis Leg BracketSee More Details
• Eagle parts returns subject to a 15% restock fee$35.00
76==== -
Eagle E195 ChassisEGL-e195 E195• Eagle-100 ChassisSee More Details
• Eagle parts returns subject to a 15% restock fee$387.00
76==== -
Eagle E196A Chassis - Left LegEGL-e196a E196A• Eagle-100 Chassis Left LegSee More Details
• Eagle parts returns subject to a 15% restock fee$57.00
76==== -
Eagle E196B Chassis - Right LegEGL-e196b E196B• Eagle-100 Chassis Right LegSee More Details
• Eagle parts returns subject to a 15% restock fee$57.00
76==== -
Eagle E197 Bracket - Chassis LegEGL-e197 E197• Eagle-100 Chassis Leg BracketSee More Details
• Eagle parts returns subject to a 15% restock fee$35.00
76==== -
Eagle E222 Cover - OperatorEGL-e222 E222• Eagle-200 Operator CoverSee More Details
• Eagle parts returns subject to a 15% restock fee$303.00
76==== -
Eagle E223 Operator Door FrameEGL-e223 E223• Eagle-100 & 200 Operator Door FrameSee More Details
• Eagle parts returns subject to a 15% restock fee$76.00
76==== -
Eagle E224 Operator DoorEGL-e224 E224• Eagle-100 & 200 Operator DoorSee More Details
• Eagle parts returns subject to a 15% restock fee$185.00
76==== -
Eagle E225 Release CoverEGL-e225 E225• Eagle-200 Release CoverSee More Details
• Eagle parts returns subject to a 15% restock fee$30.00
76==== -
Eagle E226 Release Cover CapEGL-e226 E226• Eagle-200 Release Cover CapSee More Details
• Eagle parts returns subject to a 15% restock fee$19.00
76==== -
Eagle E227 Quick Release AssemblyEGL-e227 E227• Eagle-200 Quick Release AssemblySee More Details
• Eagle parts returns subject to a 15% restock fee$205.00
76==== -
Eagle E471 Swivel Arm - LargeEGL-e471 E471• Eagle-200 Swivel Arm (Large)See More Details
• Eagle parts returns subject to a 15% restock fee$109.00
76==== -
Eagle E472 Swivel Arm - SmallEGL-e472 E472• Eagle-200 Swivel Arm (Small)See More Details
• Eagle parts returns subject to a 15% restock fee$100.00
76==== -
Eagle E473 Plates - Swivel AttachmentEGL-e473 E473• Eagle-200 Swivel Attachment PlatesSee More Details
• Eagle parts returns subject to a 15% restock fee$38.00
76==== -
Eagle E475 Swivel Arm Extension ArmEGL-e475 E475• Eagle-200 Swivel Arm Extension ArmSee More Details
• Eagle parts returns subject to a 15% restock fee$49.00
76==== -
Eagle E476 Plate - Swivel ArmEGL-e476 E476• Eagle-200 Swivel Arm Weld PlateSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
76==== -
Eagle E515 Complete Swivel Arm AssemblyEGL-e515 E515• Complete Swivel Arm Assembly - indicate modelSee More Details
• Includes: E471, E472, E473, E475, E476
• Eagle parts returns subject to a 15% restock fee$245.00
76==== -
Eagle E525 LogoEGL-e525 E525• Eagle-100, 200, 1000 & 2000 Operator Cover Eagle LogoSee More Details
• Eagle parts returns subject to a 15% restock fee$30.00
76==== -
Eagle E555 Diamond Control Board - ACEGL-e555 E555• Eagle-100, 200, 1000 & 2000 Diamond Control BoardSee More Details
• Eagle parts returns subject to a 15% restock fee$353.00
76==== -
Eagle E710 Nut - Clutch KitEGL-e710 E710• Eagle-200 Clutch Kit NutSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
76==== -
Eagle E721 Swing Arm HubEGL-e721 E721• Eagle-100 & 200 Swing Arm HubSee More Details
• Fits Quick-Release Handle
• Eagle parts returns subject to a 15% restock fee$112.00
76==== -
Eagle E721A Swing Arm Hub - Old StyleEGL-e721a E721A• Eagle-100 & 200 Swing Arm Hub, Old StyleSee More Details
• Fits Square Handle
• Eagle parts returns subject to a 15% restock fee$112.00
76==== -
Eagle E722 Plastic CupEGL-e722 E722• Eagle-100 & 200 Plastic CupSee More Details
• Replaces Old Style Aluminum Cup
• Eagle parts returns subject to a 15% restock fee$64.00
76==== -
Eagle E723 Sprocket - PGREGL-e723 E723• Eagle-100 PGR SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$49.00
76==== -
Eagle E724 Pillow BlockEGL-e724 E724• Eagle-100 & 200 Pillow BlockSee More Details
• Eagle parts returns subject to a 15% restock fee$49.00
76==== -
Eagle E725 Sprocket - LimitEGL-e725 E725• Eagle-100 & 200 Limit SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$30.00
76==== -
Eagle E726 Shaft - LimitEGL-e726 E726• Eagle-100 & 200 Limit ShaftSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
76==== -
Eagle E727 Limit BoxEGL-e727 E727• Eagle-100 Limit BoxSee More Details
• Eagle parts returns subject to a 15% restock fee$60.00
76==== -
Eagle E728 Limit ChainEGL-e728 E728• Eagle-100 Limit ChainSee More Details
• Eagle parts returns subject to a 15% restock fee$25.00
76==== -
Eagle E729 Chain - DriveEGL-e729 E729• Eagle-100 Drive Chain - SideSee More Details
• Call for pricing
• Eagle parts returns subject to a 15% restock fee$36.00
76==== -
Eagle E901 Bushing - Main Clutch KitEGL-e901 E901• Eagle-200 Clutch Kit Main BushingSee More Details
• Eagle parts returns subject to a 15% restock fee$19.00
76==== -
Eagle E902 Clutch Kit Disk - MetalEGL-e902 E902• Eagle-200 Clutch Kit Metal DiskSee More Details
• Eagle parts returns subject to a 15% restock fee$16.00
76==== -
Eagle E903 Clutch Kit Disk - FiberEGL-e903 E903• Eagle-200 Clutch Kit Fiber Disk (Clutch)See More Details
• Eagle parts returns subject to a 15% restock fee$16.00
76==== -
Eagle E904 Spacer - Clutch KitEGL-e904 E904• Eagle-200 Clutch Kit SpacerSee More Details
• Eagle parts returns subject to a 15% restock fee$14.00
76==== -
Eagle E905 Sprocket - Clutch KitEGL-e905 E905• Eagle-200 Clutch Kit SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$38.00
76==== -
Eagle E906 Clutch Kit Disk - FiberEGL-e906 E906• Eagle-200 Clutch Kit Fiber Disk (Clutch)See More Details
• Eagle parts returns subject to a 15% restock fee$16.00
76==== -
Eagle E907 Clutch Kit Disk - MetalEGL-e907 E907• Eagle-200 Clutch Kit Metal DiskSee More Details
• Eagle parts returns subject to a 15% restock fee$18.00
76==== -
Eagle E908 Washer - Clutch Kit SpringEGL-e908 E908• Eagle-200 Clutch Kit Spring WasherSee More Details
• Eagle parts returns subject to a 15% restock fee$19.00
76==== -
Eagle E909 Nut - Clutch KitEGL-e909 E909• Eagle-200 Clutch Kit NutSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
Write Your Own Review
