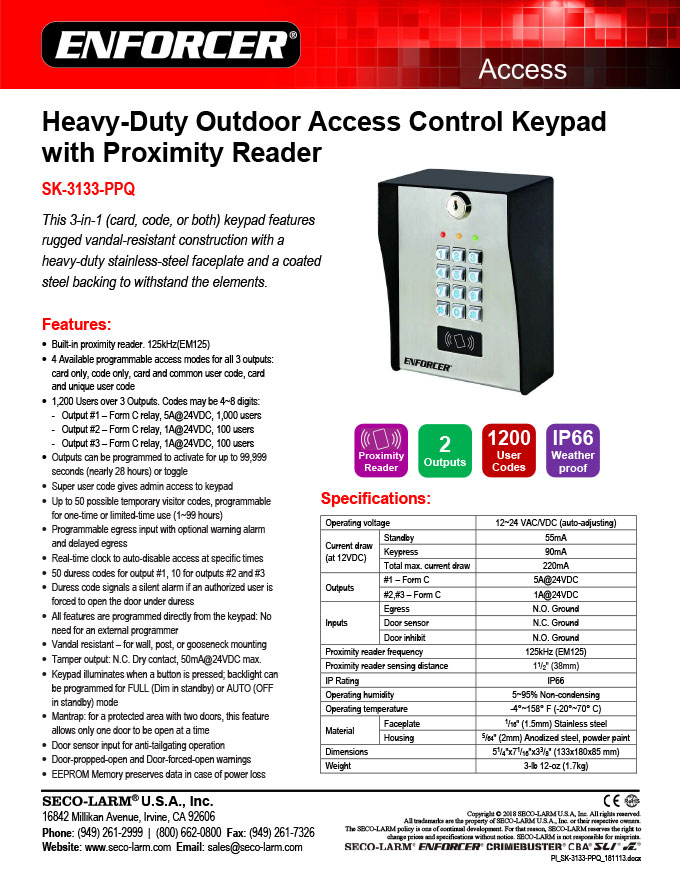

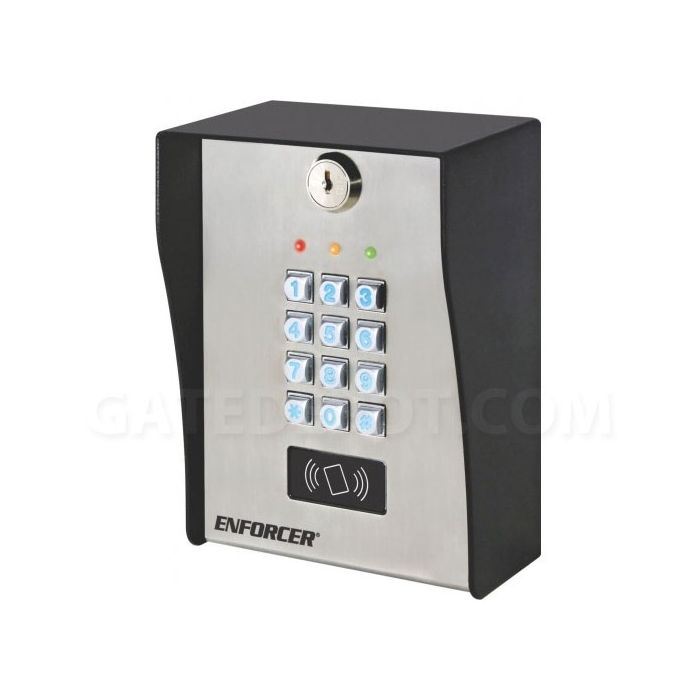

Seco-Larm SK-3133-PPQ Heavy Duty Outdoor RFID Proximity Reader w/ Keypad

The ENFORCER SK-3133-PPQ features rugged construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements.

Features

• Rugged construction – heavy-duty stainless steel faceplate with coated steel housing
• Built-in proximity reader
• Wiegand output: 26, 34, 37 bits
• 12~24 VDC/VAC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1 and 100 each for outputs 2 and 3
• Up to 50 possible visitor codes, for one-time or limited-time use (1~99 hours)
• Up to 50 duress codes for output 1 and 10 each for outputs 2 and 3
• Output 1: Form C relay, 5A@24VDC max. / output 2 and 3: Form C relay, 1A@24VDC max.
• Outputs 1, 2 and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output, 50mA@24VDC max.
• All features are programmed directly from the keypad, no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Vandal-resistant, suitable for wall, post, or gooseneck mounting
• IP66 Weatherproof

Specifications

• 12~24 VAC/VDC Operating Voltage
• Current Draw (@12VDC)
• Standby: 80mA
• Keypress: 114mA
• Output 1 active: 150mA
• Outputs 1 & 2 active: 180mA
• Outputs 1,2, & 3 active: 220mA
• Wiegand data output: 150mA
• Outputs
• #1 Form C: 5A@24VDC
• #2 Form C: 1A@24VDC
• #3 Form C: 1A@24VDC
• K or A: 100mA@24VDC
• Durass: 100mA@24VDC
• Interlock: 100mA@24VDC
• Tamper: 50mA@24VDC
• Wiegand: 26~37bits
• Inputs
• Egress: N.O.
• Ground Door sensor: N.C.
• Ground Door inhibit: N.O. Ground
• Proximity reader frequency: 125kHz (EM125)
• Proximity reader sensing distance: 1-1/2" (38mm)
• Weatherproof IP66 IP Rating
• 5~95%, non-condensing Operating humidity
• -4°~158° F (-20°~70° C) Operating Temperature
• Material
• Faceplate:1/16" (1.5mm) Stainless steel
• Housing: 5/64" (2mm) Anodized steel, powder paint
• 5-1/4"x7-1/16"x3-3/8" (133x180x85 mm) Dimensions
