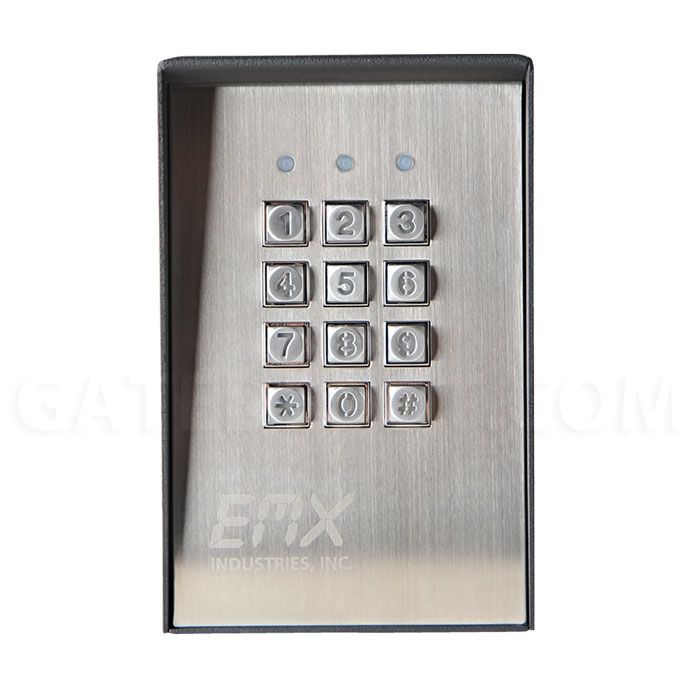

EMX 5400-2 KPX 100 Keypad - Weatherproof

Be the first to review this product

• 100 Users Relay 1 / 10 Users Relay 2 • 12-24VAC/DC • Stainless Steel Faceplate • Metal Backlit Keys • Weatherproof/Vandal Resistant IP66 • Wall, Post or Gooseneck mounting • 2-Year Limited Manufacturer Warranty

MPN: EMX-5400-2

$156.00

SKU

EMX-5400-2

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Overview

Product Details

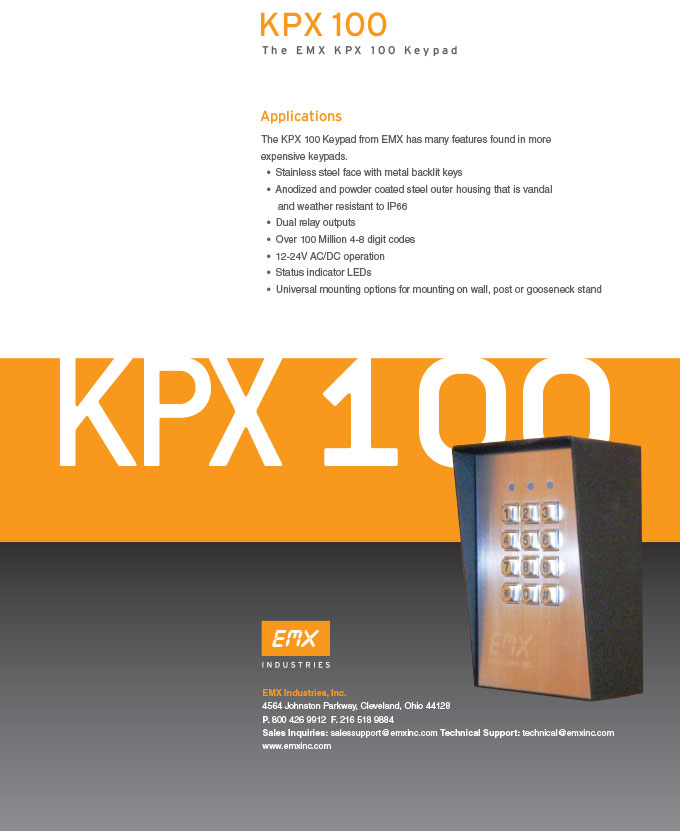

The KPX-100 is a dual relay output, programmable keypad. With its durable back-lit, all metal key buttons and a rugged metal housing, the KPX-100 programmable keypad is designed to handle high-traffic and harsh environments. The keypad fits on gooseneck mounts or on posts and walls. The KPX-100 has many features found in more expensive programmable keypads.

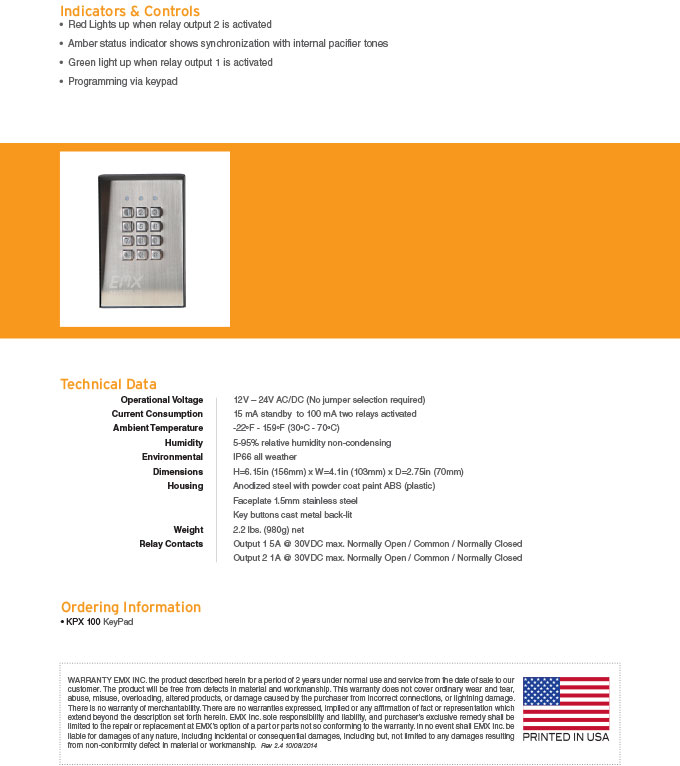

Operational Voltage: 12V — 24V AC/DC (No jumper selection required)
Current Consumption: 15 mA standby to 100 mA two relays activated
Ambient Temperature: -22°F — 159°F (30°C — 70°C)
Humidity: 5-95% relative humidity non-condensing
Environmental: IP66 all weather
Dimensions: H=6.15in (156mm) x W=4.1in (103mm) x D=2.75in (70mm)
Housing: Anodized steel with powder coat paint ABS (plastic)
Faceplate: 1.5mm stainless steel
Key buttons: cast metal back-lit
Relay Contact Output 1: 5A @ 30VDC max. Normally Open / Common / Normally Closed
Relay Contact Output 2: 1A @ 30VDC max. Normally Open / Common / Normally Closed
