Linear MultiCode/Stanley MCS109950 Gate Receiver - 1 Button

The Model 109950 1-Channel, 12-24V, Gate Receiver is designed for use in gate operator applications. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. Also included is 3-feet of coax cable and a bulkhead connector for remotely mounting the whip antenna in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing. An external Model 106603 Remote Whip Antenna can also be used with this receiver.

The Model 109950 is a dual frequency receiver. An internal jumper selects either 300 MHz or 310 MHz operating frequency. The 300 MHz frequency is compatible with standard Multi-Code transmitters, the 310 MHz frequency is compatible with the Stanley version Multi-Code transmitters.

The operator supplies 12-24 volt power to the receiver, or the receiver can be powered by a separate AC power transformer or DC power supply. The normally open relay output can switch up to 1 amp @ 30 VAC. A 3-foot, 2-conductor wire lead with spade lugs is provided for attachment to the gate operator's radio activation terminals.

The receiver is programmed with a 10-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator.

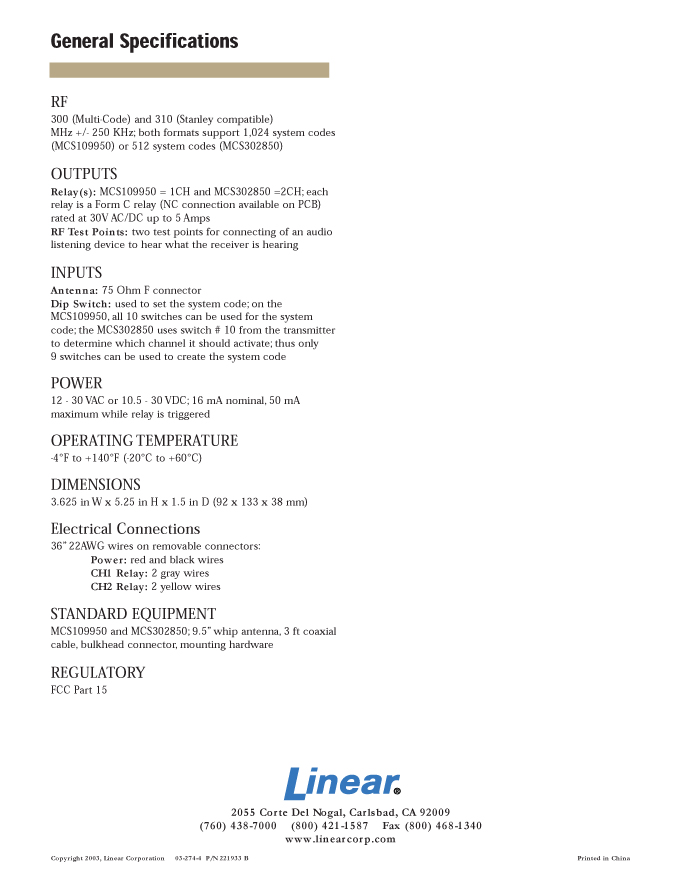

• Operates on 12-24 volts AC or DC power
• One channel
• Whip antenna
• 3-foot antenna coax and bulkhead connector
• Codes: 1,024 (set by dip switches)
• RF frequency: 300 MHz or 310 MHz (jumper selectable)
• Dimensions: 3.625" W x 5.25" H x 1.5" D
