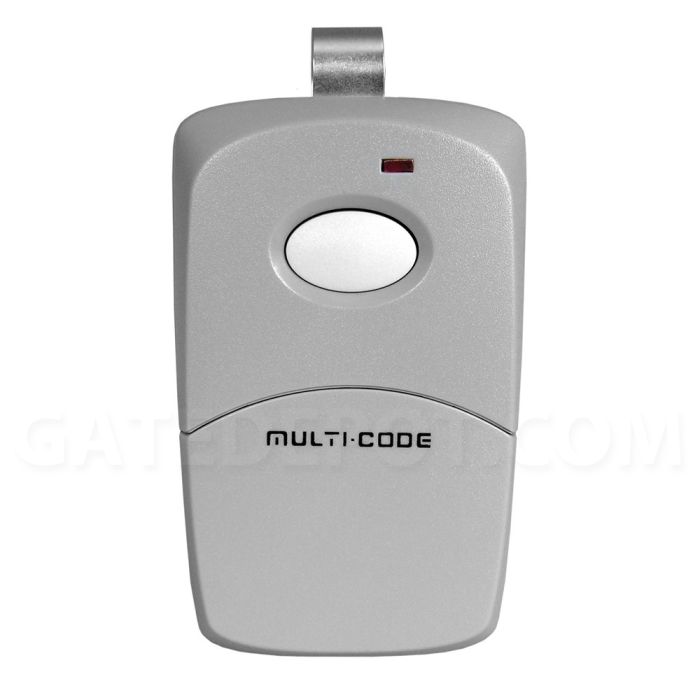

Linear MultiCode MCS308911 Visor Transmitter - 1 Button

Rating:

100 % of 100

• Compatible with 300 MHz Multi-Code receivers • Supplied with visor clip • Easy access to battery and coding switches • Power: 9-volt battery • Codes: 1,024 (set by dip switches) • RF frequency: 300 MHz • Dimensions: 2.5" W x 3.75" H x 0.875" D • 1 Week Lead Time

MPN: MCS308911

$22.05

SKU

LIN-mcs308911

Skip to the end of the images gallery

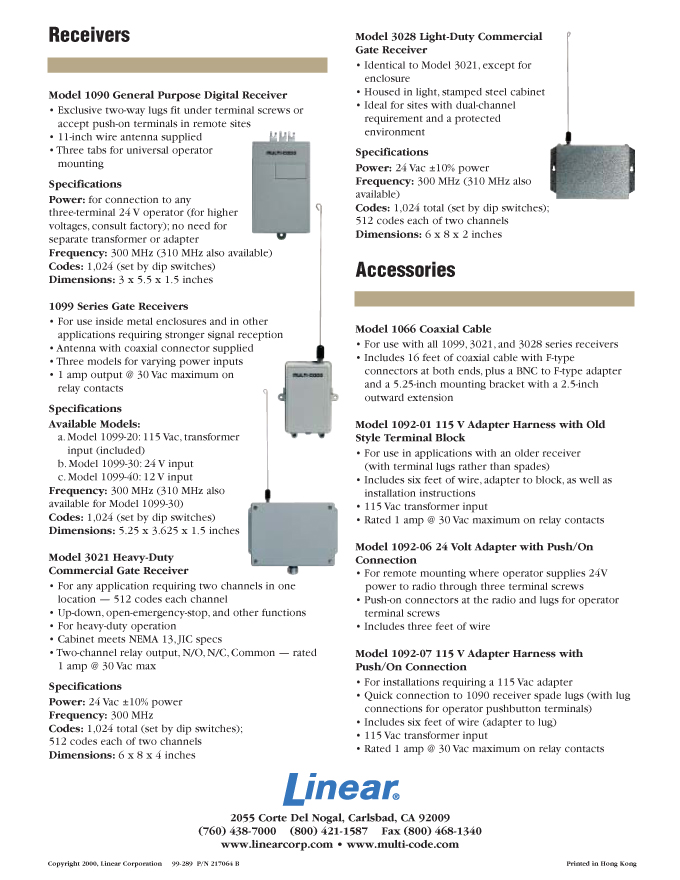

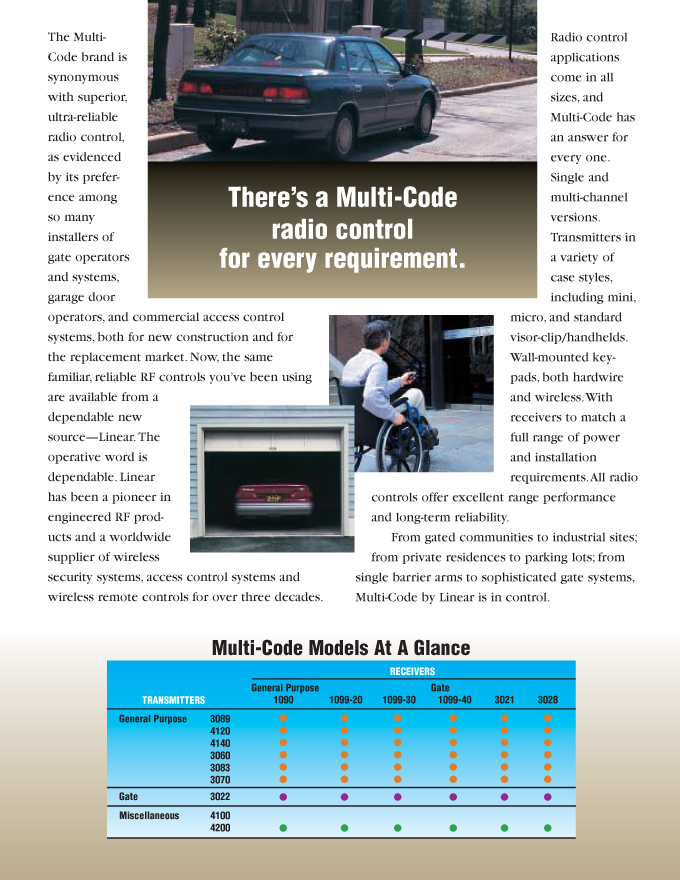

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Overview

Product Details

The Model 308911 1-Channel Visor Transmitter is a portable transmitter designed for automatic door and gate operator applications.

This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. The transmitter has a red test/operate indicator and is powered by a 9-volt battery. A visor clip is included.

The transmitter is Multi-Code format with one 10-position coding switch providing 1,024 possible codes. The transmitter will only activate receivers set with the same code.

The Model 308911 is compatible with 300 MHz Multi-Code receivers and Linear Model 109950 and 302850 receivers.

Specification
