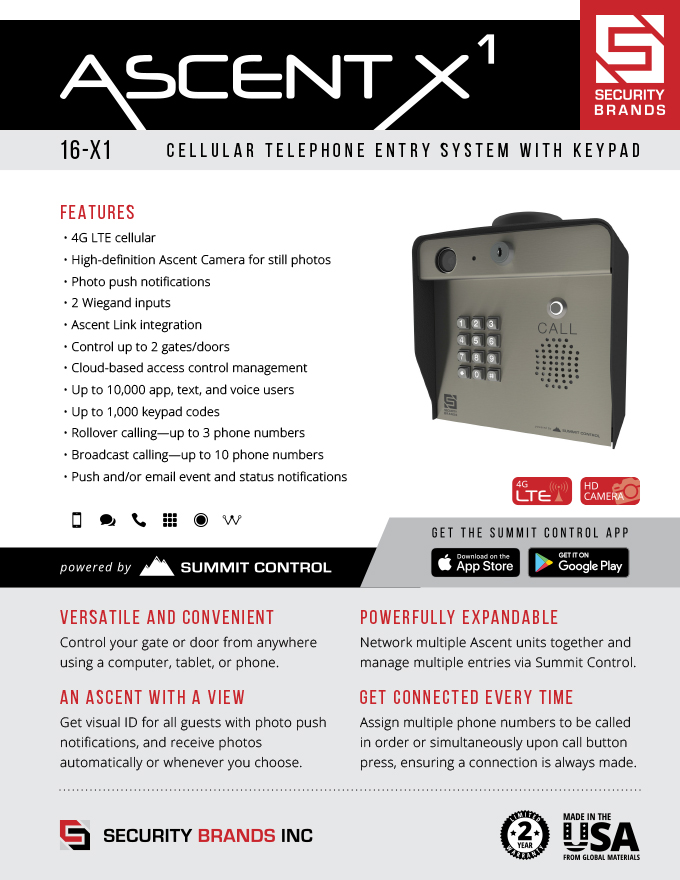

Security Brands Ascent 16-X1 Telephone Entry System w/ Keypad - Cellular

When you need a cellular telephone entry and access control system in one with a camera, Ascent X1 has you covered. Control up to two gates or doors and grant access via app, text, voice, keypad, call button, directory call, or Wiegand device!

Our cellular multi-door controllers are backed by 4G LTE cellular technology and are powered by our simple, cloud-based Summit Control software platform.

Our flagship Ascent X1 set the standard for cellular access control when it debuted in 2014 and continues to do so today. It features both a call button for telephone entry as well as the fast and simple convenience of a keypad.

This unit feature app, text, and voice control, back-to-back calling of up to 3 phone numbers, and simultaneous calling of up to 10 upon call button press.

Versatile & Convenient

Control your gate from anywhere using a computer, tablet, or phone.

An Ascent with a View

Get visual ID on all visitors to your property with photo push notifications; get photos automatically or whenever you choose.

Powerfully Expandable

Network multiple units together and control multiple doors via Summit Control.

Get Connected Every Time

Assign up to three phone numbers to each address to be called one after the other, ensuring a connection is always made.

Powered by Summit Control™

Unit includes a GSM SIM card ready for activation.

Two-Year Limited Warranty

Made in the USA from Global Materials

FEATURES

• 4G LTE cellular
• High-definition Ascent Camera for still photos
• Photo push notifications
• 2 Wiegand inputs
• Control via 7 different control methods
• Control up to 2 gates or doors
• Cloud-based access-control management
• Up to 10,000 app, text, and voice users
• Up to 1,000 keypad codes
• Rollover calling—up to 3 phone numbers per address
• Broadcast calling—up to 10 phone numbers
• Push and/or email event and status notifications
• Ascent Link integration
• 7-day timers
• Holiday timers
• Special-event timers
• Temporary users with permission limits
• Quick temporary user setup
• Audit trail with detailed reports
• "Do Not Disturb" mode
• Stainless-steel faceplate
• Powder-coated, galvanized steel enclosure
• Backlit keypad and call button

IMPORTANT!

Always complete a site survey to make sure you have cellular coverage. Our cellular products run on the 4G LTE network.
This is a cellular accessory for a gate/door, so an uninterrupted cellular connection cannot be guaranteed.
An emergency egress or primary entry mechanism should always be used (transmitter, fire box, mechanical release).
Consult with your dealer, distributor, and/or system designer for more information.
