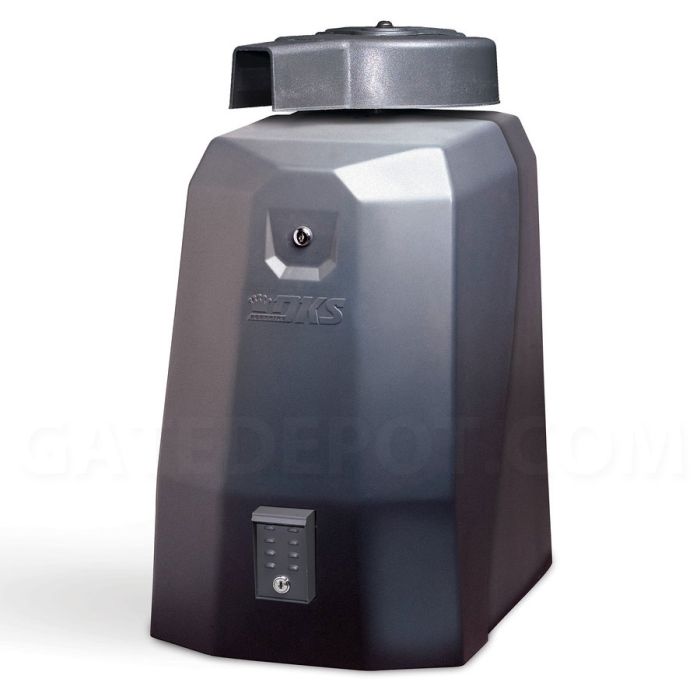

DoorKing 6524 Swing Gate Operator - 115VAC

Be the first to review this product
• 16' x 800 Lbs • 115/230VAC Power Source or 24VDC Solar Ready • 24VDC Operating Voltage • Opens 90° ~ 16 Seconds • Continuous Duty • 24VDC Battery Backup System w/ (2) 7.2 Ah Batteries • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time

From $2,659.00

To $3,822.75

SKU
DKS-6524-vac-bundle
Add to Wish List Add to Compare
main product photo
VIEW MANUALS, BROCHURES & VIDEOS
Customize DoorKing 6524 Swing Gate Operator - 115VAC
For Bi-Parting Gates, Order 2 Operators
• 16' x 800 Lbs • 115/230VAC Power Source or 24VDC Solar Ready • 24VDC Operating Voltage • Opens 90° ~ 16 Seconds • Continuous Duty • 24VDC Battery Backup System w/ (2) 7.2 Ah Batteries • 5-Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED • MADE IN USA • 3-5 Day Lead Time
DKS-6524-380 6524-380

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options
• 45 Ft. Range • 12-30V AC/DC • Weatherproof IP66 Housing • ETL UL325-2016 Compliant • 1-Year Manufacturer Warranty
SCL-e-936-s45rrgq E-936-S45RRGQ
• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch
LFM-811lmx-mc 811LMX-MC
• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty
LFM-850lm-mc 850LM-MC
• Surface Mount • Use cell phone or keypad for entry • Stores up to 400 codes, 4 or 5 digit • Program from the keypad or from an Android Smartphone with the DKS Manager App • Wrong code lockout settable from 3-9 tries and 1-9 minutes • Low power mode for solar applications • Single Form C dry contact relay • Operates on 12 to 24 volt AC or DC power • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time
DKS-1515-081 1515-081
• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys
LFM-kpw250-mc KPW250-MC
• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys
LFM-kpw5-mc KPW5-MC
• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA
EMX-2805-1 EMX-2805-1
• 120VAC hardwired, single circuit, parallel connection • Protects against power surges and spikes
DTK-120-hw DTK-120-HW
• 7.5 Amp Fuse and Fuse Holder • For 1/2 HP Single Gate Operators
DGT-fuse-7.5 FUSE-7.5
• 10 Amp Fuse and Fuse Holder • For Dual Gate Operators, Install in the Master Unit
DGT-fuse-10 FUSE-10

* Required Fields

Your Customization
DoorKing 6524 115VAC Swing Gate Operator
DoorKing 6524 Swing Gate Operator - 115VAC

In stock

$2,659.00

Summary

    Product Details

    The new DKS 6524 Swing Gate Operator keeps running when AC power has been lost. The solar power version is ideal in applications where AC power is unavailable and allows you to add your own solar system for power, or you can choose the DKS solar kit. This swinmg gate operator offers convenience, reliability and safe operation in a small, compact design and is ideally suited for residential or commercial applications. The 1/2 HP Quadra Drive DC Motor provides powerful and long lasting operation and is backed up with built-in 7.2 Ah batteries to provide operation if AC power is interrupted. For longer backup operation, optional 18 Ah batteries can be chosen for up to 150 gate cycles*. The 6524 features a pully / belt drive 60:1 worm gear-box reduction system to provide powerful, yet extremely quiet, swing gate operation. The 6524 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, the DKS Model 6524 provides everything you expect from a gate operator in this class and more.

    *Assumes a 16 foot gate weighing 800 Lbs. Other external factors (temperature, charge state of batteries, gate weight, gate length, etc.) will affect the performance of the gate operator and may reduce the number of cycles shown.

    *Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

    • Heavy-duty gearbox
    • Heavy-duty steel frame provides strength and quiet operation
    • 7.2 Ah batteries standard; 18 Ah batteries optional
    • Easy adjustable electronic magnetic limit switches
    • Auto-close timer 1-30 seconds
    • Gate overlap feature for dual (bi-parting) gate operation
    • Selectable shadow/reverse loop function
    • DC Power Shut-Off switch
    • Battery protection circuit
    • Ports for plug-in open and reverse loop detectors —DKS detectors only
    • Gate Tracker reporting output provides operator data to access control system (DKS 1833, 1835, 1837 or 1838 only)
    • 115 VAC Convenience outlets
    • AC Power Shut-Off switch
    • Magnetic lock power
    • Maximum gate width 16-ft.
    • Maximum gate weight 800 pounds*. (*Assumes gate swings in a level arc, in good condition with properly adjusted hardware.)
    • Includes 50' of RS 485 interconnection cable for bi-parting (dual) gate operation
    • 115 / 230 VAC input: 1.8A / 0.9A.
    • Class I, II, III and IV applications
    • Compliant with UL 325 and 991, ETL Listed
    • Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator

    Options

    • 18 Ah batteries
    • Primary / secondary connection cable
    • Uphill arm pivot assembly and torsion rod assembly
    • Plug-in loop detectors
    • Heater kit for cold environments
    • Surge suppressors

    MADE IN USA

    Specification
    Specifiction
    Brand Doorking
    Accessories

    Showcased Accessories

    • Gate Locks
    • Gate Operator Accessories
    • Stand-Alone Access Control
    • Multiple Unit / Access Point Control Systems
    • Radio Remotes
    • Push Buttons & Switches
    • Emergency Access
    • Loop Detectors
    • Loops
    • Photo Eyes
    • Safety Edges
    • Wire & Cable
    • Traffic Spikes
    • Gate Operator Replacement Parts
    • All Products
    • Google Feed
    Manuals & Resources

    Product Manuals

    doorking-6524-ac-manual_2021-10_Rev_E (5.72 MB)
    doorking-6524-ac-manual_2020-12_Rev_D (5.72 MB)
    doorking-6524-ac-manual_2018-07_Rev_U (4.81 MB)
    doorking-6524-ac-manual_2018-05_Rev_T (4.81 MB)
    doorking-6524-ac-manual_2017-12_Rev_R (4.52 MB)
    doorking-6524-ac-manual_2017-03_Rev_K (4.52 MB)
    doorking-6524-ac-manual_2015-04_Rev_D (4.49 MB)

    Product Brochures

    doorking-6050-6100-6300-6500-6524-6550-6555-brochure_2023-02 (2.07 MB)
    doorking-6524-9024-brochure_2020-08 (3.99 MB)
    doorking-gate-hardware-brochure_2023-02 (4.08 MB)
    doorking-6524-brochure-2020-06 (1.62 MB)

    Additional Resources

    doorking-perimeter-access-management-solutions_2019-04_Rev_Z (14.25 MB)
    doorking-grounding-and-surge-protection_2006_Rev_D-4 (355.36 kB)

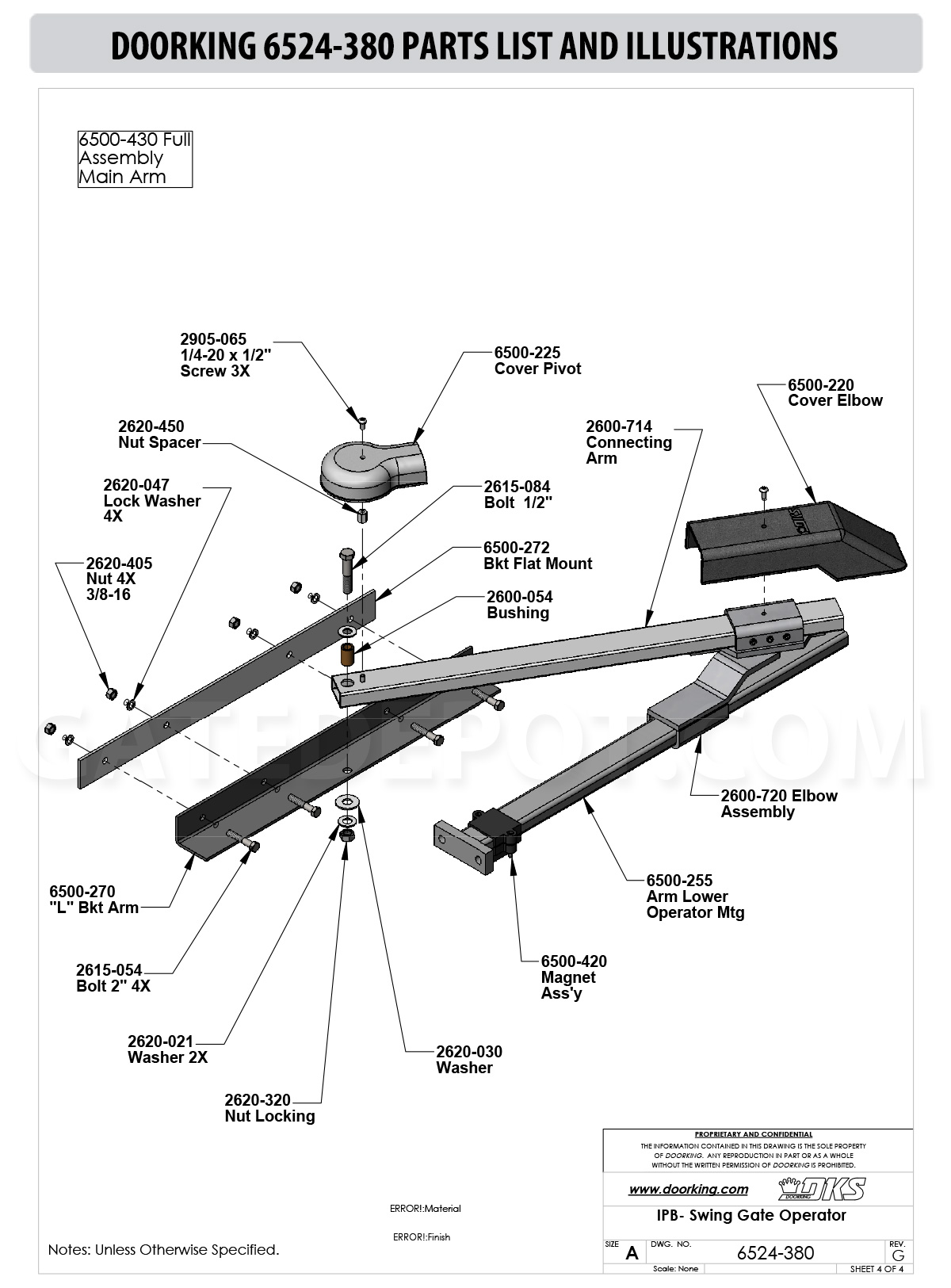

    doorking-6524-380-IPB_2019-01_Rev_G (1.44 MB)
    Replacement Parts
      48====
    1. DoorKing 1506-071 Entrapment Alarm Buzzer
      DoorKing 1506-071 Entrapment Alarm Buzzer
      DKS-1506-071 1506-071
      • Tone Generator
      • 3-5 Day Lead Time
      See More Details
      $53.50
      2. 48====
    2. DoorKing 1601-007 Terminal - 14 Pin
      DoorKing 1601-007 Terminal - 14 Pin
      DKS-1601-007 1601-007
      • Terminal - 14 Pin
      • 3-5 Day Lead Time
      See More Details
      $46.75
      3. 48====
    3. DoorKing 1601-261 Switch - Magnetic Sensor
      DoorKing 1601-261 Switch - Magnetic Sensor
      DKS-1601-261 1601-261
      • Magnetic Sensor Switch
      • 3-5 Day Lead Time
      See More Details
      $23.50
      4. 48====
    4. DoorKing 1601-263 Switch - Magnetic Sensor Recess Yellow
      DoorKing 1601-263 Switch - Magnetic Sensor Recess Yellow
      DKS-1601-263 1601-263
      • Magnetic Sensor Switch
      • Recess Yellow
      • 3-5 Day Lead Time
      See More Details
      $23.50
      5. 48====
    5. DoorKing 1702-507 Cam - J Hook
      DoorKing 1702-507 Cam - J Hook
      DKS-1702-507 1702-507
      • Cam "J" Hook
      • 3-5 Day Lead Time
      See More Details
      $7.80
      6. 48====
    6. Doorking 1801-003 Battery - 7.2 Ah
      Doorking 1801-003 Battery - 7.2 Ah
      DKS-1801-003 1801-003
      • 7.2 Ah
      • AGM
      • Dimensions: 5-7/8" W x 2.5" D x 10" H
      • 3-5 Day Lead Time
      See More Details
      $97.25
      7. 48====
    7. DoorKing 2600-054 Spacer - 3/4" OD x 1/2" ID x 1-1/8" L
      DoorKing 2600-054 Spacer - 3/4" OD x 1/2" ID x 1-1/8" L
      DKS-2600-054 2600-054
      • Spacer - 3/4" OD x 1/2" ID x 1-1/8" L
      • 3-5 Day Lead Time
      See More Details
      $18.25
      8. 48====
    8. DoorKing 2600-413 Terminal - Block-3 Position
      DoorKing 2600-413 Terminal - Block-3 Position
      DKS-2600-413 2600-413
      • Terminal Block - 3 Position
      • 3-5 Day Lead Time
      See More Details
      $7.80
      9. 48====
    9. DoorKing 2600-414 Terminal - Block-2 Position
      DoorKing 2600-414 Terminal - Block-2 Position
      DKS-2600-414 2600-414
      • Terminal Block - 2 Position
      • 3-5 Day Lead Time
      See More Details
      $14.00
      10. 48====
    10. DoorKing 2600-439 Washer Cup - Brass
      DoorKing 2600-439 Washer Cup - Brass
      DKS-2600-439 2600-439
      • Washer Cup - Brass
      • 3-5 Day Lead Time
      See More Details
      $8.60
      11. 48====
    11. DoorKing 2600-597 Pulley - 13" x 7/8" Cast Iron AK134
      DoorKing 2600-597 Pulley - 13" x 7/8" Cast Iron AK134
      DKS-2600-597 2600-597
      • Pulley - 13" x 7/8" Cast Iron AK134
      • 3-5 Day Lead Time
      See More Details
      $159.50
      12. 48====
    12. DoorKing 2600-714 Connecting Rod - 1" x 2" x 60"
      DoorKing 2600-714 Connecting Rod - 1" x 2" x 60"
      DKS-2600-714 2600-714
      • Connecting Rod - 1" x 2" x 60"
      • 3-5 Day Lead Time
      See More Details
      $77.00
      13. 48====
    13. DoorKing 2600-720 Crank Arm Joint Assembly
      DoorKing 2600-720 Crank Arm Joint Assembly
      DKS-2600-720 2600-720
      • Crank Arm Joint Assembly - Black
      • 3-5 Day Lead Time
      See More Details
      $144.00
      14. 48====
    14. DoorKing 2600-731 Cover - Gasket Switch
      DoorKing 2600-731 Cover - Gasket Switch
      DKS-2600-731 2600-731
      • Gasket Switch Cover
      • 3-5 Day Lead Time
      See More Details
      $6.25
      15. 48====
    15. DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps
      DoorKing 2600-810 Bushing - 7/8" Poke Thru Flaps
      DKS-2600-810 2600-810
      • Bushing - 7/8" Poke Thru Flaps
      • 3-5 Day Lead Time
      See More Details
      $4.45
      16. 48====
    16. DoorKing 2615-052 Bolt - Hex Head - 3/8-16 x 1
      DoorKing 2615-052 Bolt - Hex Head - 3/8-16 x 1
      DKS-2615-052 2615-052
      • Bolt - Hex Head
      • 3/8-16 x 1
      • 3-5 Day Lead Time
      See More Details
      $5.15
      17. 48====
    17. DoorKing 2615-053 Bolt - Hex Head - 3/8-16 x 1-1/4
      DoorKing 2615-053 Bolt - Hex Head - 3/8-16 x 1-1/4
      DKS-2615-053 2615-053
      • Bolt - Hex Head
      • 3/8-16 x 1 1/4
      • 3-5 Day Lead Time
      See More Details
      $5.70
      18. 48====
    18. DoorKing 2615-084 Bolt - Hex Head - 1/2-13 x 2-1/2
      DoorKing 2615-084 Bolt - Hex Head - 1/2-13 x 2-1/2
      DKS-2615-084 2615-084
      • Bolt - Hex Head
      • 1/2-13 x 2 1/2
      • 3-5 Day Lead Time
      See More Details
      $8.25
      19. 48====
    19. DoorKing 2615-086 Bolt - Hex Head - 1/2-13 x 3
      DoorKing 2615-086 Bolt - Hex Head - 1/2-13 x 3
      DKS-2615-086 2615-086
      • Bolt - Hex Head
      • 1/2-13 x 3
      • 3-5 Day Lead Time
      See More Details
      $6.55
      20. 48====
    20. DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4
      DoorKing 2615-153 Bolt - Hex Head - 5/16-18 x 3/4
      DKS-2615-153 2615-153
      • Bolt - Hex Head
      • 5/16-18 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $4.70
      21. 48====
    21. DoorKing 2615-605 Bolt - Carriage - 10-32 x 1/2
      DoorKing 2615-605 Bolt - Carriage - 10-32 x 1/2
      DKS-2615-605 2615-605
      • Bolt - Carriage
      • 10-32 x 1/2
      • 3-5 Day Lead Time
      See More Details
      $7.05
      22. 48====
    22. DoorKing 2615-883 Bolt - Button Socket - 1/2-13 x 1 1/2
      DoorKing 2615-883 Bolt - Button Socket - 1/2-13 x 1 1/2
      DKS-2615-883 2615-883
      • Bolt - Button Socket
      • 1/2-13 x 1 1/2
      • 3-5 Day Lead Time
      See More Details
      $7.10
      23. 48====
    23. DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8
      DoorKing 2616-001 Screw - Phillips Head - 6-32 x 3/8
      DKS-2616-001 2616-001
      • Screw - Phillips Head - 6-32 x 3/8
      • 3-5 Day Lead Time
      See More Details
      $4.35
      24. 48====
    24. DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4
      DoorKing 2616-003 Screw - Phillips Head - 6-32 x 3/4
      DKS-2616-003 2616-003
      • Screw - Phillips Head - 6-32 x 3/4
      • 3-5 Day Lead Time
      See More Details
      $4.50
      25. 48====
    25. DoorKing 2616-051 Screw - Phillips Head - 10-32 x 3/8
      DoorKing 2616-051 Screw - Phillips Head - 10-32 x 3/8
      DKS-2616-051 2616-051
      • Screw - Phillips Head - 10-32 x 3/8
      • 3-5 Day Lead Time
      See More Details
      $4.35
      26. 48====
    26. DoorKing 2620-010 Washer - #10 SAE
      DoorKing 2620-010 Washer - #10 SAE
      DKS-2620-010 2620-010
      • Washer - #10 SAE
      • 3-5 Day Lead Time
      See More Details
      $4.30
      27. 48====
    27. DoorKing 2620-019 Washer - Flat 3/8" SAE
      DoorKing 2620-019 Washer - Flat 3/8" SAE
      DKS-2620-019 2620-019
      • Washer - Flat 3/8" SAE
      • 3-5 Day Lead Time
      See More Details
      $4.35
      28. 48====
    28. DoorKing 2620-021 Washer - 1/2" SAE
      DoorKing 2620-021 Washer - 1/2" SAE
      DKS-2620-021 2620-021
      • Washer - 1/2 " SAE
      • 3-5 Day Lead Time
      See More Details
      $4.50
      29. 48====
    29. DoorKing 2620-028 Washer - 5/16" USS
      DoorKing 2620-028 Washer - 5/16" USS
      DKS-2620-028 2620-028
      • Washer - 5/16" USS
      • 3-5 Day Lead Time
      See More Details
      $4.45
      30. 48====
    30. DoorKing 2620-030 Washer - 1/2" USS
      DoorKing 2620-030 Washer - 1/2" USS
      DKS-2620-030 2620-030
      • Washer - 1/2" USS
      • 3-5 Day Lead Time
      See More Details
      $5.15
      31. 48====
    31. DoorKing 2620-047 Lockwasher - 3/8"
      DoorKing 2620-047 Lockwasher - 3/8"
      DKS-2620-047 2620-047
      • Lockwasher - 3/8"
      • 3-5 Day Lead Time
      See More Details
      $4.45
      32. 48====
    32. DoorKing 2620-050 Lockwasher - 1/2"
      DoorKing 2620-050 Lockwasher - 1/2"
      DKS-2620-050 2620-050
      • Lockwasher - 1/2"
      • 3-5 Day Lead Time
      See More Details
      $4.70
      33. 48====
    33. DoorKing 2620-109 Split Lockwasher - 1/4"
      DoorKing 2620-109 Split Lockwasher - 1/4"
      DKS-2620-109 2620-109
      • Split Lockwasher - 1/4"
      • 3-5 Day Lead Time
      See More Details
      $4.35
      34. 48====
    34. DoorKing 2620-320 Nut - Center Lock - 1/2-13
      DoorKing 2620-320 Nut - Center Lock - 1/2-13
      DKS-2620-320 2620-320
      • Nut - Center Lock - 1/2-13
      • 3-5 Day Lead Time
      See More Details
      $5.10
      35. 48====
    35. DoorKing 2620-405 Nut - Hex - 3/8-16
      DoorKing 2620-405 Nut - Hex - 3/8-16
      DKS-2620-405 2620-405
      • Nut - Hex - 3/8-16
      • 3-5 Day Lead Time
      See More Details
      $4.50
      36. 48====
    36. DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18
      DoorKing 2620-411 Nut - Hex Flange Lock - 5/16-18
      DKS-2620-411 2620-411
      • Nut - Hex Flange Lock - 5/16-18
      • 3-5 Day Lead Time
      See More Details
      $4.75
      37. 48====
    37. DoorKing 2620-420 Nut - Hex - 1/2-13
      DoorKing 2620-420 Nut - Hex - 1/2-13
      DKS-2620-420 2620-420
      • Nut - Hex - 1/2-13
      • 3-5 Day Lead Time
      See More Details
      $4.95
      38. 48====
    38. DoorKing 2902-003 Nut - Nylon Lock - 6-32
      DoorKing 2902-003 Nut - Nylon Lock - 6-32
      DKS-2902-003 2902-003
      • Nut - Nylon Lock - 6-32
      • 3-5 Day Lead Time
      See More Details
      $4.45
      39. 48====
    39. DoorKing 2902-006 Nut - Nylon Lock - 10-32
      DoorKing 2902-006 Nut - Nylon Lock - 10-32
      DKS-2902-006 2902-006
      • Nut - Nylon Lock - 10-32
      • 3-5 Day Lead Time
      See More Details
      $4.40
      40. 48====
    40. DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green
      DoorKing 2902-010 Nut - Nylon Lock - 8-32 Green
      DKS-2902-010 2902-010
      • Nut - Nylon Lock - 8-32 Green
      • 3-5 Day Lead Time
      See More Details
      $5.65
      41. 48====
    41. DoorKing 3129-002 Cover - Terminal Block 2 Position
      DoorKing 3129-002 Cover - Terminal Block 2 Position
      DKS-3129-002 3129-002
      • Terminal Block Cover - 2 Position
      • 3-5 Day Lead Time
      See More Details
      $19.00
      42. 48====
    42. DoorKing 4001-035
      DoorKing 4001-035 Lock & Keys
      DKS-4001-035 4001-035
      • Lock N16058BDxSFx2K Key 16120
      • Includes Lock & 2 Keys
      • 3-5 Day Lead Time
      See More Details
      $37.00
      43. 48====
    43. DoorKing 4100-012 Control Board
      DoorKing 4100-012 Control Board
      DKS-4100-012 4100-012
      • Pre-2018 Replacement Circuit Board
      • For 6524
      • 3-5 Day Lead Time
      • Circuit Boards are Non Returnable
      See More Details
      $404.25
      44. 48====
    44. DoorKing 6500-047 Belt - 47 4L470
      DoorKing 6500-047 Belt - 47 4L470
      DKS-6500-047 6500-047
      • Belt - 47 4L470
      • 3-5 Day Lead Time
      See More Details
      $70.00
      45. 48====
    45. DoorKing 6500-200 Hub Clutch Release Tool
      DoorKing 6500-200 Hub Clutch Release Tool
      DKS-6500-200 6500-200
      • Hub Clutch Release Tool
      • 3-5 Day Lead Time
      See More Details
      $32.75
      46. 48====
    46. DoorKing 6500-400 Hub Sub Assembly - 1/2 HP
      DoorKing 6500-400 Hub Sub Assembly - 1/2 HP
      DKS-6500-400 6500-400
      • Hub Sub Assembly - 1/2 HP
      • 3-5 Day Lead Time
      See More Details
      $535.00
      47. 48====
    47. DoorKing 6500-430 Sub Assembly - Arm Main
      DoorKing 6500-430 Sub Assembly - Arm Main
      DKS-6500-430 6500-430
      • Main Arm Sub Assembly
      • 3-5 Day Lead Time
      See More Details
      $557.00
      48. 48====
    48. DoorKing 6500-440 Sub Assembly - Cover Turret
      DoorKing 6500-440 Sub Assembly - Cover Turret
      DKS-6500-440 6500-440
      • Sub Assembly - Cover Turret
      • 3-5 Day Lead Time
      See More Details
      $246.25
    Reviews
    Write Your Own Review
    Only registered users can write reviews. Please Sign in or create an account

    Cancel Continue Shopping
    @ Copyright 2021 Gate Depot @ Martrano Enterprises, LLC All rights reserved. No part of this site can be reproduced in any form or by any means, mechanical or electronic, without the prior written consent of Gate Depot
