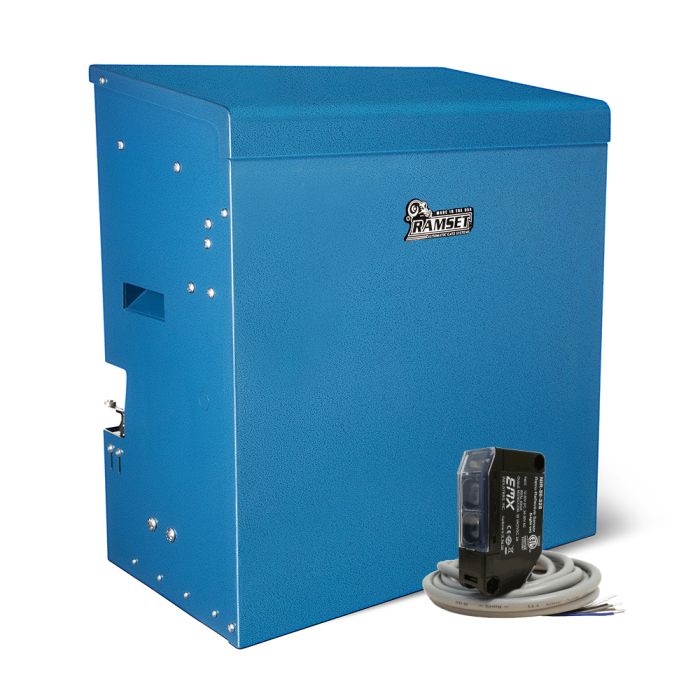

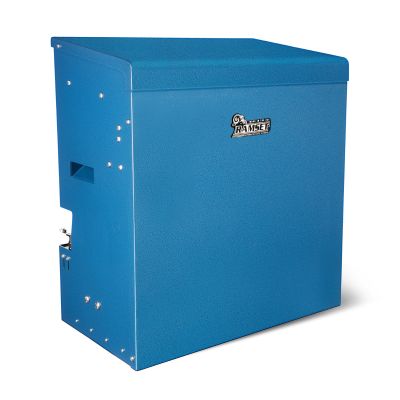

Ramset ALL SECURE DC Rail Slide Operators
Available w/ Photo Eye
• Infinite Length x 8,000 Lbs
• 115VAC Power Source / 24VDC Operational Voltage
• Opens ~ 12" per Second
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Emergency Foot Pedal Release
• MADE IN USA
•Ramset Products Have a 15% Restock Fee
From $8,899.00
To $18,974.85
SKU
RAM-all-secure-dc-bundle
Product Details
Features
- ETL Listed: Our gate operators have been rigorously tested to meet the strict safety standards set forth by the UL 325 industry guidelines. To comply with these standards, external entrapment protection devices will be required. Your installer will recommend the appropriate amount and types of devices based on your specific installation
- Battery Backup: In the event of a loss of power that gate operator will go into battery mode. This allows your gate to continue to operate for a limited period of time, until power is restored
- Fail Safe/ Fail Secure: When the battery reaches 90% of its capacity and AC power remains unavailable, our system offers you the flexibility to choose the gate's fail position. The gate will either fail in the open or closed position, depending on your needs
- Slow Start/Soft Stop: Allows for a smooth gate operation without abrupts stops or harsh start
- Emergency Foot Pedal: Ability to manually open you gate in case of an emergency
- Left/ Right Switch: Makes it easy to change the direction of the installation
- One pass: Allows for gate to close immediately upon entrance
- Close Delay: Adjustable timer for self closing
- EP Learn: Helps with the process of setting up photo eyes, by memorizing the distance of travel
- Smart home compatible: Our relay connection makes it easy to connect your operator to external devices
- Multiple Accessory Usage: Connect up to 11 external devices
Specifications
- Class: Commercial/ Industrial
- Max Gate Weight: 8,000 lbs
- Max Gate Length: Infinite
- Motor: "BRUSHLESS 24 VDC, 25 AMPS"
- Gate Speed: 12" per Second
- VAC: 115- Single phase/ 230 VAC
- Battery Backup System: (2) 7Ah 12VDC Batteries
- W x L x H: 17.5" x 23.5" x 27.5"
Warranty Information
For single Family Residential installations: uninterrupted seven (7) years on motor and gearbox and uninterrupted five (5) years on the logic and driver board of the gate operator from the date of purchase.
For commercial properties, apartment buildings, condominium buildings, townhomes, and other multi-family residences: uninterrupted five (5) years on motor, gearbox, logic board and driver board of the gate operator from the date of purchase.
| Brand | Ramset |
|---|
Showcased Accessories
- Slide Gate Hardware
- Gate Locks
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Power Supplies
- All Products
- Google Feed
Product Manuals

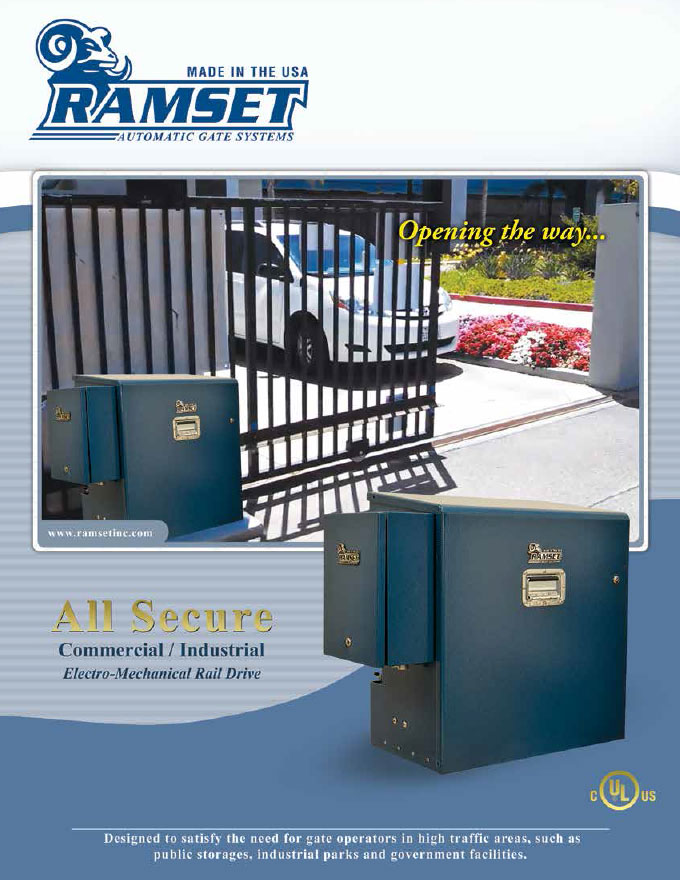

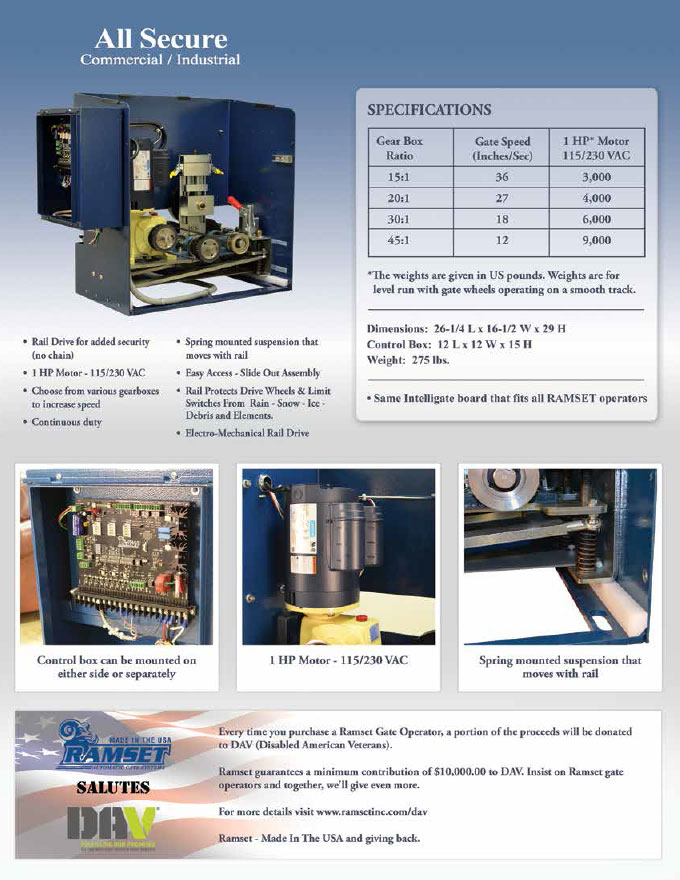

Product Brochures
-
