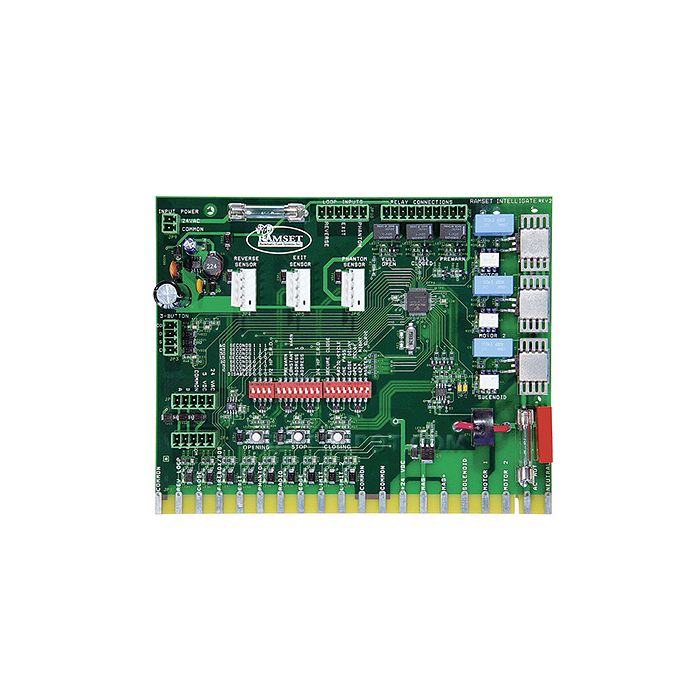

Ramset 800-63-00-INTL Intelligate Control Board - Pre 2016

The intelligate control board was designed to work in all Ramset model operators. It is a state-of-the-art microprocessor controlled PCB with more options and functions than any other gate operator control board in the industry. The control board is powered by a separate mounted 24V AC transformer. This allows no necessary board modifications between 110V AC and 220V AC single-phase applications. Some of the functions of the Intelligate control board are: 0-60 seconds automatic close timer, self adjusting ERD with low and high settings, constant warning, pre-warning, one pass, open & close delay, left/right hand operation, plug-in loop detectors and RS485 three wire master/slave connection.

• Automatic Timer
• One Pass, ERD Sensitivity Adjustments
• Left/Right Hand Switch Adjustment
• Plug-In Loop Detector (ILD-24s) Capability
• 3-Wire Master/Slave Synchronization Cable
• Pre-Warn & Constant Warn
• Secure Close
• Open & Close Delay
• Relay Connection & Service Push Buttons
• Radio Cycle
