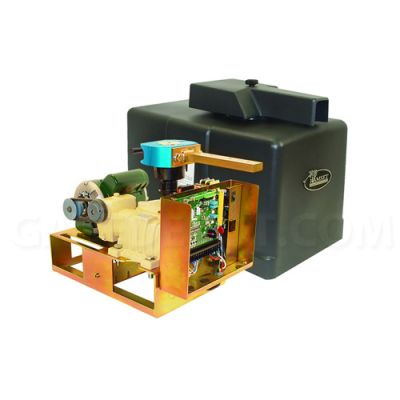

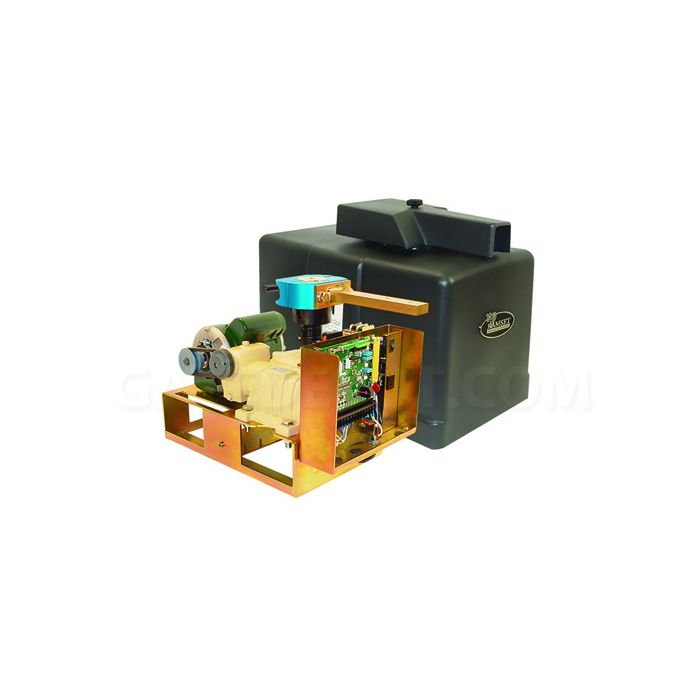

Ramset Model 302 UL Swing Gate Operator - 1/2 HP
From $1,719.00
To $4,053.70
Product Details
Electric Motor: 1/2 Hp, 120VAC, 4.5 amp, 50/60Hz, with high speed ball bearings and resettable overload button
Heavy Duty Worm Gear: Lubricated in an oil bath for smooth and quiet operation
Heavy Duty Torque-limiter: Absorbs high impacts on gates to minimize damage on gear reducer
Finish: Gold/Zinc plated to inhibit corrosion
Cover: High-impact resistant charcoal gray polyethylene with a stainless steel access door
Cover Dimensions: 16-1/2" H x 23" L x 13-1/2" W
Features
- Automatic close timer
- Pre-warning alarm relays
- Manual or self adjusting ERD
- Dual gate communication capability
- Secure close
- Anti-tailgating/One pass system
- Radio cycle (open, stop & close)
- Open & close delays
- Indicator lights for easy troubleshooting
- Plug in loop detectors
- Left/Right installation switch
- Optional Battery Backup System
- MADE IN USA
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) AND Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
| Brand | Ramset |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Power Supplies
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
5====
-
Ramset 800-02-09 Gear Reducer - Size 70 / Ratio 900:1RAM-800-02-09 800-02-09• Gear Reducer - Size 70, Ratio 900:1See More Details
• For 302
•Ramset Products Have a 15% Restock Fee$539.95
5==== -
Ramset 800-04-10 Motor - 1/2 HP 120VAC / StandardRAM-800-04-10 800-04-10• Motor, Standard - 120VAC 1/2 HPSee More Details
• For 300, 302, 2000 Series, 3000 Series, 5000
•Ramset Products Have a 15% Restock Fee$250.95
5==== -
Ramset 800-63-00-INTL Intelligate Control Board - Pre 2016RAM-800-63-00-intl 800-63-00-INTL• Replacement Control Board for all Ramset Gate OperatorsSee More Details
• International pre UL325 / 2016
• Circuit Boards are Non Returnable$419.95
5==== -
Ramset 800-75-00 Arm AssemblyRAM-800-75-00 800-75-00• Arm AssemblySee More Details
• For 30, 300, 302, 3000 Series
•Ramset Products Have a 15% Restock Fee$95.80
5==== -
Ramset 800-75-50 Clamp Release AssemblyRAM-800-75-50 800-75-50• Clamp Release AssemblySee More Details
• For 302, 3000 Series
•Ramset Products Have a 15% Restock Fee$120.10
