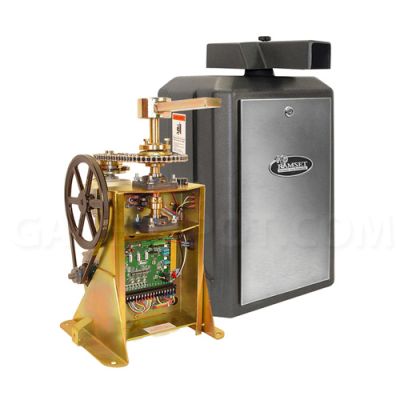

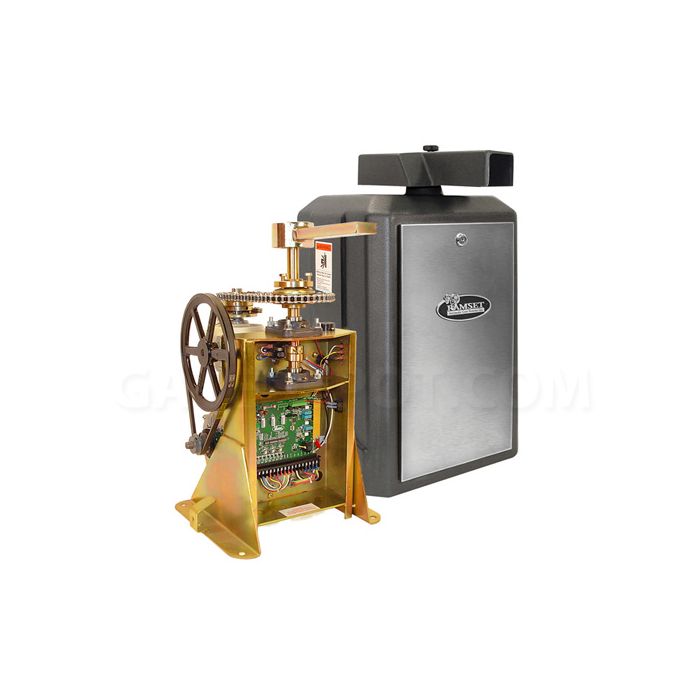

Ramset Model 300 UL Swing Gate Operator - 1/2 HP
From $1,759.00
To $4,133.70
Product Details
Emergency Foot Pedal Release: This mechanism disengages the gate from the operator to allow easy manual opening and closing of the gate during power outages and emergencies
Electric Motor: 1/2 Hp, 115VAC, 4.5 amp, continuous duty with high speed ball bearings and resettable overload button
Heavy Duty Worm Gear: Lubricated in an oil bath for smooth and quiet operation
Heavy Duty Torque-limiter: Absorbs high impacts on gates to minimize damage on gear reducer
Finish: Gold/Zinc plated to inhibit corrosion
Cover: High-impact resistant charcoal gray polyethylene with a stainless steel access door
Cover Dimensions: 27" H x 16-1/2" L x 20" W
For Compact installs the arms must be cut down to size
Features
- Automatic close timer
- Pre-warning alarm relays
- Manual or self adjusting ERD
- Dual gate communication capability
- Secure close
- Anti-tailgating/One pass system
- Radio cycle (open, stop & close)
- Open & close delays
- Indicator lights for easy troubleshooting
- Plug in loop detectors
- Left/Right installation switch
- Optional Battery Backup System
- MADE IN USA
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) AND Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
