Ramset Model 1000 UL Slide Gate Operator - 1/2 HP

Be the first to review this product

Available w/ Ramset Photo Eyes • 45' x 1,000 Lbs • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 12" per Second • Continuous Duty • 10 / 7-Year Limited Manufacturer Warranty • MADE IN USA •Ramset Products Have a 15% Restock Fee

From $1,789.00

To $3,914.85

SKU

RAM-1000-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize Ramset Model 1000 UL Slide Gate Operator - 1/2 HP

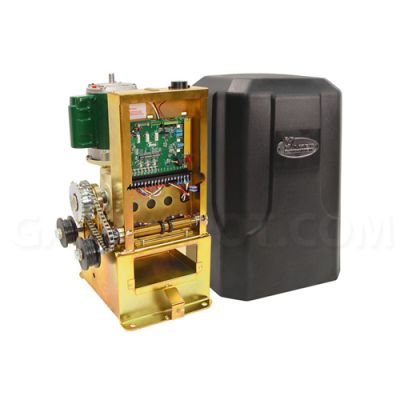

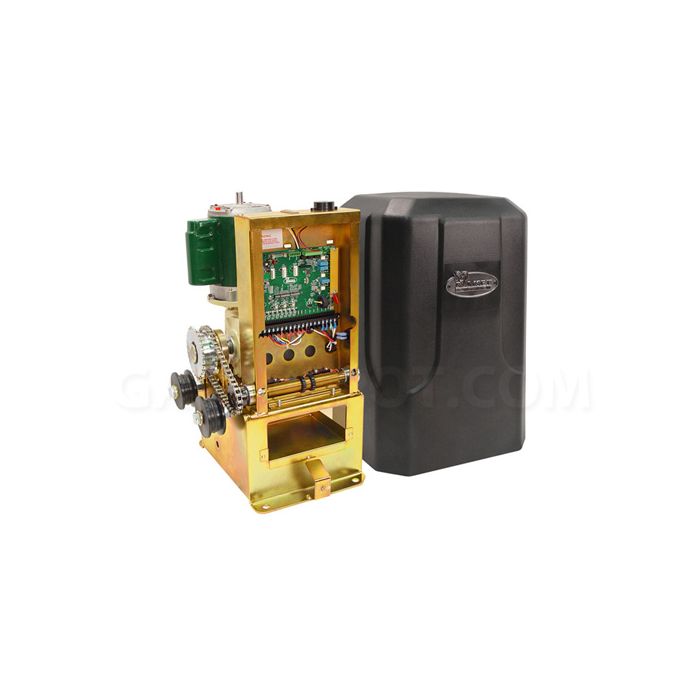

Ramset Model 1000 UL 1/2 HP Slide Gate Operator

Ramset 800-97-03 RAM 1000 Slide Gate Operator - 1/2 HP w/ Photo Eye $1,789.00

• 45' x 1,000 Lbs w/ Photo Eye • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 12" per Second • Continuous Duty • 10 / 7-Year Limited Manufacturer Warranty • MADE IN USA •Ramset Products Have a 15% Restock Fee

GD# RAM-800-97-03 MFR# 800-97-03

Quantity

Ramset 800-96-03 RAM 1000 Slide Gate Operator - 1/2 HP / No Photo Eye $1,649.00

• 45' x 1,000 Lbs - No Photo Eye • 115VAC Power Source / 115VAC Operating Voltage • Opens ~ 12" per Second • Continuous Duty • 10 / 7-Year Limited Manufacturer Warranty • MADE IN USA •Ramset Products Have a 15% Restock Fee

GD# RAM-800-96-03 MFR# 800-96-03

Quantity

Photo Eye

Seco-Larm E-931-S50RRGQ Enforcer IR Reflective Photo Eye - 50' $77.15

• 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • Includes Hooded Reflector • 1-Year Manufacturer Warranty

GD# SCL-e-931-s50rrgq MFR# E-931-S50RRGQ

Quantity

Remote Controls

Select 1 receiver and as many remotes as required. More options in accessories tab below.

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

Keypad

Select a keypad and a power supply. More options in accessories tab below.

EMX 5400-2 KPX 100 Keypad - Weatherproof $156.00

• 100 Users Relay 1 / 10 Users Relay 2 • 12-24VAC/DC • Stainless Steel Faceplate • Metal Backlit Keys • Weatherproof/Vandal Resistant IP66 • Wall, Post or Gooseneck mounting • 2-Year Limited Manufacturer Warranty

GD# EMX-5400-2 MFR# EMX-5400-2

Quantity

MG Electronics MGT-2420 120V-24VAC 20VA Transformer $18.95

• Input: 120V 60Hz • Output: 24VAC ~ 20VA • Class II power supply • 2 ground prong • Two screw terminal output • Individually boxed • LED AC power input indicator • UL and CUL listed

GD# MGE-mgt-2420 MFR# MGT-2420

Quantity

Exit Wand

More options in accessories tab below

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

* Required Fields

Your Customization

Ramset Model 1000 UL 1/2 HP Slide Gate Operator

Ramset Model 1000 UL Slide Gate Operator - 1/2 HP

In stock

Qty

$1,789.00

Summary

Overview

Product Details

Electric Motor: 1/2 Hp, 115VAC, 4.5 amp, 50/60Hz, with high speed ball bearings and resettable overload button

Heavy Duty Worm Gear: Lubricated in an oil bath for smooth and quiet operation

Limit Switches: Mechanical adjustment for accurate gate stop settings

Cover: High-impact resistant charcoal gray polyethylene

Cover Dimensions: 27" H x 16" L x 16-1/2" W

Finish: Gold/Zinc plated to inhibit corrosion

Features

Automatic close timer
Pre-warning alarm relays
Manual or self adjusting ERD
Dual gate communication capability
Secure close
Anti-tailgating/One pass system
Radio cycle (open, stop & close)
Open & close delays
Indicator lights for easy troubleshooting
Plug in loop detectors
Left/Right installation switch
Optional Battery Backup System
MADE IN USA

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) AND Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Specification

Specifiction
Brand	Ramset

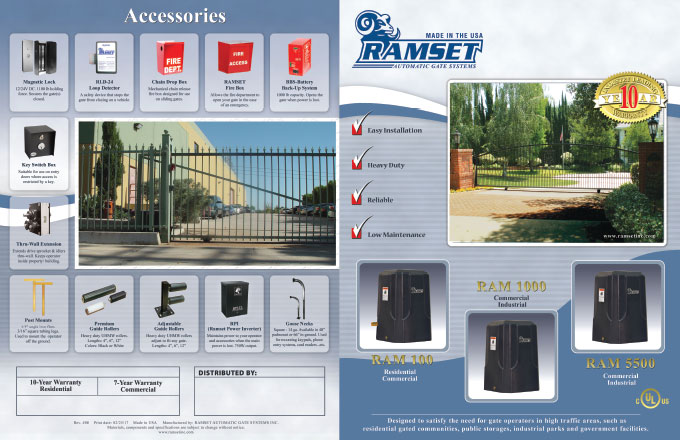

Accessories

Showcased Accessories

Manuals & Resources

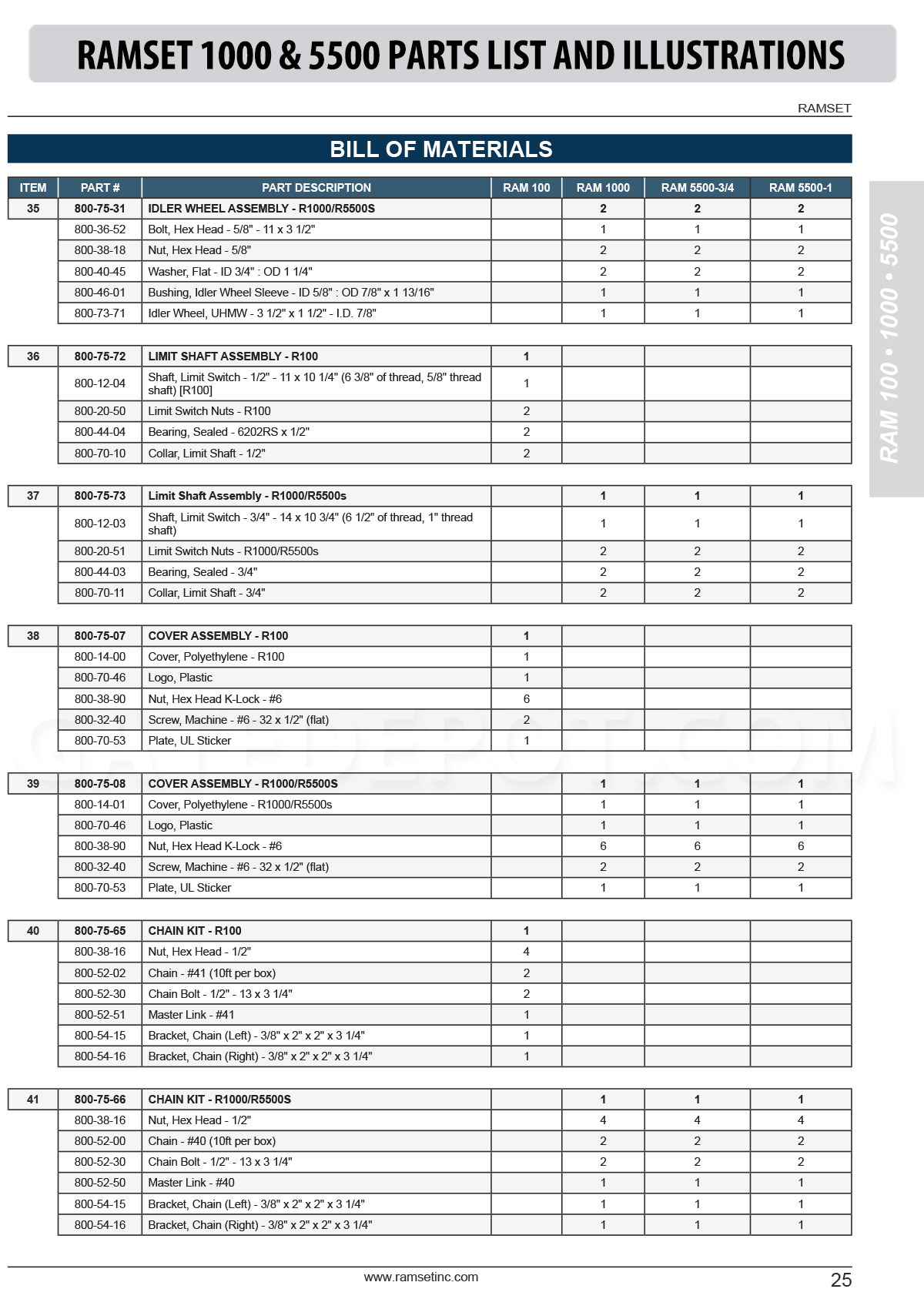

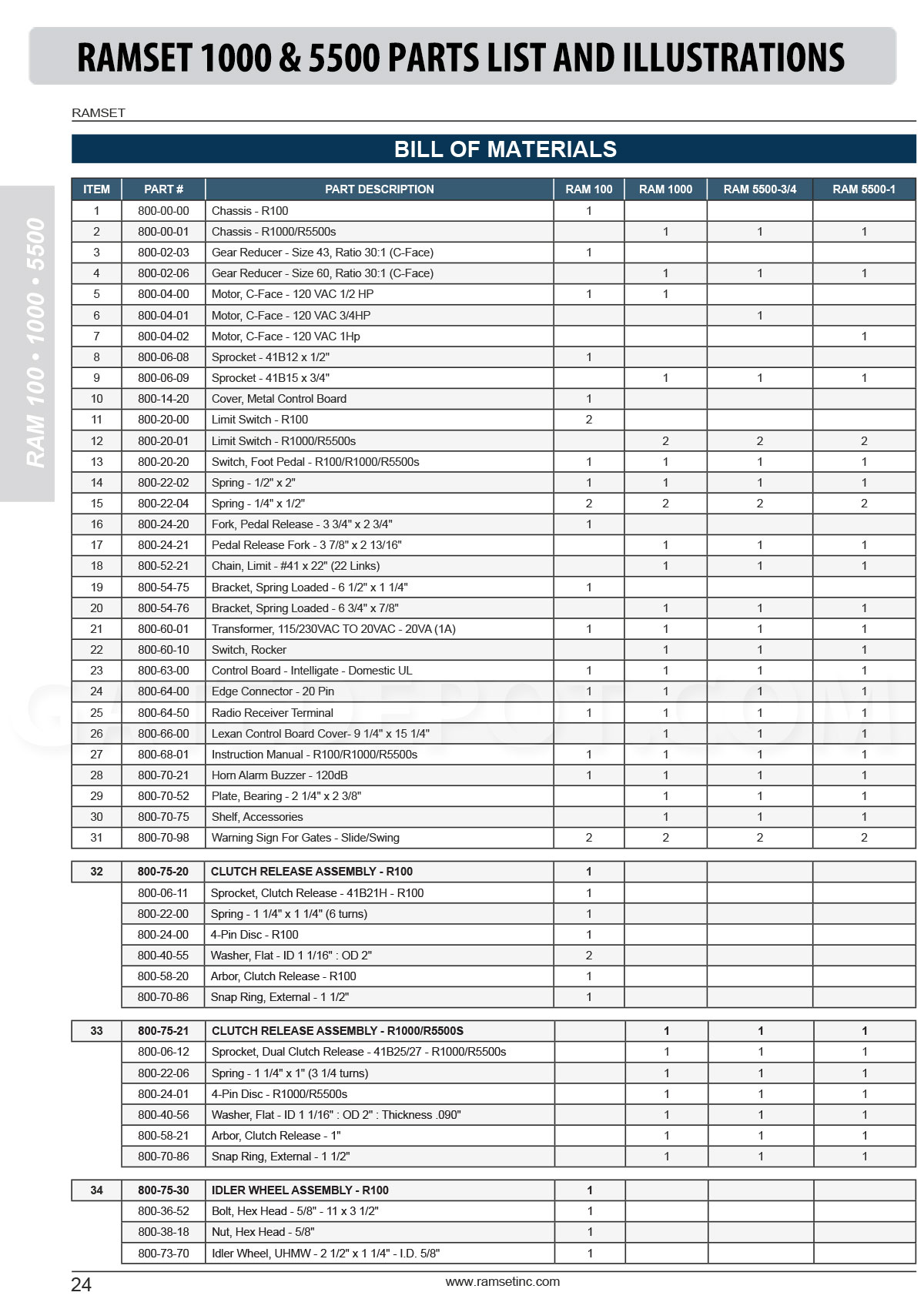

Replacement Parts

Ramset 800-04-00 Motor - 1/2 HP 120VAC / C-Face

GD# RAM-800-04-00 MFR# 800-04-00

• Motor, C-Face - 120 VAC 1/2 HP
• For 100, 1000
•Ramset Products Have a 15% Restock Fee
See More Details

$234.95
Ramset 800-63-00-INTL Intelligate Control Board - Pre 2016

GD# RAM-800-63-00-intl MFR# 800-63-00-INTL

• Replacement Control Board for all Ramset Gate Operators
• International pre UL325 / 2016
• Circuit Boards are Non Returnable
See More Details

$419.95
Ramset 800-75-21 Clutch Assembly

GD# RAM-800-75-21 MFR# 800-75-21

• Clutch Assembly
• For 1000, 5500
•Ramset Products Have a 15% Restock Fee
See More Details

$105.90
Ramset 800-75-73 Limit Shaft Assembly

GD# RAM-800-75-73 MFR# 800-75-73

• Limit Shaft Assembly
• For 1000, 5500
•Ramset Products Have a 15% Restock Fee
See More Details

$88.95
