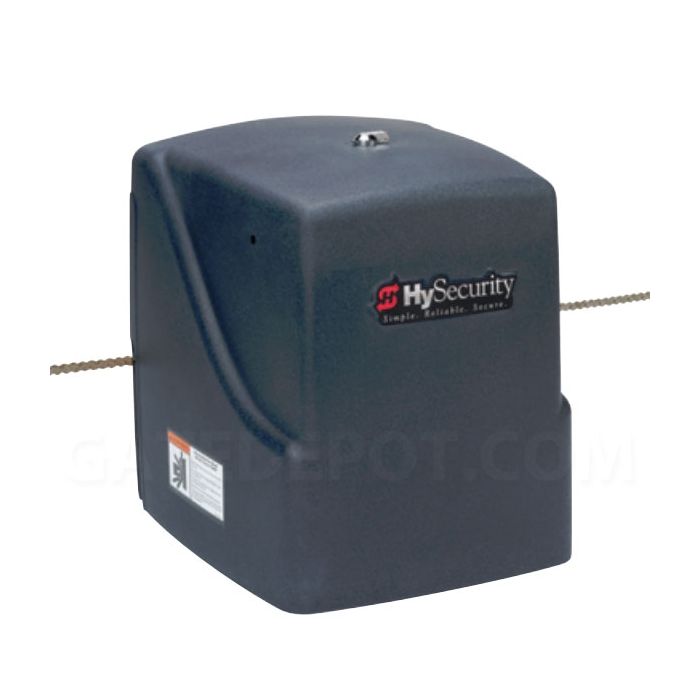

Nice HySecurity SLIDESMART-DC-10F Slide Gate Operator
Choose AC or Solar
• 40' x 1,000 Lbs
• 115/208/230VAC Power Source or 24VDC Solar
• 24VDC Operational Voltage
• Opens 1-3/4', 2' or 2-1/4' per Second
• Continuous Duty
• 24VDC Battery Backup System w/ Two 8Ah Batteries
• Up To 4,000' of gate travel on Battery Backup Operation
• Includes EMX IRB-MON Photo Eye, 5' ASO Edge Sensor/Hy2NC Adapter
• 5-Year Limited Manufacturer Warranty
• 3-4 Week Lead Time
• MADE IN USA
• No Additional Tariff Fees
From $3,320.00
To $8,790.70
SKU
HYS-slidesmart-dc-10f-bundle
Product Details
- Duty Cycle: Continuous
- Drive: Electromechanical
- Rate of Travel: 1.75, 2 or 2.25 ft/s (53, 61 or 69 cm/s) Open/Close speed set independently
- Gate Length Maximum: 40 ft (12 m)
- Gate Weight Maximum: 1,000 lb (453 kg)
- Pull Force: 200 lb (90.7 kg)
- UPS Battery Backup Cycles: Field confi gurable to fail open or secure when batteries deplete. Standard battery backup gate travel: Two 8Ah batteries. Up to 4,000 ft (1,219 m) after AC power loss. Extended battery backup gate travel: Two 50Ah batteries. Up to 25,000 ft (7,620 m) after AC power loss.
- Temperature Rating: -13° to 158° F (-25° to 70° C)
- Operating Voltage: 24VDC
- Input Voltage - VAC: 115V or 208-230V 60/50Hz

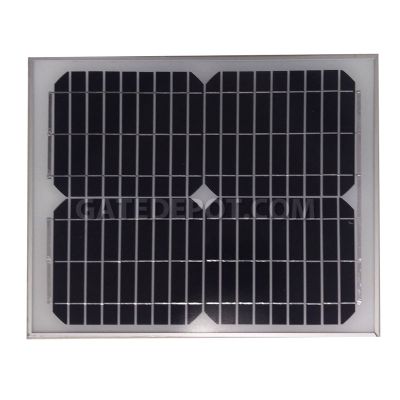

- Input Voltage - Solar: 24VDC solar panels - 40W min panel
- Accessory Power: 12VDC and 24VDC 1A each
- Included Accessories: 30 ft (9 m) of #40 corrosion resistant roller chain, two steel gate mounting brackets, one premium EMX IRB-MON photo eye, one 5-foot premium ASO edge sensor and a pre-wired Hy2NC adapter
- Communication: USB, RS-232, RS-485
- User Controls: Smart DC Controller with 70+ confi gurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
- Relays: Two confi gurable user relays: 30VDC, 3A solid state and 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
- Finish: Zinc plated chassis; molded polyethylene cover
- ETL Listed (UL 325): Usage Class III, IV only
- Cycle Tested: 500,000 cycles
- Warranty: 5 year (7 year single-family residential) w/product registration
| Brand | Nice HySecurity |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Emergency Access
- Loop Detectors
- Loops
- All Products
- Google Feed

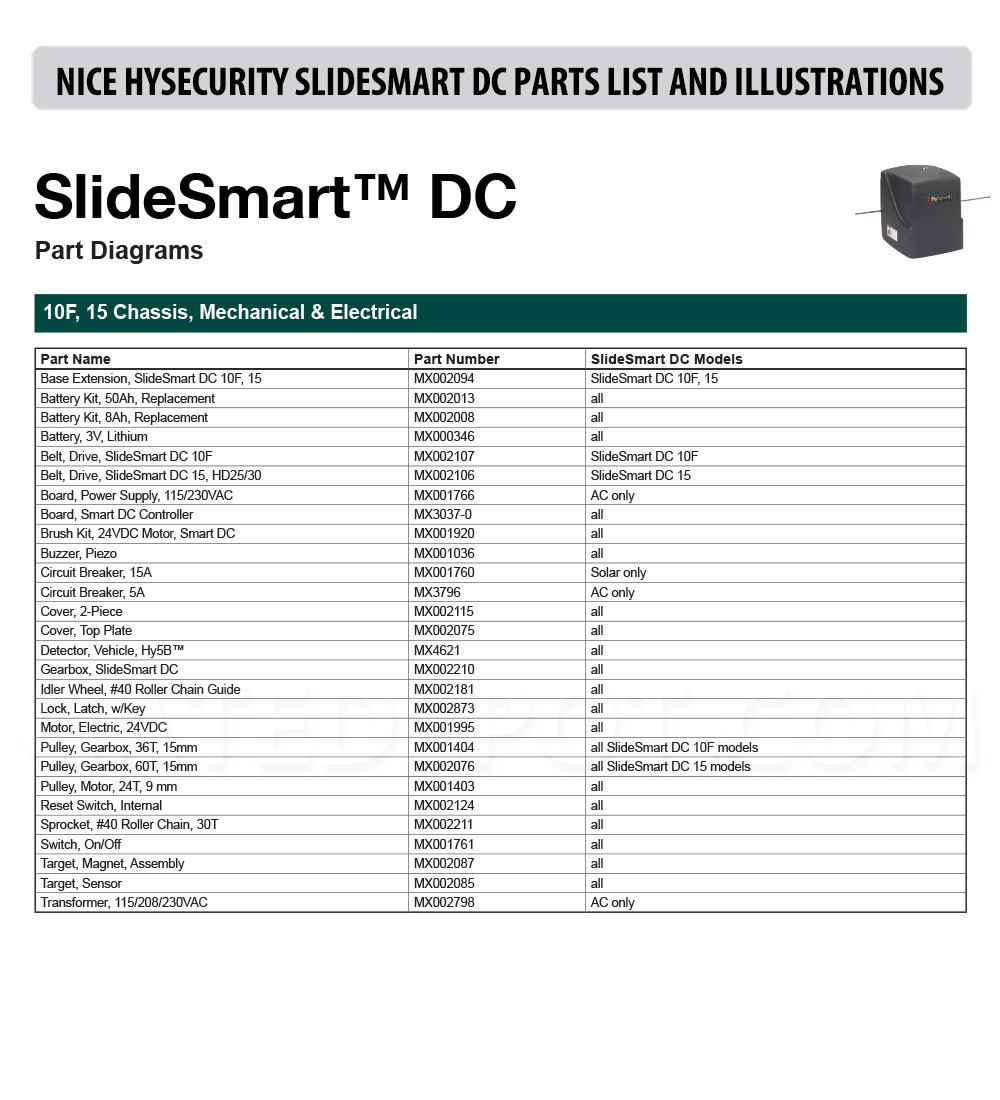

Product Manuals

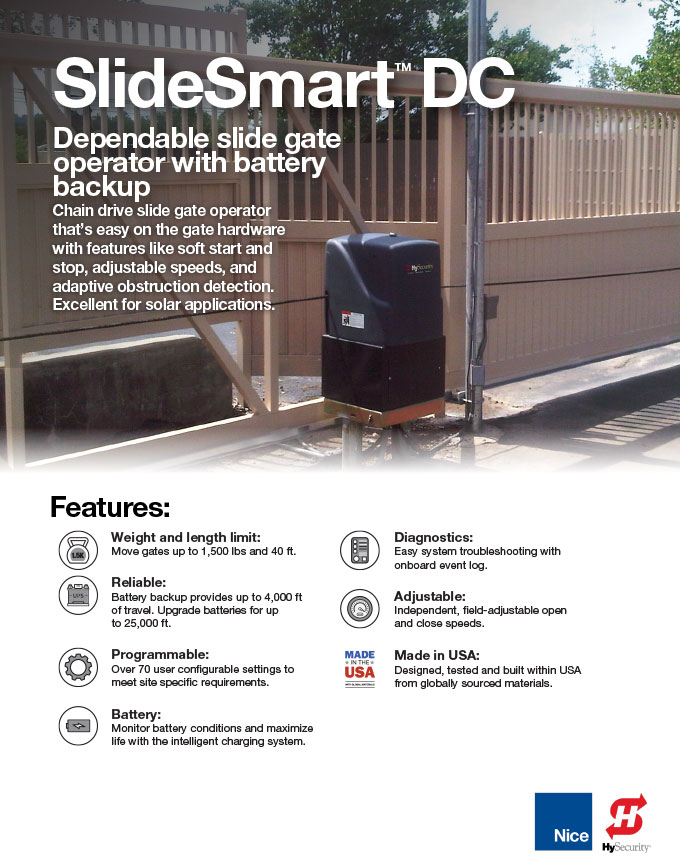

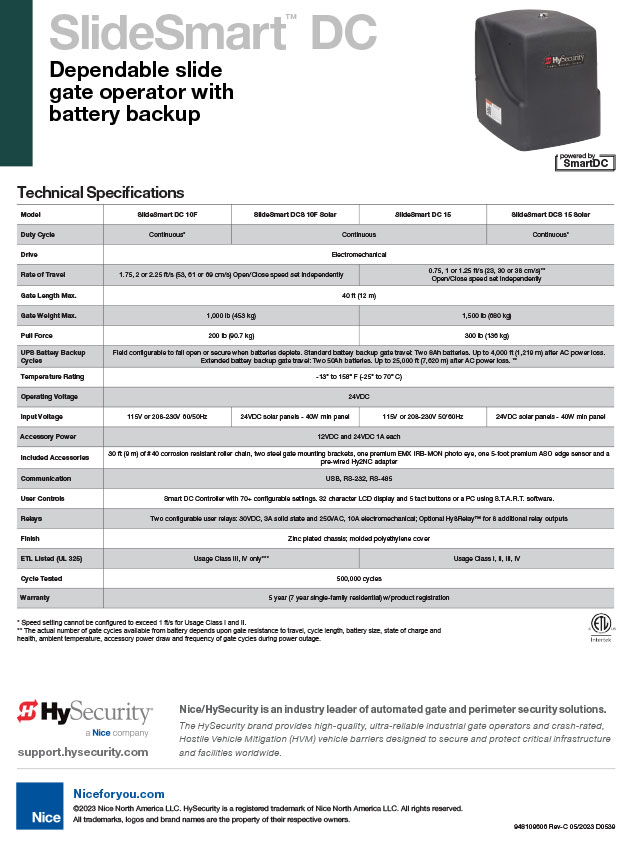

Product Brochures
Additional Resources
-
32====
-
Nice HySecurity MX000346 Lithium Battery - 3VHYS-mx000346 MX000346• Controller Battery, 3 Volt, LithiumSee More Details
• For Smart Touch Controller / Smart Touch DC Controller
• For StrongArm | SlideDriver | SwingRiser
• 3-4 Week Lead Time
• No Additional Tariff Fees$8.50
32==== -
Nice HySecurity MX001036 Piezo BuzzerHYS-mx001036 MX001036• Alarm, Piezo Buzzer, "warn before operate"See More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$66.00
32==== -
Nice HySecurity MX001179 Antenna and Coax CableHYS-mx001179 MX001179• Radio Antenna and Coax CableSee More Details
• For single and dual channel receivers
• 3-4 Week Lead Time
• No Additional Tariff Fees$61.25
32==== -
Nice HySecurity MX001403 Pulley - Drive Belt / 24THYS-mx001403 MX001403• 24T Drive Belt Pulley Mounts to Motor Input ShaftSee More Details
• 9mm wide
• Includes Set Screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$76.50
32==== -
Nice HySecurity MX001404 Pulley - Drive Belt / 36THYS-mx001404 MX001404• 36T Drive Belt Pulley Mounts to Gearbox Input ShaftSee More Details
• Includes Set Screws
• For SlideSmart DC 10F, SwingSmart DC, StrongArmPark DC and WedgeSmart DC models
• 3-4 Week Lead Time
• No Additional Tariff Fees$104.50
32==== -
Nice HySecurity MX001760 Circuit Breaker - 15 AmpHYS-mx001760 MX001760• 15 Amp Circuit Breaker for Solar Powered OperatorSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
32==== -
Nice HySecurity MX001761 Switch - On/OffHYS-mx001761 MX001761• On/Off SwitchSee More Details
• Double Pole, Single Throw
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
32==== -
Nice HySecurity MX001766 Switchable Power Supply Board - 115/230VACHYS-mx001766 MX001766• 115/230 VAC Switchable Power Supply BoardSee More Details
• Toggle Switch to Choose Voltage
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$92.75
32==== -
Nice HySecurity MX001920 Brush KitHYS-mx001920 MX001920• 24VDC Motor Brush KitSee More Details
• Replacement Brush Kit for 24 VDC Motor
• Includes 4 Brushes
• 3-4 Week Lead Time
• No Additional Tariff Fees$75.75
32==== -
Nice HySecurity MX001995 MotorHYS-mx001995 MX001995• 24VDC electric motor with encoder for SlideSmart DC onlySee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$487.25
32==== -
Nice HySecurity MX002008 Battery Kit - 8AhHYS-mx002008 MX002008• Two 12V, 8Ah batteriesSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$125.75
32==== -
Nice HySecurity MX002013 Battery Kit - 50AhHYS-mx002013 MX002013• Two 12-V, 50Ah batteries for optional extended battery backup kitSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$554.00
32==== -
Nice HySecurity MX002076 Pulley - GearboxHYS-mx002076 MX002076• SlideSmart 60T Gearbox PulleySee More Details
• 60T Drive Belt Pulley Mounts to Gearbox Input Shaft
• Includes Set Screws for SlideSmart DC15 (1FPS)
• 3-4 Week Lead Time
• No Additional Tariff Fees$126.00
32==== -
Nice HySecurity MX002085 Sensor - Switch TargetHYS-mx002085 MX002085• SlideSmart Sensor Switch TargetSee More Details
• Target Proximity Sensor
• Mounts on Operator
• 3-4 Week Lead Time
• No Additional Tariff Fees$43.00
32==== -
Nice HySecurity MX002094 Base Extension - SlideSmart DCHYS-mx002094 MX002094• SlideSmart Base ExtensionSee More Details
• 12.5" Tall
• Black
• Includes Hardware
• For SlideSmart DC 10F, 15
• 3-4 Week Lead Time
• No Additional Tariff Fees$1,080.00
32==== -
Nice HySecurity MX002106 BeltHYS-mx002106 MX002106• Gearbox to motor drive beltSee More Details
• SlideSmart DC 15 (1FPS), and HD25, HD30 models, 100T
• 3-4 Week Lead Time
• No Additional Tariff Fees$42.00
32==== -
Nice HySecurity MX002107 BeltHYS-mx002107 MX002107• SlideSmart DC10F 90T Drive Belt (2FPS)See More Details
• Gearbox to motor drive belt
• 3-4 Week Lead Time
• No Additional Tariff Fees$47.00
32==== -
Nice HySecurity MX002115 CoverHYS-mx002115 MX002115• SlideSmart 2-Piece CoverSee More Details
• Includes Cover, Base, Lock, Labels, & Fasteners
• 3-4 Week Lead Time
• No Additional Tariff Fees$543.00
32==== -
Nice HySecurity MX002124 Switch - Internal ResetHYS-mx002124 MX002124• Red Internal Reset SwitchSee More Details
• Mounts to Electrical Enclosure
• Includes two Washers
• 3-4 Week Lead Time
• No Additional Tariff Fees$38.75
32==== -
Nice HySecurity MX002136 KeysHYS-mx002136 MX002136• SlideSmart Spare KeysSee More Details
• Spare set of 2 keys for SlideSmart or StrongArmPark Dc Cover Locks
• 3-4 Week Lead Time
• No Additional Tariff Fees$13.00
32==== -
Nice HySecurity MX002141 Extended Battery Backup KitHYS-mx002141 MX002141• SlideSmart Extended Battery Backup KitSee More Details
• Includes two 50Ah batteries, 12.5" base riser, hardware, and wiring
• 3-4 Week Lead Time
• No Additional Tariff Fees$2,160.00
32==== -
Nice HySecurity MX002181 Pulley - Idler WheelHYS-mx002181 MX002181• Idler wheel pulley for #40 Roller ChainSee More Details
• Includes bolt & bushing
• May also be used for rear mounted installation
• 3-4 Week Lead Time
• No Additional Tariff Fees$33.00
32==== -
Nice HySecurity MX002210 GearboxHYS-mx002210 MX002210• Gearbox with hydraulic fluid for SlideSmart DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$472.00
32==== -
Nice HySecurity MX002211 Sprocket - Roller Chain / 30T #40HYS-mx002211 MX002211• 30T #40 Roller Chain SprocketSee More Details
• Including Set Screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$66.00
32==== -
Nice HySecurity MX002798 TransformerHYS-mx002798 MX002798• TransformerSee More Details
• 115/208/230VAC input
• 31VAC output or 24VAC nominal output
• 3-4 Week Lead Time
• No Additional Tariff Fees$366.25
32==== -
Nice HySecurity MX002873 Latch Lock w/ KeyHYS-mx002873 MX002873• SlideSmart DC 10F and 15 latch lock, includes keySee More Details
• Note: Use MX000296 for SlideSmart HD models
• 3-4 Week Lead Time
• No Additional Tariff Fees$42.00
32==== -
Nice HySecurity MX3037-0 Control BoardHYS-mx3037-0 MX3037-0• Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type when installing in operator
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$485.00
32==== -
Nice HySecurity MX3037R-0 Control Board - ReconditionedHYS-mx3037r-0 MX3037R-0• Reconditioned Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type and input power type when installing in operator
• Reconditioned parts carry the same Manufacturer Warranty as new replacement parts
• Call for availability
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$403.25
32==== -
Nice HySecurity MX3796 Circuit Breaker - 5AHYS-mx3796 MX3796• Circuit Breaker, 5ASee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$18.50
32==== -
Nice HySecurity MX4306 Cover KitHYS-mx4306 MX4306• SlideSmart HD cover kitSee More Details
• Includes cover, lock, and labels
• 3-4 Week Lead Time
• No Additional Tariff Fees$484.00
32==== -
Nice HySecurity MX4369 Sprocket - Gearbox Output ShaftHYS-mx4369 MX4369• Gearbox output shaft sprocketSee More Details
• #40 roller chain, 24T
• Includes set screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$104.50
32==== -
Nice HySecurity MX4621 Hy5B™ 2.0 Loop DetectorHYS-mx4621 MX4621• Improved loop detector module with digital interface to SmartCNX and all other HySecurity controllersSee More Details
• Automatically sets sensitivity
• Automatically compensates for gate movement
• Advanced loop diagnostics
• Note: CNX operators not compatible with MX4125 vehicle detector
• 3-4 Week Lead Time
• No Additional Tariff Fees$232.00
