Maximum Controls MAX SUPER ARM 2300 Linear Gate Operator - Heavy Duty Commercial

Be the first to review this product

• 8' x 2,300 Lbs / 20' x 1,500 Lbs • 115/230VAC Power Source or 24VDC Solar • 24VDC Operational Voltage • Continuous Duty, Brushless Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Up To 500 Full Cycles on Backup • 2 Year / 100,000 Cycle Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED

From $2,285.00

To $10,954.25

SKU

MAX-max-super-arm-2300-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize Maximum Controls MAX SUPER ARM 2300 Linear Gate Operator - Heavy Duty Commercial

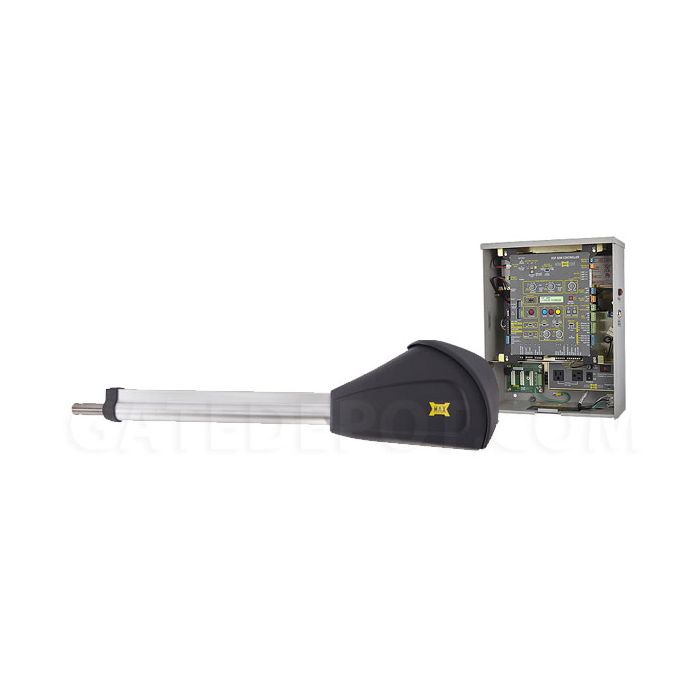

Maximum Controls MAX SUPER ARM 2300 Linear Gate Operator

Maximum Controls MAX SUPER ARM 2300 Linear Gate Operator $2,285.00

GD# MAX-max-super-arm-2300 MFR# MAX-SUPER-ARM-2300

Quantity

Control Box - VAC or Solar - REQUIRED

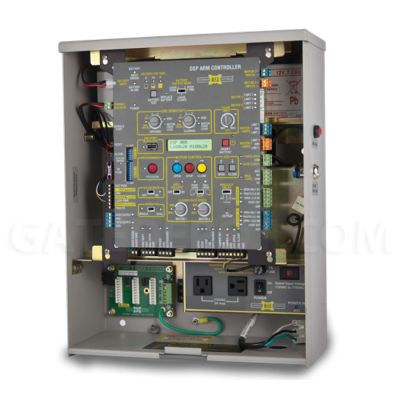

Maximum Controls MAX-AC-CONTROL-BOX Control Box - AC $2,482.00

• Control box only • Includes Two 7Ah batteries & Loop rack • For Max Arm / Super Arm • 2yr warranty

GD# MAX-max-ac-control-box MFR# MAX-AC-CONTROL-BOX

Quantity

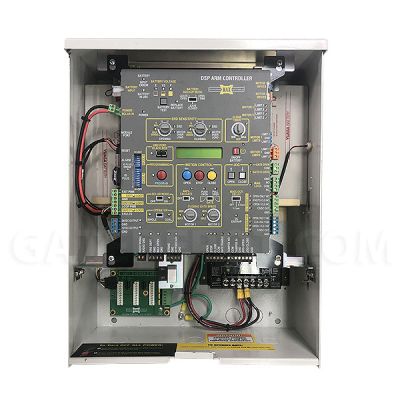

Maximum Controls MAX-SOLAR-CONTROL-BOX Solar Control Box $2,807.00

• Control box only • Two 18Ah batteries • 24v SunSaver 10amp regulator • For ARM / SUPER ARM

GD# MAX-max-solar-control-box MFR# MAX-SOLAR-CONTROL-BOX

Quantity

Photoeye - REQUIRED

See Accessories Tab For More Options

EMX 1122-1 IRB-RET2 Retro-Reflective Photo Eye Kit - 60' $165.00

• 60 ft. operating range • Universal UL325 Retroreflective Photoeye Kit • Compact design • Easy LED alignment • Easy-to-Adjust Ball & Socket Bracket • Rugged NEMA 4X enclosure • Integrated sensor hood, improved reflector hood, and ball & socket bracket • Six monitoring interfaces • MADE IN USA

GD# EMX-1122-1 MFR# 1122-1

Quantity

Receiver and Transmitters

LiftMaster 850LM-MC Receiver - 3 Channel / Universal $68.50

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm-mc MFR# 850LM-MC

Quantity

LiftMaster 811LMX-MC Transmitter - 1 Button $17.50

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lmx-mc MFR# 811LMX-MC

Quantity

Wireless Keypad

Liftmaster KPW5-MC Wireless Keypad $144.75

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5-mc MFR# KPW5-MC

Quantity

Liftmaster KPW250-MC Wireless Keypad - Universal $243.25

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250-mc MFR# KPW250-MC

Quantity

Exit Wand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $138.75

• 50' Lead • Probe assembly and cable are water tight and direct burial compatible • Settings are placed in a non-volatile memory in case of power failure • Accepts wide range of power inputs from 12-39 VDC or 12-27 VAC • Low current consumption of 70 µA standby and 25 mA activated • 2-Year Limited Manufacturer Warranty • MADE IN USA

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Solar Power Pack & Box

Maximum Controls MAX-SOLAR-PACK Solar Power Pack $1,854.00

• ETL 2018 listed solar pack • 24v 20 A solar regulator • (2) 36 Ah AGM batteries • Optional external housing sold separately • Solar panels sold separately • 1 Year Warranty

GD# MAX-max-solar-pack MFR# MAX-SOLAR-PACK

Quantity

Maximum Controls MAX-SOLAR-PACK-BOX Solar Power Pack Box $403.00

• Designed to fit Max-Solar-Pack • Mounting bracket for 3" pipe and square tube • Built-in key lock • Heavy-Duty sheet metal • Gold zing powder-coated • Dimensions: (when viewing from MAX logo) • Box: 14.5" W x 10" H x 9" D • Including bracket: 10" D

GD# MAX-max-solar-pack-box MFR# MAX-SOLAR-PACK-BOX

Quantity

Solar Panel

Quantity

* Required Fields

Your Customization

Maximum Controls MAX SUPER ARM 2300 Linear Gate Operator - Heavy Duty Commercial

In stock

Qty

$2,285.00

Summary

Overview

Product Details

HEAVY DUTY COMMERCIAL LINEAR GATE OPERATOR

Clutch release on 3 ton impact makes the Super Arm the first true commercial actuator.

The Super Arm 2300 by Maximum Controls is the first true commercial actuator available on the market. What makes an actuator "commercial" you may ask? We think the following criteria has to be met:

If a gate is struck by a vehicle while in motion the actuator should not break
The actuator must run on 230 VAC or 115 VAC
SAMS or PAMS sequencing must be compatible
The actuator must move a heavy gate in extreme conditions
True RPM ramp up and ramp down must be employed
Continuous duty cycle is imperative
A professional control board is a must
An industry standard 10 pin loop rack for easy access and safety
Separate external loop detector inputs for complex scenarios
Emergency reversal sensitivity selectable on open and close cycles
The actuator must supply a gate in motion strobe output
Work with a range of monitored safety devices

The Super Arm 2300 has all of these features and more.

MAX SUPER ARM 2300 Suitable Gate Dimensions

8' x 2,300 Lbs
12' x 2,000 Lbs
16' x 1,800 Lbs
20' x 1,500 Lbs

MAX SUPER ARM 2300 Mechanical Specifications

The patented brake system allows the operator to retract with extreme force. When the force exceeds 3 tons, the clutch releases upon impact then automatically resets. Causes for clutch release include a vehicle strike while the gate is in motion.
Stainless steel output shaft
Direct gear drive (no internal chains, belts, or pulleys)
Mechanical and electrical gate release functions
Corrosion protection: gold zinc and powder coated aluminum housing
High cycles at extreme temperature ranges. No overheating
Intelligent ramp-up and ramp-down for smooth gate operation

MAX SUPER ARM 2300 Electrical Specifications

24 Volt DC motor
Two independently adjustable closing speed controls with 16 positions each
Switchable 115/230 voltage selection
Adaptive DSP motor control for advanced motion control
Real time performance analyzer and event log (OBD PORT and Black Box)
Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
On-board switch for solar mode enables 18 milliamp idle in sleep mode
Gold contact input connections and automobile grade connectors
-4F to 165F (-20C to +74C) operational range including battery backup without a heater
Robust lightning protection, up to 20KVolts and 10KAmps on all inputs and outputs (35 channels) including loop detector input connections
Two selectable 16 position safety obstruction sensors, auto adaptable to gate weight and size, for independent control of open and close cycles
Independent closing speeds for primary and secondary
Dual motor overcurrent safety shut off for additional protection
Two 7amp hour batteries provides 500 cycles in case of power failure with three modes of battery backup, open once, leave open or leave closed
On-board three button station
On-board UL reset button

MAX SUPER ARM 2300 Security Specifications

High traffic intuitive loop management system for exceptional security
Advanced security features with built-in audible and remote alarms
Magnetic lock control relay outputs with selectable delay times
Tamper alert relay output triggers "on" if gate is forced open
Audible alarm if gate is tampered with or ERD is triggered for heightened security
Steel cover with lock protects against intruders and vandalism
Gate disable feature disables all inputs with exception of the fire department and Max Open input for increased security
Built in transaction buffer
Gate status outputs for gate monitoring
Key activated jog fuction for emergency OPEN/CLOSE function
Advanced anti-tailgate feature prevents unwanted intrusion

MAX SUPER ARM 2300 Safety Specifications

UL 325/991 compliant Class I, II, III, and IV. CSA approved
Vehicle hit protection technology protects the gate operator from collision damage caused by automobile impact, avoiding costly repairs
Built in advanced entrapment protection and alarm output
Built in gate-in-motion alarm for industrial applications

At Maximum Controls we sell our gate operators and entry systems to distributors who work with experienced installers. We will not assist with tech support and the warranty will be void if anyone other one than a professional gate installer, installs the gate operator.

Our tech support and warranties only apply when installed by industry professionals. Maximum Controls operators are not designed for do-it-yourself users, homeowners, electricians, maintenance personnel, etc.

Gate Depot recommends all Maximum Controls installations be performed by certified gate professionals and cannot guarantee Maximum Controls will honor the warranty if this condition is not met.
