Sure-Fi DS004 Wireless Bridge
Product Details

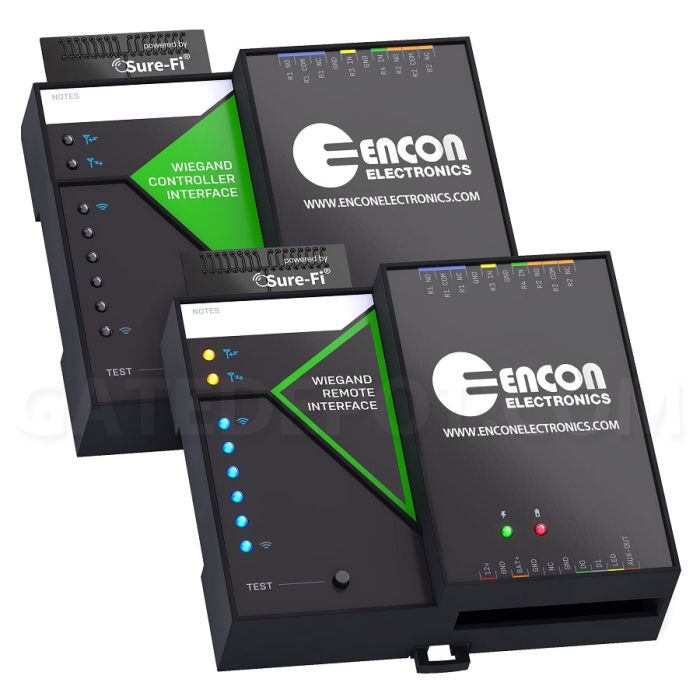

The Sure-Fi DS004 Wiegand Bridge System consists of two units: The Controller Interface, Model DS004-CONTROLLER, and the Remote Interface, Model DS004-REMOTE. The system provides a wireless connection (bridge) from a remote location, such as at a door or gate entry point, to the controller location, such as an Access Control Panel. The Controller Interface connects with the Access Control Panel and communicates wirelessly to the Remote Interface, which is placed near any peripheral Wiegand device (card reader / keypad / receiver) and/or any relay/switch activated device. Each DS004 Bridge System consists of one Wiegand input, two relay outputs and two relay inputs for functions such as door monitor sensors/request to exit inputs or any other relay-controlled function. Each unit has two relay outputs that correspond with the two relay inputs from the other unit. The relays can be used independently and exclusively; it is not necessary to use the Wiegand Input to use the relays. The Sure-Fi App provides for configuration and customization, diagnostics and troubleshooting information, and field firmware updates.
- Includes complete wireless solution from Remote location (reader/door) to Controller location
- Range: up to 1 mile through obstructions and greater than 50 miles line-of-sight
- Chain multiple system pairs for extended range
- One Wiegand port (compatible with any Wiegand protocol up to 64 bit)
- Two relay outputs per side NO, NC, COM terminals (Wet contacts available on Remote only)
- Two relay control inputs per side, i.e. Request to Exit input (REX), Door monitor input (DPS), etc.
- One Auxiliary input/output (0 to 5V input/output)
- Backup Battery charger and UPS function
- DIN rail mount or direct wall mount
- Sure-Fi APP (iOS/Android) connects via Bluetooth for diagnostics and firmware updates
Manufacturer Part Number | DS004 |
---|---|
Brand | Sure-Fi |
