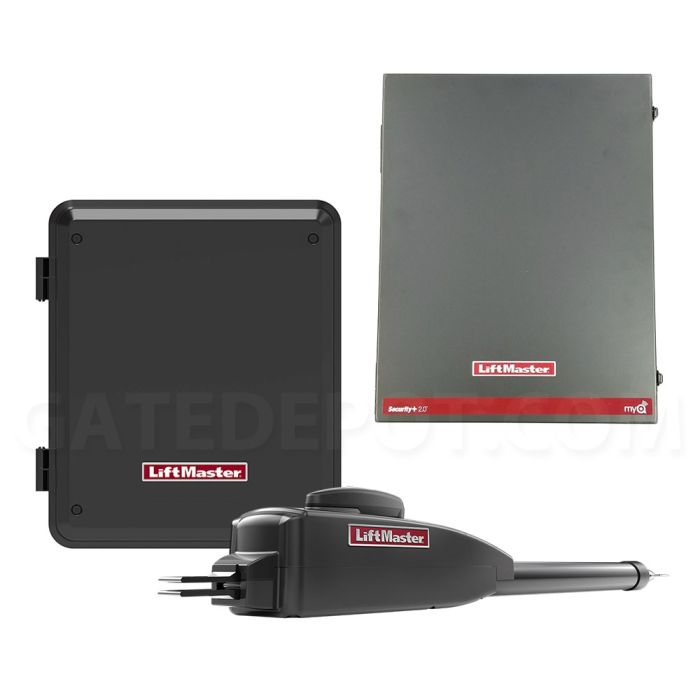

LiftMaster LA400 Linear Arm Operator
Choose AC or Solar
• 10' x 850 Lbs / 16' x 550 Lbs
• 120/230VAC Power Source or 24VDC Solar
• 24VDC Operational Voltage
• Opens 90° ~ 15-17 Seconds
• 100 Cycles per Day
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 3622 Full Cycles on Backup w/ (2) 33 Ah Batteries
• Includes Receiver & Photo Eye
• 2-Year Limited Manufacturer Warranty
From $1,335.00
To $2,831.00
SKU
LFM-la400-bundle
Product Details
One of our most popular swing gate operators just got even better at delivering unsurpassed performance and secure access to your property.
Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.
Suitable Gate Dimensions:
10' x 850 Lbs12' x 750 Lbs
14' x 650 Lbs
16' x 550 Lbs
LA400XL20 Includes:
24VDC Solar Residential Linear ActuatorXL Solar Control Box (For use with 33AH Battery)
(2) 33AH Batteries with Tray
20 Watt Solar Panel Kit, (Includes (2) 10W panels)
Solar Harness
CONNECTIVITY
MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars.
PERFORMANCE
- Battery Backup secures and safeguards your property by providing up to 400 cycles or up to 97 days of standby power when the power is down
- P3 Motors®—purpose-built motor designed to meet your applications' requirements
- Soft start/stop operation
- Commercial-duty cast-aluminum housing
- Wormgear reduction, precision-machined all-metal gear
- Electronic limit setting
- 2-digit LED diagnostic display
- Keyed manual disconnect
- 2 auxiliary power outlets
- Party Pass—selectable hold-open feature
- Bi-part delay
SAFETY
- Includes Monitored Retro-Reflective Photo Eye (LMRRU)
- Monitored safety inputs with colored terminal blocks (3 on main board, 3 on optional expansion board)
- UL /cUL Listed, tested to the most stringent industry guidelines
- Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used
- 3-channel receiver—OPEN/CLOSE/STOP
- Compatible with HOMELINK® version 4 and higher
- Receiver stores up to 50 remote controls (unlimited with 811LM/813LM)
- Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening
- Fire department compliance—auto open on AC failure or battery depletion
- Synchronized close
- Timer-to-Close
- Surge suppression/lightning protection up to 50 ft. away
| Brand | Liftmaster |
|---|
Showcased Accessories
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Timers & Relays
- Emergency Access
- Radio Remote Accessories
- All Products
- Loop Detectors
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Retro-Reflective
- Through-Beam
- Safety Edges
- Gate Operator Accessories

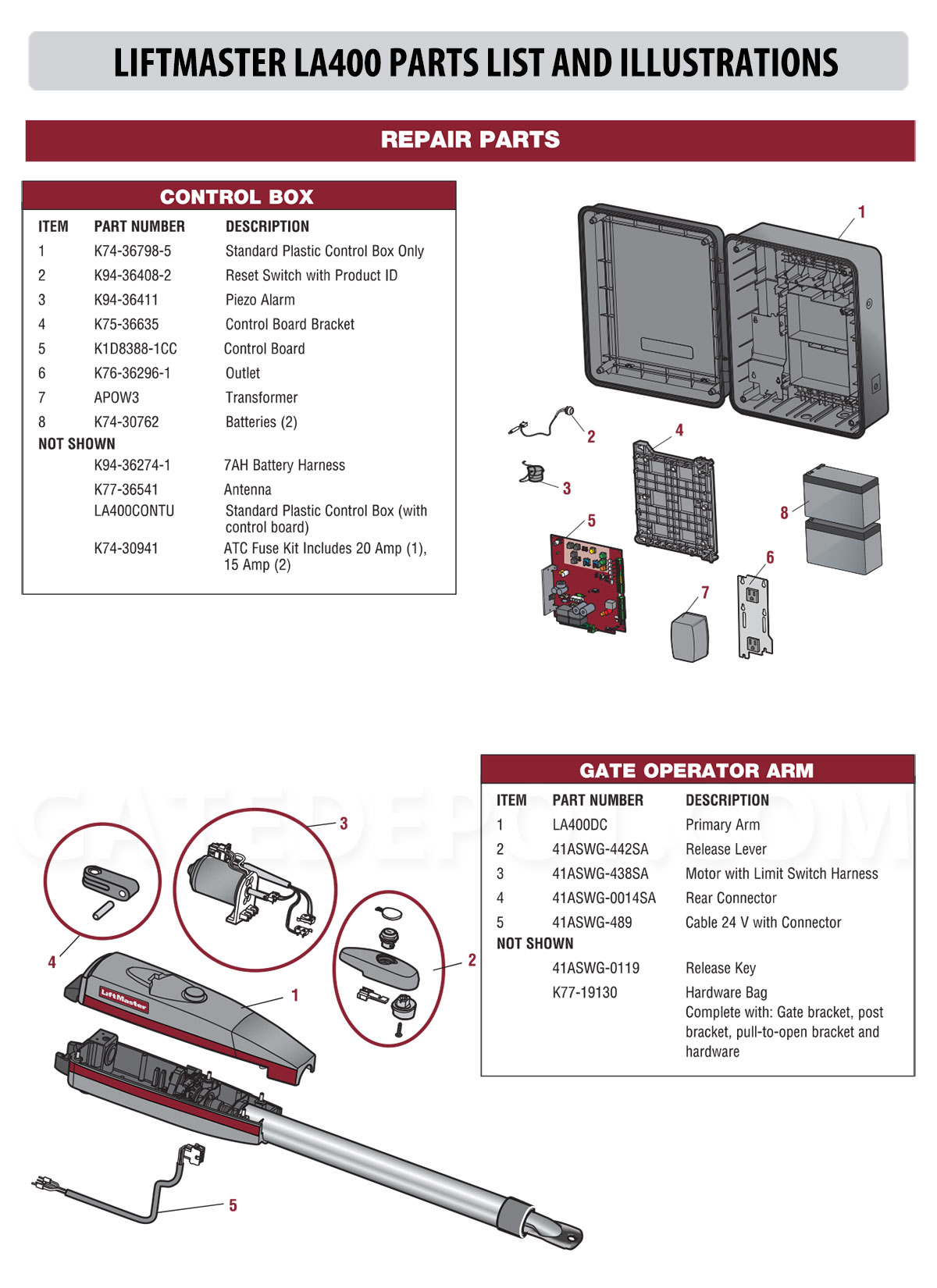

Product Manuals
Product Brochures
Additional Resources
-
17====
-
LiftMaster 041ASWG-0438SA Motor - 24VLFM-041aswg-0438sa 041ASWG-0438SA• Motor, 24VSee More Details
• 1-3 Week Lead Time$260.00
17==== -
LiftMaster 041ASWG-0442SA Release LeverLFM-041aswg-0442sa 041ASWG-0442SA• Release LeverSee More Details
• LA400, LA412
• 1-3 Week Lead Time$114.25
17==== -
LiftMaster 041ASWG-0014SA Rear ConnectorLFM-041aswg-0014sa 041ASWG-0014SA• Rear ConnectorSee More Details
• 1-3 Week Lead Time$18.25
17==== -
LiftMaster 041ASWG-0489 Cable w/ Connector - 24V / 3mLFM-041aswg-0489 041ASWG-0489• Cable, 24V 3m with ConnectorSee More Details
• LA400
• 1-3 Week Lead Time$48.00
17==== -
Liftmaster K1D8388-1CCMC Control BoardLFM-k1d8388-1ccmc K1D8388-1CCMC• Main Control Board for UL325 2016 Linear OperatorsSee More Details
• 1-3 Week Lead Time
• Circuit Boards are Non Returnable$475.50
17==== -
LiftMaster K74-30762 Battery Pack - 12V 7ALFM-k74-30762 K74-30762• Battery Pack, 12V, 7ASee More Details
• 1-3 Week Lead Time$163.00
17==== -
Liftmaster K74-36798-5 Control Box - PlasticLFM-k74-36798-5 K74-36798-5• Control Box, PlasticSee More Details
• LA400U
• 1-3 Week Lead Time$616.00
17==== -
LiftMaster K75-36635 Bracket - Control Board MountingLFM-k75-36635 K75-36635• Control Board Mounting BracketSee More Details
• 1-3 Week Lead Time$71.25
17==== -
LiftMaster K76-36296-1 ReceptacleLFM-k76-36296-1 K76-36296-1• ReceptacleSee More Details
• 1-3 Week Lead Time$73.50
17==== -

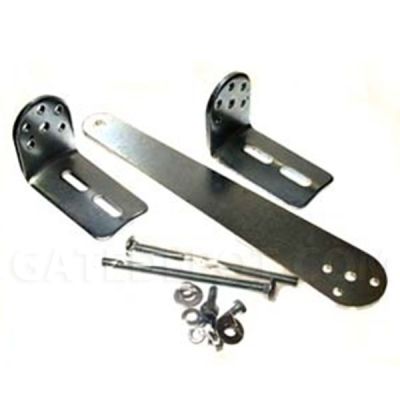

LiftMaster K77-19130 Hardware KitLFM-k77-19130 K77-19130• Hardware KitSee More Details
• LA400, LA412
• 1-3 Week Lead Time$99.50
17==== -
LiftMaster K77-36541 AntennaLFM-k77-36541 K77-36541• AntennaSee More Details
• 1-3 Week Lead Time$38.00
17==== -
LiftMaster K94-36274-1 Harness - Battery / 7AHLFM-k94-36274-1 K94-36274-1• Battery Wire Harness, 7AHSee More Details
• LA500
• 1-3 Week Lead Time$28.75
17==== -
Liftmaster K94-36408-2 Switch - ResetLFM-k94-36408-2 K94-36408-2• Reset SwitchSee More Details
• LA400
• 1-3 Week Lead Time$69.50
17==== -
LiftMaster K94-36411 Piezo AlarmLFM-k94-36411 K94-36411• Piezo AlarmSee More Details
• 1-3 Week Lead Time$37.00
17==== -
Liftmaster LA400CONTUL-MC Standard Control Box - PlasticLFM-la400contul-mc LA400CONTUL-MC• Standard AC Plastic Control BoxSee More Details
• For LA400
$696.00
17==== -
Liftmaster LA400DC Primary ArmLFM-la400dc LA400DC• Primary Arm OnlySee More Details
• Includes 8' of Wire
• 1-3 Week Lead Time$589.00
17==== -
Liftmaster LA400DCS Secondary ArmLFM-la400dcs LA400DCS• Secondary Arm OnlySee More Details
• Includes 40' of Wire
• 1-3 Week Lead Time$653.00
