EMX 5405/5406/5407 PTM Seven Day Programmable Timer
From $84.25
To $252.75
Product Details

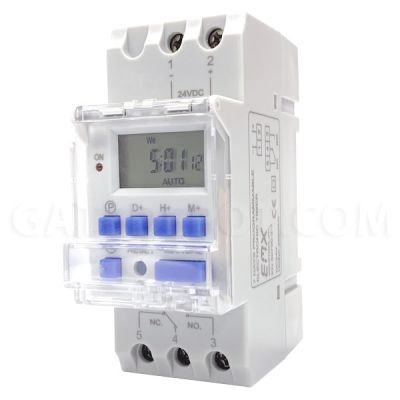

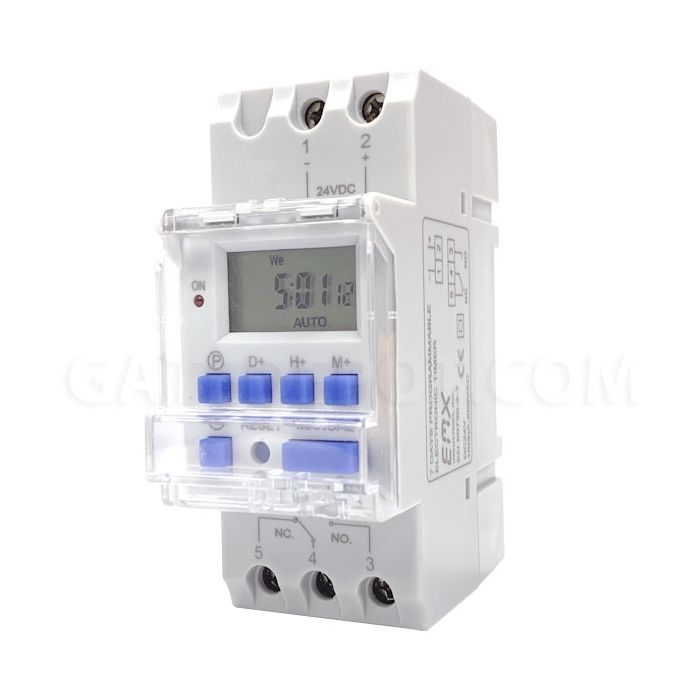

The PTM is an easy to program 7 day timer that provides secure access to any facility, any time. With up to 16 ON/OFF events per day and 15 different daily options, the PTM offers the best user flexibility. Its DIN rail mount design and wide power supply options (12, 24 or 120 Volt) make installation easy. The battery backup saves stored programs in the case of power loss. Select either a 12 or 24 hour clock format to program access times for overhead doors, gates and parking barriers. The PTM can reduce the wear and tear on motor controls and extend the life of your equipment.
- Power & Current Draw 12 VDC/AC: 6 mA standby, 46 mA activated
- Power & Current Draw 24 VDC/AC: 15 mA standby, 37 mA activated
- Power & Current Draw 120 VAC: 33 mA standby and activated
- Events: 16 ON/OFF per day
- Daily Program Options: 15 combinations
- Relay Contact Rating: SPDT 16 A @ 24 VDC / 120 VAC
- Operating Temperature: 14°F to 122°F (-10°C to 50°C )
- Surge Protection: MOV protection devices
- Blackout Memory Protection: 90 days
- Connections: 5 screw terminals
- Mounting: DIN rail
- Housing: ABS plastic
- Dimensions (L x W x H): 3.41" (86.5 mm) x 1.42" (36 mm) x 2.70" (68.5 mm)
| Brand | EMX |
|---|
