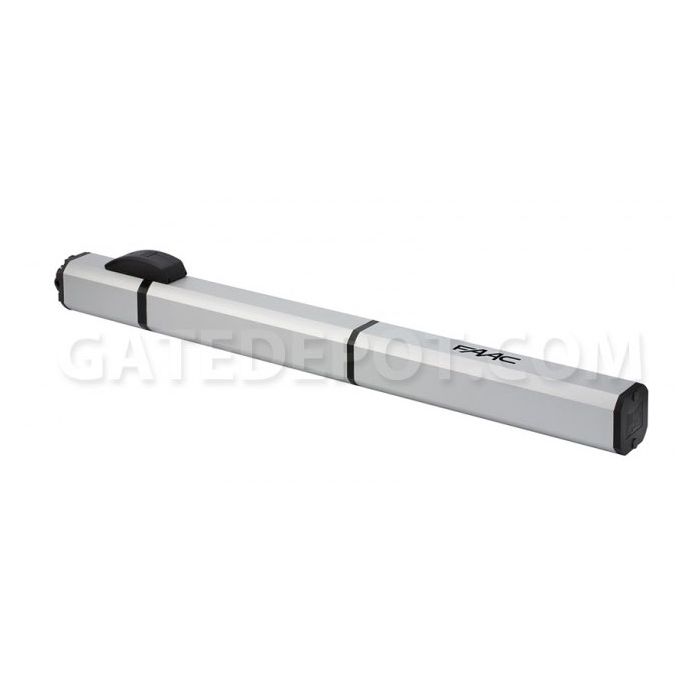

FAAC S450H Hydraulic Linear Arm Operator - 24V / SB
Choose Regular or Arctic Oil
• 17' x 1,100 Lbs
• 115VAC Power Source / 24VDC Operating Voltage
• Opens ~ 1" per Second
• Continuous Duty
• 24VDC Battery Backup System w/ 2 8-Ah Batteries
• Includes Receiver, 2 XT4 433RC Transmitters, & Photo Eye
• 3-Year Limited Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
From $2,278.00
To $7,940.00
SKU
FAC-s450h-sb-bundle
Product Details

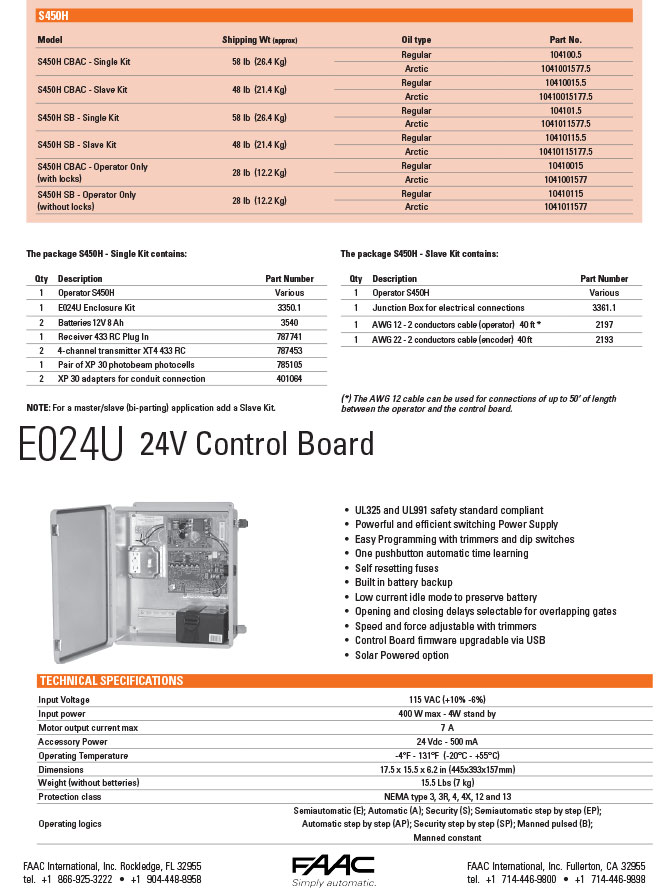

Single Kit Includes:
- 1 Operator S450H - 104101.5
- 1 E024U Enclosure Kit - 3350.1
- 2 Batteries 12V 8 Ah - 3540
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105

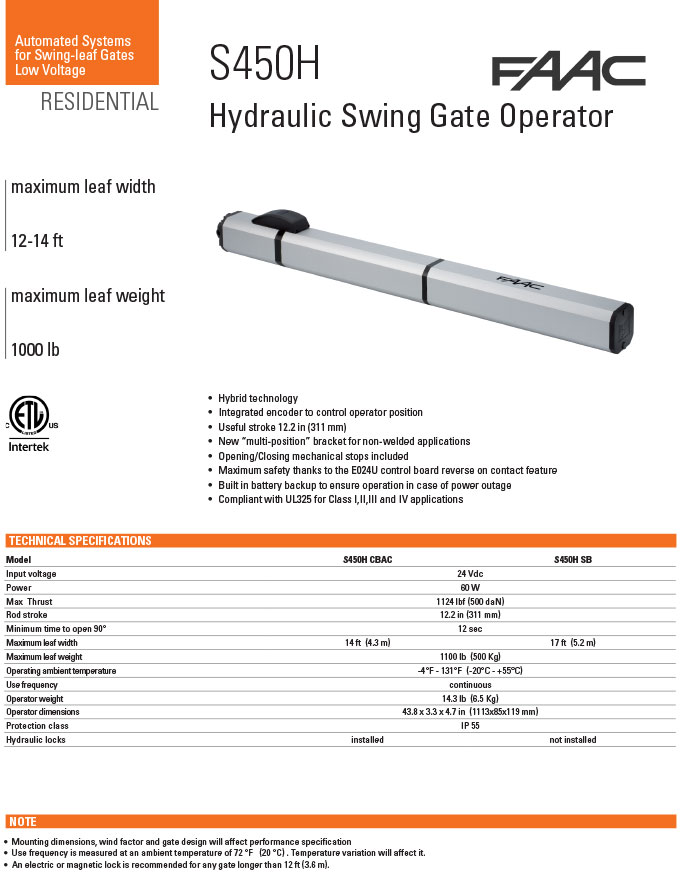

Hybrid technology
Integrated encoder to control operator position
Useful stroke 12.2 in (311 mm)
New "multi-position" bracket for non-welded applications
Opening/Closing mechanical stops included
Maximum safety thanks to the E024U control board reverse on contact feature
Built in battery backup to ensure operation in case of power outage
Compliant with UL325 for Class I,II,III and IV applications
Note:
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C) . Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
| Brand | FAAC |
|---|
Showcased Accessories
-
EMX 2101 CS101 Carsense 101 Probe Vehicle Motion Detector - Detector & Probe
From $135.00
To $807.00
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Radio Remote Accessories
- All Products
- Loop Detectors
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Through-Beam
- Sensor Devices
- Loop Detector & Loop Accessories
- Photo Eye Accessories
- Wire & Cable
- Gate Operator Accessories
Product Manuals
Product Brochures
Additional Resources
-
71====
-
FAAC 202025 Control BoardFAC-202025 202025• E024U 24VDC Replacement Control PanelSee More Details
• All Products Require a 3-5 Day Lead Time$474.00
71==== -
FAAC 2037 Nut - Long Pin / 8 mmFAC-2037 2037• Nut Long Pin 400/402/422 8mm LockSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
71==== -
FAAC 2181.1 Seal KitFAC-2181.1 2181.1• Seal Kit for S450H CBACSee More Details
• All Products Require a 3-5 Day Lead Time$228.00
71==== -
FAAC 3350 Fiberglass EnclosureFAC-3350 3350• 14' x 16' Fiberglass EnclosureSee More Details
• Pre-drilled Backplate
• On/Off Switch
• Auxiliary Outlet
• All Products Require a 3-5 Day Lead Time$510.00
71==== -
FAAC 4180315 Shuttle PistonFAC-4180315 4180315• Shuttle Piston for S450H Distribution FlangeSee More Details
• All Products Require a 3-5 Day Lead Time$30.00
71==== -
FAAC 4404065 Inlet ValveFAC-4404065 4404065• Inlet Valve All OperatorsSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
71==== -
FAAC 4404085 Lock ValveFAC-4404085 4404085• Lock Valve Bi-Metal All Hydraulic OperatorsSee More Details
• All Products Require a 3-5 Day Lead Time$20.00
71==== -
FAAC 4404095 Inlet ValveFAC-4404095 4404095• Inlet Valve 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$29.00
71==== -
FAAC 4900605 Swivel JointFAC-4900605 4900605• Swivel Joint 422 w/ nut & lock washerSee More Details
• All Products Require a 3-5 Day Lead Time$77.00
71==== -
FAAC 63000013 GasketFAC-63000013 63000013• Gasket Op. 400-402-422 Spare PartSee More Details
• All Products Require a 3-5 Day Lead Time$10.00
71==== -
FAAC 63000315 Seal - Internal Front FlangeFAC-63000315 63000315• Internal Front Flange Seal 400 CBAC / S450H CBACSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
71==== -
FAAC 63000626 Cover Kit - MotorFAC-63000626 63000626• S450H Motor Cover KitSee More Details
• All Products Require a 3-5 Day Lead Time$46.00
71==== -
FAAC 63000636 Cover Assembly - MotorFAC-63000636 63000636• S450H Motor Cover AssemblySee More Details
• All Products Require a 3-5 Day Lead Time$170.00
71==== -
FAAC 63000646 Cylinder - PistonFAC-63000646 63000646• Cylinder Piston S450hSee More Details
• All Products Require a 3-5 Day Lead Time$89.00
71==== -
FAAC 63000656 Piston - RivetedFAC-63000656 63000656• S450H Riveted PistonSee More Details
• All Products Require a 3-5 Day Lead Time$135.00
71==== -
FAAC 63000666 Release PinFAC-63000666 63000666• S450H Release PinSee More Details
• All Products Require a 3-5 Day Lead Time$7.40
71==== -
FAAC 63000676 Flange - GearFAC-63000676 63000676• S450H CB Gear FlangeSee More Details
• All Products Require a 3-5 Day Lead Time$226.00
71==== -
FAAC 63003333 PumpFAC-63003333-1 63003333• 10010 s09-169 1,5 L/MIN (S450H) PumpSee More Details
• All Products Require a 3-5 Day Lead Time$238.00
71==== -
FAAC 63000706 Splined JointFAC-63000706 63000706• S450H Splined JointSee More Details
• All Products Require a 3-5 Day Lead Time$42.00
71==== -
FAAC 63000716 Flange - FrontFAC-63000716 63000716• S450H Front FlangeSee More Details
• All Products Require a 3-5 Day Lead Time$104.00
71==== -
FAAC 63000726 Retract TubeFAC-63000726 63000726• Retract Tube S450HSee More Details
• All Products Require a 3-5 Day Lead Time$37.00
71==== -
FAAC 63000736 TankFAC-63000736 63000736• Tank for S450H CBACSee More Details
• All Products Require a 3-5 Day Lead Time$96.00
71==== -
FAAC 63000746 Screw - TankFAC-63000746 63000746• S450H Tank ScrewSee More Details
• All Products Require a 3-5 Day Lead Time$14.00
71==== -
FAAC 63000766 Master Release PlugFAC-63000766 63000766• Manual Release PlugSee More Details
• All Products Require a 3-5 Day Lead Time$8.70
71==== -
FAAC 63000776 Motor CarterFAC-63000776 63000776• S450H Motor CarterSee More Details
• All Products Require a 3-5 Day Lead Time$89.00
71==== -
FAAC 63000786 Tie RodFAC-63000786 63000786• S450H Tie RodSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
71==== -
FAAC 63000806 Flange - RearFAC-63000806 63000806• S450H Rear FlangeSee More Details
• All Products Require a 3-5 Day Lead Time$78.00
71==== -
FAAC 63000816 Nut - Valve RingFAC-63000816 63000816• Valve Ring NutSee More Details
• All Products Require a 3-5 Day Lead Time$14.00
71==== -
FAAC 63000826 Release ValveFAC-63000826 63000826• Release Valve S450HSee More Details
• All Products Require a 3-5 Day Lead Time$41.00
71==== -
FAAC 63000836 Spacer - ValveFAC-63000836 63000836• Valve Spacer for S450HSee More Details
• All Products Require a 3-5 Day Lead Time$9.80
71==== -
FAAC 63001875 EncoderFAC-63001875 63001875• S450H EncoderSee More Details
• All Products Require a 3-5 Day Lead Time$230.00
71==== -
FAAC 63001885 SkinpackFAC-63001885 63001885• S450H SkinpackSee More Details
• All Products Require a 3-5 Day Lead Time$135.00
71==== -
FAAC 63001895 Carter w/ FAAC StickerFAC-63001895 63001895• S450H Carter W/FAAC StickerSee More Details
• All Products Require a 3-5 Day Lead Time$117.00
71==== -
FAAC 63001905 Screw - CarterFAC-63001905 63001905• Screw for Carter S450HSee More Details
• All Products Require a 3-5 Day Lead Time$17.00
71==== -
FAAC 63001915 Bracket - RearFAC-63001915 63001915• Rear Bracket For S450HSee More Details
• All Products Require a 3-5 Day Lead Time$112.00
71==== -
FAAC 63001925 Covering - BracketFAC-63001925 63001925• S450H Bracket CoveringSee More Details
• All Products Require a 3-5 Day Lead Time$42.00
71==== -
FAAC 63001935 Cable - Molded / Female KitFAC-63001935 63001935• S450H Moulded Cable Female KitSee More Details
• All Products Require a 3-5 Day Lead Time$91.00
71==== -
FAAC 63001945 Bracket - FrontFAC-63001945 63001945• S450H Front FasteningSee More Details
• All Products Require a 3-5 Day Lead Time$58.00
71==== -
FAAC 63001955 Tie Rod - Rear EyeFAC-63001955 63001955• Rear Eye Tie Rod for S450HSee More Details
• All Products Require a 3-5 Day Lead Time$17.00
71==== -
FAAC 63001965 Short PinFAC-63001965 63001965• S450H Short PinSee More Details
• All Products Require a 3-5 Day Lead Time$43.00
71==== -
FAAC 63001975 Spacer KitFAC-63001975 63001975• Spacers Kit for S450HSee More Details
• All Products Require a 3-5 Day Lead Time$39.00
71==== -
FAAC 63001985 Release AssemblyFAC-63001985 63001985• Release Assy S450HSee More Details
• All Products Require a 3-5 Day Lead Time$114.00
71==== -
FAAC 7090010015 O-RingFAC-7090010015 7090010015• O-ring Pump to Valve Body 400/402/422/750/760 4.48 x 1.78See More Details
• All Products Require a 3-5 Day Lead Time$7.00
71==== -
FAAC 7090050015 O-Ring - 10.82 x 1.78 mmFAC-7090050015 7090050015• O-Ring 10.82 x 1.78 mmSee More Details
• All Products Require a 3-5 Day Lead Time$14.00
71==== -
FAAC 7090150015 O-Ring - 9.25 x 1.78FAC-7090150015 7090150015• O-ring Bi-Pass Caps Alum/Brass 9.25 x 1.78See More Details
• All Products Require a 3-5 Day Lead Time$7.00
71==== -
FAAC 7090280015 O-Ring - 5.28 x 1.78FAC-7090280015 7090280015• O-ring Retract Tube (Short 422 & Old 400) '94 5.28 x 1.78See More Details
• All Products Require a 3-5 Day Lead Time$9.20
71==== -
FAAC 7090350025 O-Ring - 34.6 x 2.62FAC-7090350025 7090350025• O-ring Front Flange 402/422 34.6 x 2.62See More Details
• All Products Require a 3-5 Day Lead Time$10.00
71==== -
FAAC 7090815 O-RingFAC-7090815 7090815• O-ring 400 Retract Tube 5/'06 changeSee More Details
• All Products Require a 3-5 Day Lead Time$10.00
71==== -
FAAC 7090895 O-Ring - 21 x 2 mmFAC-7090895 7090895• O-Ring 21x2 mmSee More Details
• All Products Require a 3-5 Day Lead Time$9.80
71==== -
FAAC 7119405 PlugFAC-7119405 7119405• Plug for End Cap 400 Protective CoverSee More Details
• All Products Require a 3-5 Day Lead Time$7.40
71==== -
FAAC 7131005 Manual Release KeyFAC-7131005 7131005• Key Manual Release 400/415/422/620/640/844/746/740See More Details
• All Products Require a 3-5 Day Lead Time$18.00
71==== -
FAAC 714019 Oil - 1 QuartFAC-714019 714019• Oil 1 QuartSee More Details
• All Products Require a 3-5 Day Lead Time$31.00
71==== -
FAAC 714042 Arctic Oil - 1 QuartFAC-714042 714042• Arctic Oil 1 QuartSee More Details
• All Products Require a 3-5 Day Lead Time$93.00
71==== -
FAAC 7182175 Long PinFAC-7182175 7182175• Long PinSee More Details
• All Products Require a 3-5 Day Lead Time$30.00
71==== -
FAAC 7182175.1 Long Pin w/ NutFAC-7182175.1 7182175.1• Pin Long Flange with Nut 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$29.00
71==== -
FAAC 7275275 Key - Manual Release CoverFAC-7275275 7275275• Cover Key 400/422 '06 New Manual ReleaseSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
71==== -
FAAC 7290445 Knob - Manual Release w/ ScrewFAC-7290445 7290445• Manual Release Knob w/ screw 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$21.00
71==== -
FAAC 750007 Switching Power SupplyFAC-750007 750007• Switching Power Supply for E024U, ULSee More Details
• All Products Require a 3-5 Day Lead Time$214.00
71==== -
FAAC RP1 433RC 787856 Plug-In Receiver - 1 ChannelFAC-787856 787856• 1 ChannelSee More Details
• 24VDC
• Rolling code technology
• All Products Require a 3-5 Day Lead Time$72.00
71==== -
FAAC 63000306 GasketFAC-63000306 63000306• SMIM Type TRU000080-N7MMR Type GasketSee More Details
• All Products Require a 3-5 Day Lead Time$10.00
71==== -
FAAC 63000577 Spring - Washer Cup / 30-PackFAC-63000577 63000577• Spring - Washer Cup / 30-PackSee More Details
• For 400 / 402 / 422 / 750 / S450H / S800H
• All Products Require a 3-5 Day Lead Time$2.40
71==== -
FAAC 63000756 Plug Seal - 10-PackFAC-63000756 63000756• Plug Seal - 10-PackSee More Details
• For S450H
• All Products Require a 3-5 Day Lead Time$105.00
71==== -
FAAC 63003255 O-Ring - 5-PackFAC-63003255 63003255• O-Ring - 5-PackSee More Details
• For S450H
• All Products Require a 3-5 Day Lead Time$44.00
71==== -
FAAC 63003332 Cover GroupFAC-63003332 63003332• Cover GroupSee More Details
• For S450H
• All Products Require a 3-5 Day Lead Time$96.00
71==== -
FAAC 63003333 Pump AssemblyFAC-63003333 63003333• Pump AssemblySee More Details
• For B680H / S450H
• All Products Require a 3-5 Day Lead Time$242.00
71==== -
FAAC 63003334 Rear Fork & PinFAC-63003334 63003334• Rear Fork & PinSee More Details
• For S450H
• All Products Require a 3-5 Day Lead Time$74.00
71==== -
FAAC 63003335 Tie Rods & Tank ScrewsFAC-63003335 63003335• Tie Rods & Tank ScrewsSee More Details
• For S450H
• All Products Require a 3-5 Day Lead Time$81.00
71==== -
FAAC 7073035 Swivel JointFAC-7073035 7073035• Swivel JointSee More Details
• For 422 / S450H
• All Products Require a 3-5 Day Lead Time$72.00
71==== -

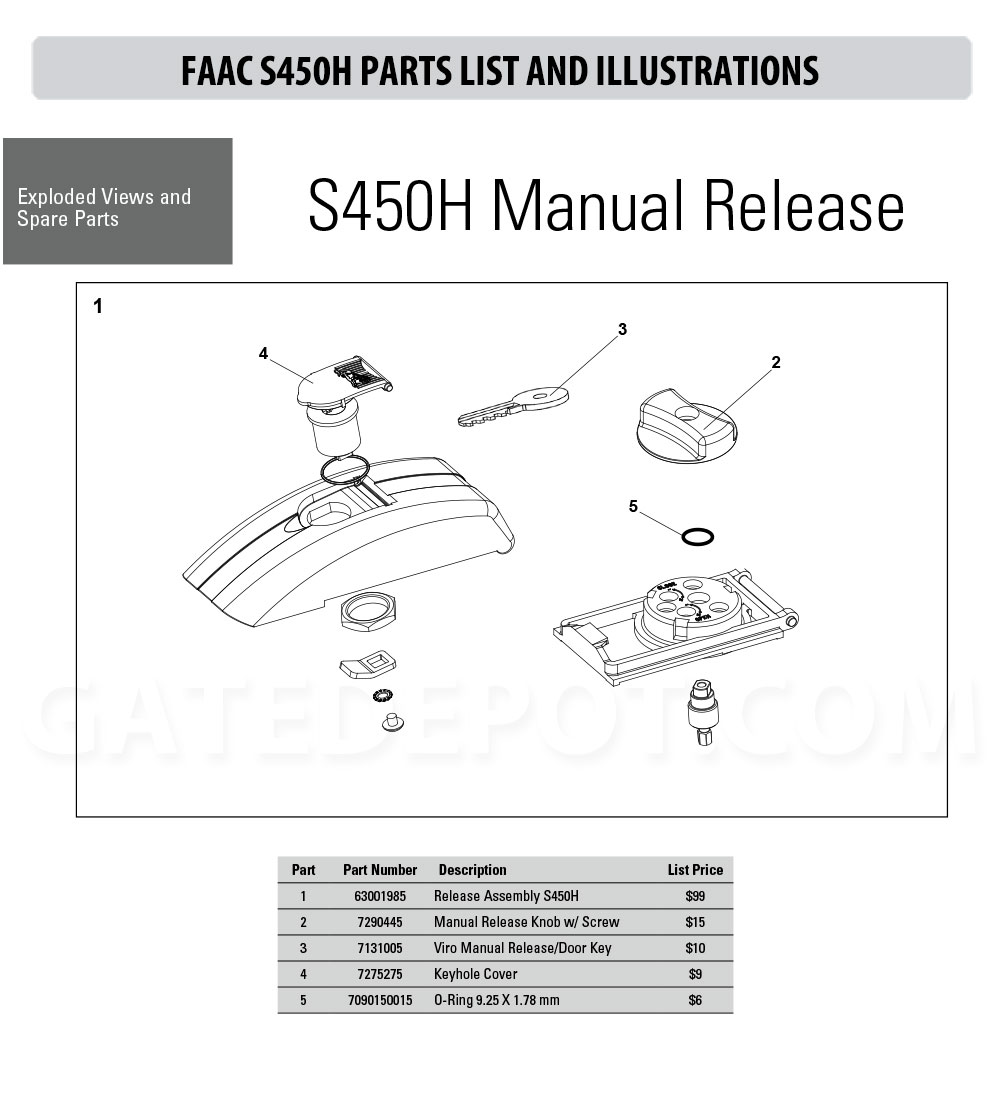

FAAC 7090290015 O-RingFAC-7090290015 7090290015• O-ring (Lock Cylinder)See More Details
• All Products Require a 3-5 Day Lead Time$7.00
71==== -

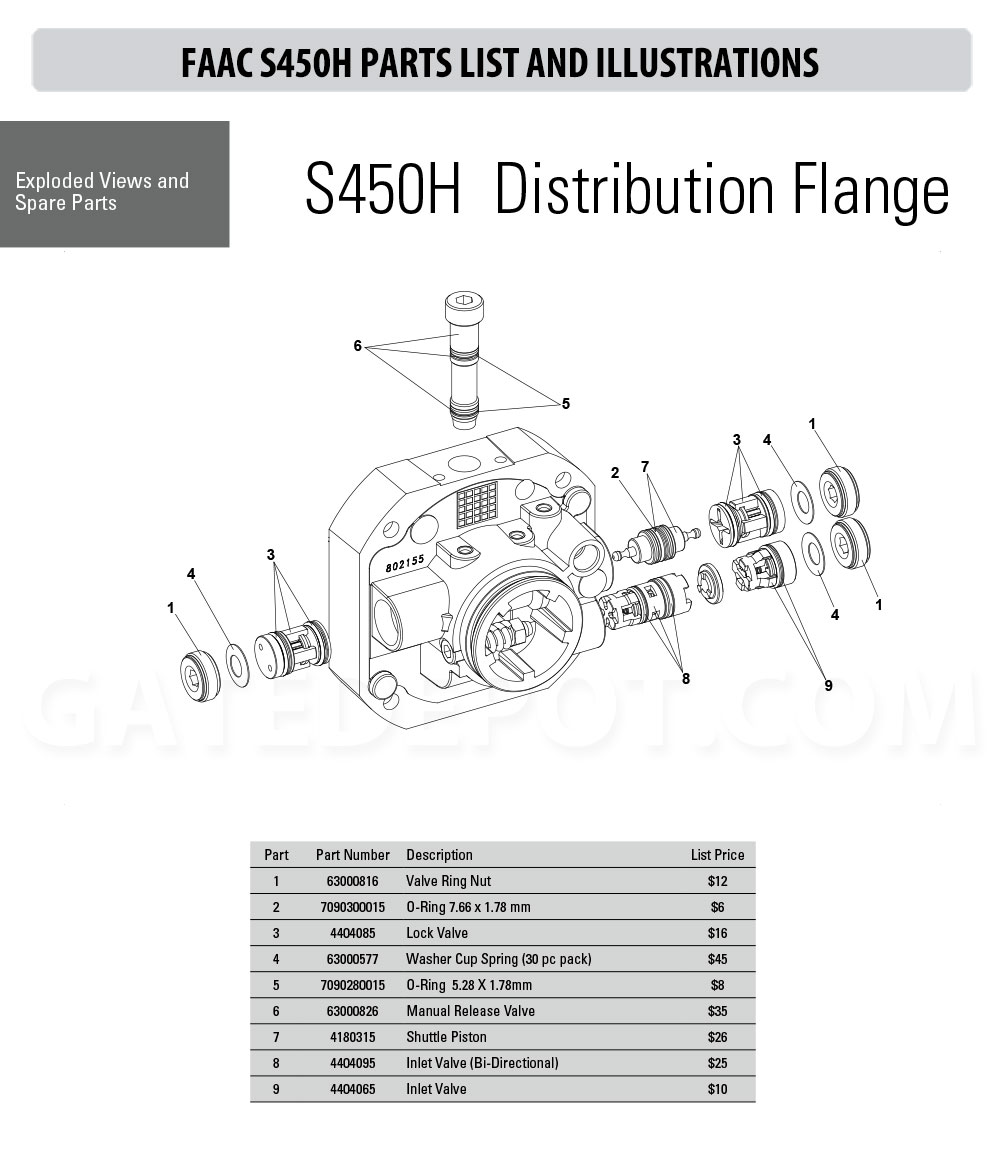

FAAC 7090300015 O-Ring - 7.66 x 1.78 mm / 20-PackFAC-7090300015 7090300015• O-Ring - 7.66 x 1.78 mm / 20-PackSee More Details
• For 400 / 402 / 422 / 750 / 760 / S450H
• All Products Require a 3-5 Day Lead Time$7.00
71==== -

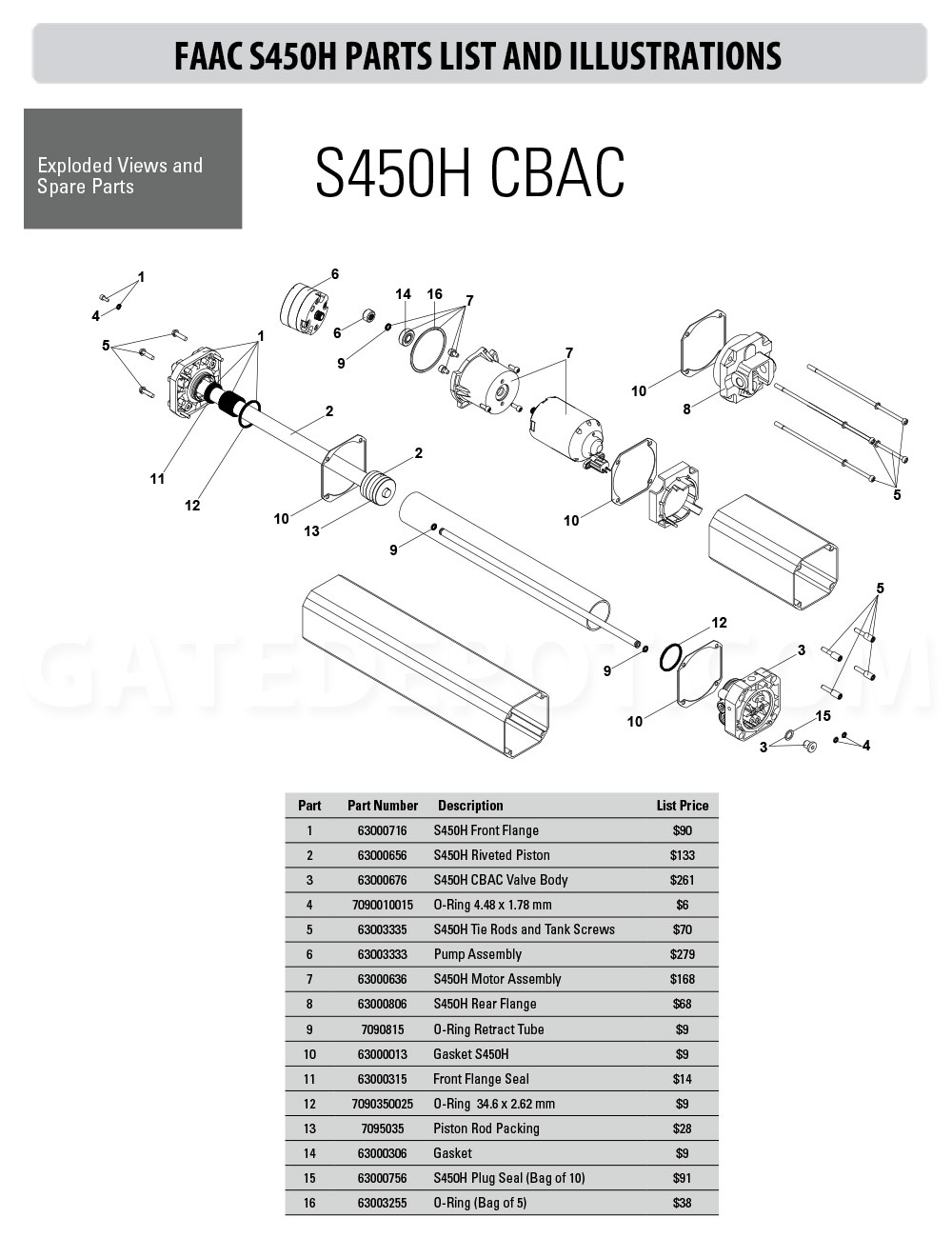

FAAC 7095035 Piston Rod PackingFAC-7095035 7095035• Piston Rod Packing 402/422/610See More Details
• All Products Require a 3-5 Day Lead Time$34.00
Write Your Own Review
