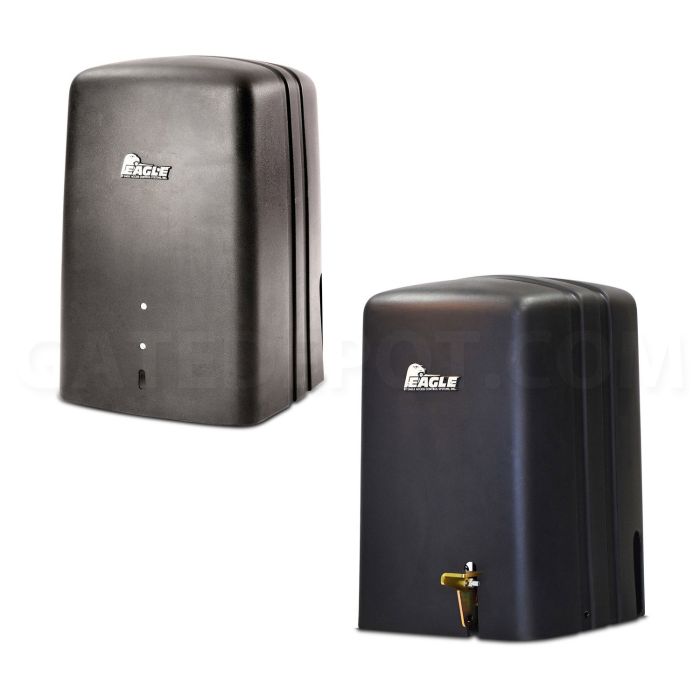

Eagle 1000 Residential Slide Gate Operator
Choose Crank Open or Foot-Release
• 27' x 600 Lbs
• 115VAC Power Source / 115VAC Operational Voltage
• Opens ~ 12" per Second
• Continuous Duty
• Includes Photo Eye & Receiver
• 5-Year Limited Residential Manufacturer Warranty
• MADE IN USA
From $1,500.00
To $3,553.00
SKU
EGL-1000-bundle
Product Details

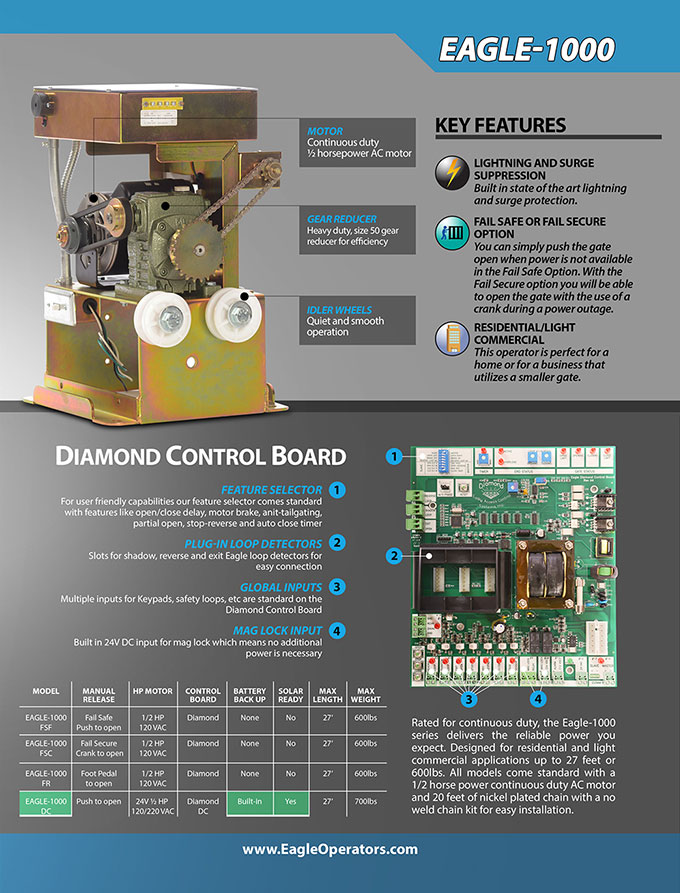

Rated for continuous duty, the Eagle-1000 series delivers the reliable power you expect. Designed for residential and light commercial applications up to 27 feet or 600lbs, the Eagle 1000 series is equipped with our Diamond control Board. The most feature packed and installer friendly control board in the industry. All models come standard with a 1/2 horse power motor and 20 feet of nickel plated chain with a no weld chain kit for easy installation.
Eagle-1000-FSC: The Fail Secure model allows you to open the gate with the use of a crank during a power outage when extra security is needed. This model cannot be manually pushed open.
Eagle-1000-FR: The Foot Release model allows you to push the gate open with the use of a foot pedal in case of a power outage. This model cannot be manually pushed open.
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- One Pass (No Tailgate)
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Partial Open
- Stop-Reverse
- Auto-Close Timer (1-60 sec.)
- UL 325 and UL 991
- ETL Listed
- Class I, II, III & IV
- 5-Year Limited (Residential) Manufacturer Warranty
- Drive Chain: #41 Nickel Plated
- Gear Reducer: Size 50
- Swing Arm with No-Pinch Design
- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: 3/16" Zinc Plated Steel
- Power Disconnect
- 1/2 HP Continuous Duty AC
- 115 VAC @ 60 HZ 5.7 AMP
- Optional Power I Battery Backup - Provides up to 40-80 Cycles
- No-Weld Chain Brackets
- UHMW Silent Idler Wheels
- Audio Alarm
- Pre-Wired Receiver Terminal
- Maximum Gate: 27 ft & 600 lbs
- 12" per second travel
- Rated Continuous Duty
- Dimensions: 22" (h) x 15" (w) x 13-1/2" (d)
- MADE IN USA
| Brand | Eagle |
|---|
Showcased Accessories
-
EMX 2101 CS101 Carsense 101 Probe Vehicle Motion Detector - Detector & Probe
From $135.00
To $807.00
- Surge Suppressors & Protectors
- All Products
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Retro-Reflective
- Through-Beam
- Safety Edges
- Gate Operator Accessories
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Timers & Relays
- Emergency Access
- Chain & Chain Tensioners
- Magnetic Locks
Product Manuals
Product Brochures
Additional Resources
-
54====
-
Eagle E022 Harness - ReceiverEGL-e022 E022• Eagle-1000 Receiver HarnessSee More Details
• Eagle parts returns subject to a 15% restock fee$16.00
54==== -
Eagle E031 Harness - MotorEGL-e031 E031• Eagle-2000 Motor HarnessSee More Details
• Eagle parts returns subject to a 15% restock fee$46.00
54==== -
Eagle E032 Harness - ReceiverEGL-e032 E032• Eagle-2000 Receiver HarnessSee More Details
• Eagle parts returns subject to a 15% restock fee$16.00
54==== -
Eagle E094 Limit Switch AssemblyEGL-e094 E094• Eagle-1000 Limit Switch Assembly (Complete)See More Details
• Includes E098, E099, E100, E107, E108, E109, E110
• Eagle parts returns subject to a 15% restock fee$202.00
54==== -
Eagle E097 Limit SwitchesEGL-e097 E097• Eagle-1000 & 2000 Limit SwitchesSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
54==== -
Eagle E098 Bearing - Limit Switch ShaftEGL-e098 E098• Eagle-1000 & 2000 Limit Switch Shaft BearingsSee More Details
• Eagle parts returns subject to a 15% restock fee$11.00
54==== -
Eagle E099 Sprocket - Limit Switch ShaftEGL-e099 E099• Eagle-1000 & 2000 Limit Switch Shaft SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$35.00
54==== -
Eagle E100 Collar - Limit Switch ShaftEGL-e100 E100• Eagle-1000 & 2000 Limit Switch Shaft CollarSee More Details
• Eagle parts returns subject to a 15% restock fee$8.20
54==== -
Eagle E106A Limit Switch AssemblyEGL-e106a E106A• Eagle-2000 Limit Switch Assembly (Complete)See More Details
• Includes E098, E099, E100, E107, E108, E109, E110
• Eagle parts returns subject to a 15% restock fee$225.00
54==== -
Eagle E106B Limit Switch AssemblyEGL-e106b E106B• Eagle-1000 Limit Switch Assembly (Complete)See More Details
• Includes E098, E099, E100, E107, E108, E109, E110
• Eagle parts returns subject to a 15% restock fee$157.00
54==== -
Eagle E107 Cover Plate - Limit SwitchEGL-e107 E107• Eagle-1000 & 2000 Limit Switch Cover PlateSee More Details
• Eagle parts returns subject to a 15% restock fee$27.00
54==== -
Eagle E108 Cam - Limit Switch AdjustmentEGL-e108 E108• Eagle-1000 & 2000 Limit Switch Adjustment CamSee More Details
• Eagle parts returns subject to a 15% restock fee$26.00
54==== -
Eagle E109 Shaft - Limit SwitchEGL-e109 E109• Eagle-1000 & 2000 Limit Switch Threaded ShaftSee More Details
• Eagle parts returns subject to a 15% restock fee$49.00
54==== -
Eagle E110 Limit Switch BoxEGL-e110 E110• Eagle-1000 & 2000 Limit Switch BoxSee More Details
• Eagle parts returns subject to a 15% restock fee$98.00
54==== -
Eagle E132 Electrical On/Off SwitchEGL-e132 E132• Eagle-100, 200, 1000, 2000 Electrical On/Off SwitchSee More Details
• Eagle parts returns subject to a 15% restock fee$23.00
54==== -
Eagle E133 Outlet Plate`EGL-e133 E133• Eagle-1000 Switch / Outlet PlateSee More Details
• Eagle parts returns subject to a 15% restock fee$9.50
54==== -
Eagle E135 Outlet PlateEGL-e135 E135• Eagle-2000 Switch / Outlet PlateSee More Details
• Eagle parts returns subject to a 15% restock fee$18.00
54==== -
Eagle E136 Electrical OutletEGL-e136 E136• Eagle-2000 Electrical OutletSee More Details
• Eagle parts returns subject to a 15% restock fee$11.00
54==== -
Eagle E144 Pulley - Gear ReducerEGL-e144 E144• Eagle-2000 Gear Reducer Pulley (FSF)See More Details
• Eagle parts returns subject to a 15% restock fee$65.00
54==== -
Eagle E145 Pulley - Gear ReducerEGL-e145 E145• Eagle-1000 Gear Reducer Pulley (FSF)See More Details
• Eagle parts returns subject to a 15% restock fee$33.00
54==== -
Eagle E166 Sprocket - Gear Reducer / Gate DriveEGL-e166 E166See More Details
• Eagle parts returns subject to a 15% restock fee
$64.00
54==== -
Eagle E167 Sprocket - Gear Reducer / Limit DriveEGL-e167 E167• Eagle-2000 Gear Reducer Limit Drive SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
54==== -
Eagle E168 Pulley - IdlerEGL-e168 E168• Eagle-2000 Idler PulleySee More Details
• Eagle parts returns subject to a 15% restock fee$50.00
54==== -
Eagle E181 Gear ReducerEGL-e181 E181• Eagle-2000 Gear ReducerSee More Details
• For Fail-Safe Models Only
• Eagle parts returns subject to a 15% restock fee$383.00
54==== -
Eagle E185 MotorEGL-e185 E185• Eagle-100, 200, 1000, 2000 1/2 HP MotorSee More Details
• Eagle parts returns subject to a 15% restock fee$274.00
54==== -
Eagle E198 ChassisEGL-e198 E198• Eagle-1000 ChassisSee More Details
• Eagle parts returns subject to a 15% restock fee$155.00
54==== -
Eagle E241 Limit ChainEGL-e241 E241• Eagle-1000 Limit ChainSee More Details
• Eagle parts returns subject to a 15% restock fee$48.00
54==== -
Eagle E242 Limit ChainEGL-e242 E242• Eagle-2000 Limit ChainSee More Details
• Eagle parts returns subject to a 15% restock fee$43.00
54==== -
Eagle E255 Pulley - MotorEGL-e255 E255• Eagle-1000 & 2000 Motor Pulley (FSC)See More Details
• Eagle parts returns subject to a 15% restock fee$38.00
54==== -
Eagle E257 Release CrankEGL-e257 E257• Eagle-1000 & 2000 Release CrankSee More Details
• Eagle parts returns subject to a 15% restock fee$25.00
54==== -
Eagle E265 Sprocket - Gear Reducer Gate DriveEGL-e265 E265• Eagle-1000 Gear Reducer Gate Drive SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$49.00
54==== -
Eagle E266 Pulley - MotorEGL-e266 E266• Eagle-1000 & 2000 Motor Pulley (FSF)See More Details
• Eagle parts returns subject to a 15% restock fee$38.00
54==== -
Eagle E267 Sprocket - Gear Reducer Limit DriveEGL-e267 E267• Eagle-1000 Gear Reducer Limit Drive SprocketSee More Details
• Eagle parts returns subject to a 15% restock fee$19.00
54==== -
Eagle E277 Pulley - Gear ReducerEGL-e277 E277• Eagle-2000 Gear Reducer Pulley (FSC)See More Details
• Eagle parts returns subject to a 15% restock fee$33.00
54==== -
Eagle E278 Pulley - Gear ReducerEGL-e278 E278• Eagle-1000 Gear Reducer Pulley (FSC)See More Details
• Eagle parts returns subject to a 15% restock fee$33.00
54==== -
Eagle E281 Gear ReducerEGL-e281 E281• Eagle-1000 Gear ReducerSee More Details
• Eagle parts returns subject to a 15% restock fee$342.00
54==== -
Eagle E282 V-BeltEGL-e282 E282• Eagle-2000 V-Belt (FSC)See More Details
• Eagle parts returns subject to a 15% restock fee$40.00
54==== -
Eagle E283 V-BeltEGL-e283 E283• Eagle-2000 V-Belt (FSF)See More Details
• Eagle parts returns subject to a 15% restock fee$22.00
54==== -
Eagle E284 V-BeltEGL-e284 E284• Eagle-2000 1HP/DM V-BeltSee More Details
• Eagle parts returns subject to a 15% restock fee$33.00
54==== -
Eagle E285 V-BeltEGL-e285 E285• Eagle-1000 V-Belt (FSC)See More Details
• Eagle parts returns subject to a 15% restock fee$28.00
54==== -
Eagle E286 Crank InputEGL-e286 E286Eagle E286 Crank InputSee More Details
• Eagle parts returns subject to a 15% restock fee$17.00
54==== -
Eagle E292 Control Board BoxEGL-e292 E292• Eagle-1000 & 2000 Control Board BoxSee More Details
• Eagle parts returns subject to a 15% restock fee$185.00
54==== -
Eagle E293 Cover - Control Board Box / PlasticEGL-e293 E293• Eagle-1000 & 2000 Control Board Box Plastic CoverSee More Details
• Eagle parts returns subject to a 15% restock fee$30.00
54==== -
Eagle E300 Bracket Kit - ChainEGL-e300 E300• No weld chain bracket kitSee More Details
• #40 & #41 Chain
• Includes bracket, bolts, U-bolts, nuts & Master Link
• Eagle parts returns subject to a 15% restock fee$68.00
54==== -
Eagle E305 Bracket - ChainEGL-e305 E305• Eagle-1000 & 2000 Chain BracketSee More Details
• Eagle parts returns subject to a 15% restock fee$22.00
54==== -
Eagle E306 Bolt - Chain w/ NutsEGL-e306 E306• Eagle-1000 & 2000 Chain Bolt with NutsSee More Details
• Eagle parts returns subject to a 15% restock fee$8.00
54==== -
Eagle E307 U-BoltEGL-e307 E307• Eagle-1000 & 2000 U-BoltsSee More Details
• Eagle parts returns subject to a 15% restock fee$4.10
54==== -
Eagle E333 Cover - OperatorEGL-e333 E333• Eagle-2000 Operator CoverSee More Details
• Eagle parts returns subject to a 15% restock fee$351.00
54==== -
Eagle E555 Diamond Control Board - ACEGL-e555 E555• Eagle-100, 200, 1000 & 2000 Diamond Control BoardSee More Details
• Eagle parts returns subject to a 15% restock fee$353.00
54==== -
Eagle E603 V-BeltEGL-e603 E603• Eagle-1000 V-Belt (FSF)See More Details
• Eagle parts returns subject to a 15% restock fee$23.00
54==== -
Eagle XM200 Chain - #41 / Nickel Plated 10'EGL-xm200 XM200• #41 ChainSee More Details
• 10'
• Nickel Plated
• Includes One Master Link$34.00
54==== -
Eagle XM208 Chain - #40 / Nickel Plated 10'EGL-xm208 XM208• #40 ChainSee More Details
• 10'
• Nickel Plated
• Includes One Master Link$44.00
54==== -
