All-O-Matic TORO24 Linear Swing Operator

Be the first to review this product

• 8' x 1,600 Lbs / 18' x 600 Lbs • 120/220VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Opens 90° ~ 15-20 Seconds • Continuous Duty • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Includes 1 Photo Eye • 4 / 3-Year Limited Manufacturer Warranty • MADE IN USA

From $1,012.00

To $2,864.00

SKU

AOM-t24-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize All-O-Matic TORO24 Linear Swing Operator

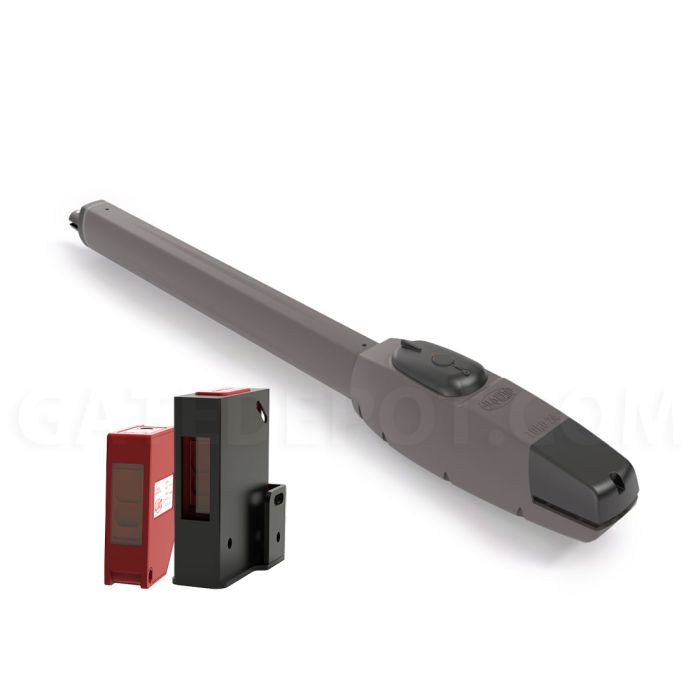

All-O-Matic TORO24 Linear Swing Operator

All-O-Matic TORO24 Linear Actuator $1,012.00

• 8' x 1,600 Lbs / 12' x 1,200 Lbs / 16' x 800 Lbs / 18' x 600 Lbs

GD# AOM-t24a MFR# T24A

Quantity

All-O-Matic TORO24 Linear Swing Operator Control Box

All-O-Matic T24CB Control Box $626.00

• Control Box for TORO24

GD# AOM-t24cb MFR# T24CB

Quantity

Receiver & Transmitter

LiftMaster 850LM Receiver - 3 Channel / Universal $96.00

• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty

GD# LFM-850lm MFR# 850LM

Quantity

LiftMaster 811LM Transmitter - 1 Button $25.00

• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch

GD# LFM-811lm MFR# 811LM

Quantity

Keypad

Liftmaster KPW5 Wireless Keypad $182.00

• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys

GD# LFM-kpw5 MFR# KPW5

Quantity

Liftmaster KPW250 Wireless Keypad - Universal $261.00

• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys

GD# LFM-kpw250 MFR# KPW250

Quantity

Exit Wand

EMX 2805-1 VMD202-5-50 Probe Vehicle Motion Detector - 50' Lead $194.00

• 50' Lead

GD# EMX-2805-1 MFR# EMX-2805-1

Quantity

Solar Package for Solar Operation

Platinum Access SOL-24V-20CS-50W Solar Charge System - 24V / 50W / 20Ah $468.00

• 24 Volt • Two 12V 20AH Gel Batteries • One 50W Solar Panel • Includes Solar Panel Mounting Bracket

GD# PAS-sol-24v-20cs-50w MFR# SOL-24V-20CS-50W

Quantity

* Required Fields

Your Customization

All-O-Matic TORO24 Linear Swing Operator

In stock

Qty

$1,012.00

Summary

Overview

Product Details

The TORO24 Swing Actuator has a modern & slick design that will complement any gate. It's easy to install, offers an uninterrupted power supply. Manual keyed release for easy access when necesary. The Control board offers an array of features including programmable logic and an advaced charge controller enhanced for solar applications. It can take 12/24V solar panels up to 80 watts. This will cover most residential and light commercial applications. Appropriate Gate Dimensions: 8' x 1,600 Lbs 12' x 1,200 Lbs 16' x 800 Lbs 18' x 600 Lbs Max Gate Weight/Length: 8' x 1,600 Lbs / 12' x 1,200 Lbs / 16' x 800 Lbs / 18' x 600 Lbs Warranty: 4 year residential / 3 year commercial Gate Speed: Adjustable 15-20 seconds per 90° opening Power Options: 115/230 VAC single phase and 24 VDC solar panel Duty Cycle: Continuous Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries Battery Back Up Capacity: Up to 450 cycles Temperature Range: -40 to 160° Gearbox Ratio: N/A Width X Length X Height: Fully retracted arm: 38-39" Fully extended arm: 59": Emergency Release: Keyed manual release Breaker Requirement: 20 amp dedicated

Specification
