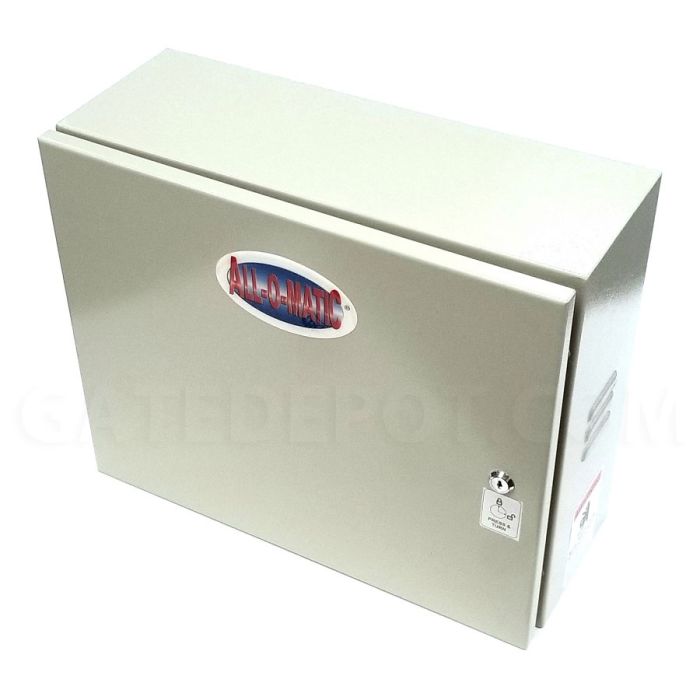

All-O-Matic TORO24CONTROL Toro 24 and Mach Prime Control Box

The TORO24 Swing Actuator has a modern & slick design that will complement any gate. It's easy to install, offers an uninterrupted power supply. Manual keyed release for easy access when necesary. The Control board offers an array of features including programmable logic and an advaced charge controller enhanced for solar applications. It can take 12/24V solar panels up to 80 watts. This will cover most residential and light commercial applications.

*Note:To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Appropriate Dimensions:

• 24 VDC Motor
• Continuous Duty Cycle
• 120/220 VAC Single Phase or 12/24V Solar Panel
• Plated & Powder Coated Steel Control Box for extra rust protection & ample room for accessories
• Dimensions: W: 15" — L: 9.5" — H 25"
• 8' x 1,600 Lbs / 12' x 1,200 Lbs / 16' x 800 Lbs / 18' x 600 Lbs
• Opens 90° ~ 15-20 Seconds
• Keyed Manual Release Knob
• Integrated Battery Backup w/ two 7 Ah 12VDC Batteries capable of up to 450 cycles on an 800 lbs Gate
• 12VDC or 24VDC Solar Panel Input up to 80 Watts
• Maximum Power Point Tracking (MPPT) Solar Charge Controller Technology for maximum efficiency
• Easily accessible and adjustable Magnetic Limit Switches
• 4 Year Residential, 3 Year Commercial
• MADE IN USA
