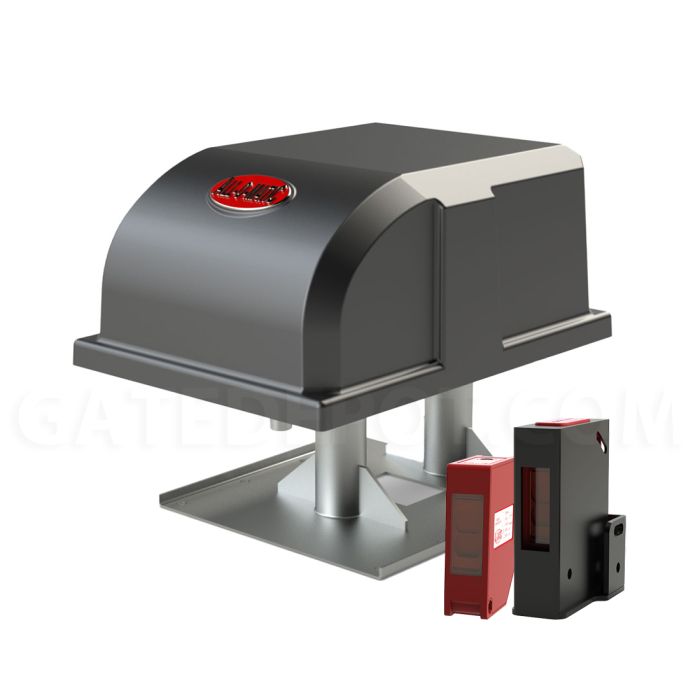

All-O-Matic SW-325-DC Swing Gate Operator
From $2,189.00
To $3,546.00
Product Details
The SW-325DC was designed to both move heavy commercial/industrial gates and to handle the demands of heavy traffic. Its underarm was designed to have the gate bracket installed at the bottom of the gate in order to preserve a gate's beautiful design. Also, its easy slide quick release arm was designed to make any installation quick and easy. Mounting options include Pad or Post Mount which must be specified when ordering. The SW-325DC is capable of moving gates up to 2,000Lbs and up to 22 feet.
DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.
- Max Gate Weight: 2,000 lbs.
- Max Gate Length: 22 feet
- Warranty: 7 year residential - 5 year commercial
- Motor: 24 VDC brushless 1/2 HP motor
- Gate Speed: Adjustable 14-25 seconds per 90° opening
- Power Options: 115/230 VAC single phase and 24 VDC solar panel
- Duty Cycle: Continuous
- Battery Back Up: Integrated, with (2) 7Ah 12VDC batteries
- Battery Back Up Capacity: Up to 250 cycles
- Temperature Range: -40 to 160°
- Gearbox Ratio: 750:1 with internal clutch
- Width X Length X Height: 19" X 25.5" X 21"
- Emergency Release: Easy slide quick release arm
- Breaker Requirement: 20 amp dedicated
- MADE IN USA
