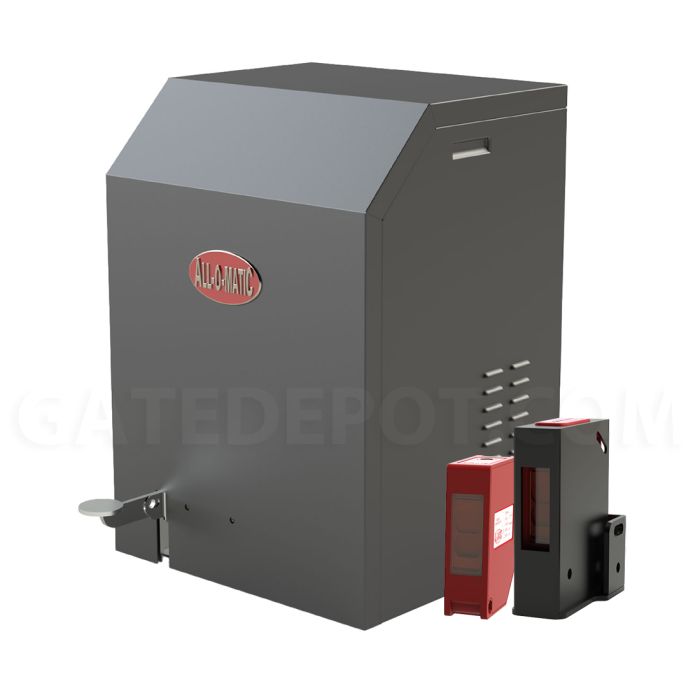

All-O-Matic SL-175-DC Slide Gate Operator
Choose 12" or 24" Opening Speed
• 100' x 8,000 Lbs / 12" Opening Speed
• 100' x 3,000 Lbs / 24" Opening Speed
• 120/240/480VAC Power Source or 36VDC Solar Compatible
• 36VDC Operational Voltage
• Continuous Duty, Brushless Motor
• 36VDC Battery Backup w/ (3) 14 Ah 12VDC Batteries
• Includes 2 Photo Eyes
• 5-Year Limited Manufacturer Warranty
• MADE IN USA
From $4,671.00
To $10,174.00
SKU
AOM-sl175-dc-bundle
Product Details
The SL-175 DC slide gate operator is equipped with an all new super duty high-strength frame, super duty gearbox, beefed up 36VDC brushless DC motor, optional speed of 12" or 24" per second and a newly in-house design BLDC control board - all combined with the industry leading brushless DC technology, soft start/stop, built in loop rack, integrated battery backup, solar power ready and foot pedal release. The SL-175DC has been tested with gates weighting up to 8,000 lbs. and 100 feet in length.
Features
Max Gate Weight: 8,000 lbs. (12" per second) / 3,000 lbs. (24" per second)
Max Gate Length: 100 feet
Warranty: 5 year commercial
Motor: 36 VDC brushless motor
Gate Speed: 12" or 24" per second
Power Options: 115/230/480 VAC single phase / 36VDC solar panel
Duty Cycle: Continuous
Battery Back Up: Integrated, with (3) 14Ah 12VDC batteries
Battery Back Up Capacity: 100 cycles on a 3,000 lb. gate
Temperature Range: -40 to 160°
Gearbox Ratio: 30:1 with internal clutch
Width X Length X Height: 19.5" x 20" x 27.5"
Emergency Release: Mechanical foot pedal release
Belt Size: 4L-370 (AX35)
Main Sprocket Size: 40B18X1-3/8
Chain Size: 50NP (30' included)
Limit Shaft Sprocket: 40B18X5/8
Breaker Requirement: 20 amp dedicated
Gearbox Pulley: 2AK49X3/4
Motor Pulley: 2AK30X5/8
MADE IN USA
| Brand | All-O-Matic |
|---|
Showcased Accessories
-
EMX 2101 CS101 Carsense 101 Probe Vehicle Motion Detector - Detector & Probe
From $135.00
To $807.00
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Emergency Access
- Radio Remote Accessories
- All Products
- Surge Suppressors & Protectors
- Loop Detectors
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Retro-Reflective
- Through-Beam
- Safety Edges
- Sensor Devices
- Chain & Chain Tensioners
- Other Slide Gate Hardware
- Magnetic Locks
- Gate Operator Accessories
Product Manuals

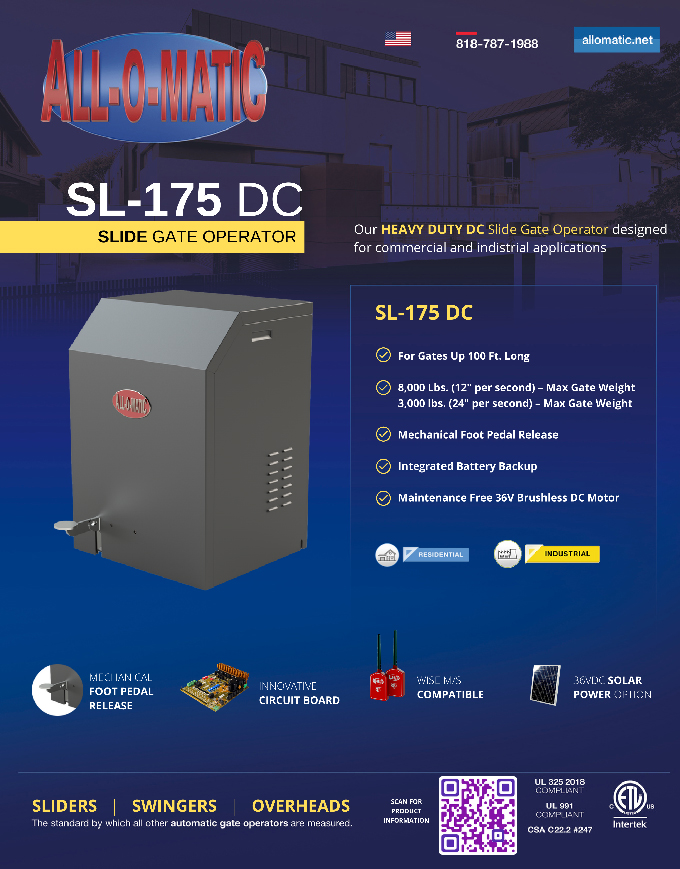

Product Brochures
