Viking Access X390 Column Mount Gate Operator
• 14' x 600 Lbs
• 120/240VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 10 - 13 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ 2 Batteries
• Up To 400 Full Cycles on Battery Backup Operation
• Built-in Heater
• Includes Receiver, 2 Transmitters & Photo Eye
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $1,895.00
To $5,405.25
SKU
VKS-x390-bundle
Product Details
The X-390™ Swing Gate Operator features adjustable timer for automatic closure, high efficiency power supply, a built-in three push button station, built-in battery backup capable of 800 cycles in case of power failure, and on-board lightning protection. The X-390™ is powered by the V-Flex control board, including speed control and diagnostic LCD display. This aesthetic operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. This operator can be mounted directly to a column, making it a very popular option for homeowners that do not have the space for a pad mounted gate opener. The X-390 has UL 325 and 991 safety listings.
Gate Kit Includes:
- Single 1- X390 / Dual 2 - X390
- 1 - Vflex Enclosure w/Board
- 2 - Batteries
- Open and Close Positive Stops
- 1 - Metal Arm
- 1 - Receiver

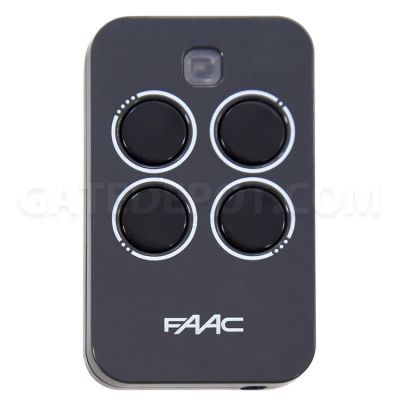

- 2 - Transmitters
- 1 - XP 30 Photo Eye
- 2 - XP 30 Mounting Brackets
Features
- Operation Voltage: 24VDC
- Main Power Source: 120/240 VAC Single Phase
- Max Torque: 184 LB Per Foot (250Nm)Battery Backup: Up To 400 Continuous Cycles
- Operating Speed: 10-13 Seconds per 90°
- Operating Temperature: -20°F up to +131°F
- Max Gate Capacity: 600 Lbs x 14 Ft.
- Max Duty Cycle: 100% Continuous Duty Cycle
- Compatible with Viking Wireless Products
- Lightning Protection up to 20,000 Volts / 10,000 Amps
- On-Board Surge Protection MonitoringMechanical Limits
- Integrated HeaterSolar SmartDiagnostic Display
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
