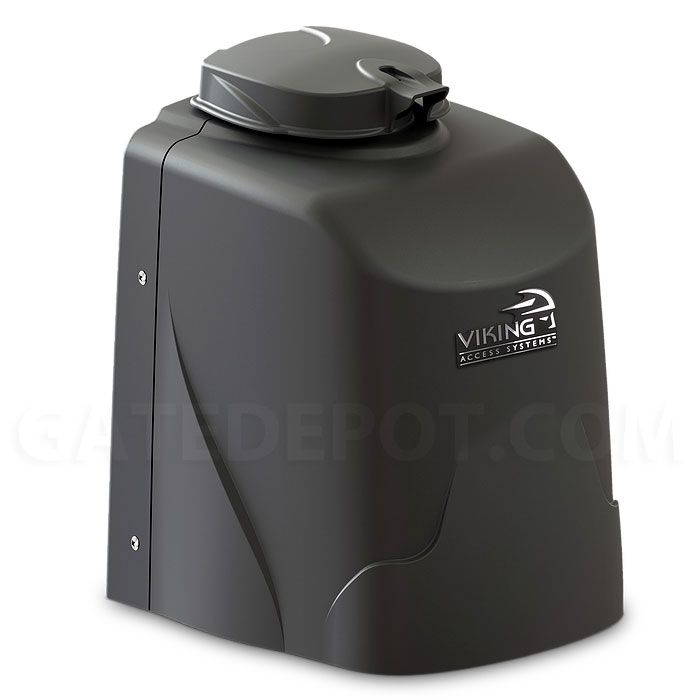

Viking Access T21 Swing Gate Operator
From $3,095.00
To $3,965.95
Product Details
The T-21™ Swing Gate Operator, has a 1/4" steel chassis with multi-layer corrosion protection. This ensures reliable, long-lasting operation in the harshest of environments at your home or business. Built-in heater with thermostat control, 120/240 VAC operation, Viking™s true battery backup and smooth start / stop operation are all standard features in this operator. This powerful swing gate operator has gate capacity of up to 2000 Lbs and 12 ft. The removable power supply box includes LED indicators for your convenience and communicates to the V-Flex™ LCD screen, displaying the status of the AC line, surge protection and fuses of the operator. All Viking operators come with the most robust lightning strike protection built into every machine, offering peace of mind. The T-21™ comes with a 5 year limited Manufacturer Warranty.
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
Features
- Plug & Play connection for the Viking wireless expansion products
- Viking Konnect - Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 400 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Multi-Layer Corrosion Protection
- G90 Galvanized
- Clear Zinc Plating
- UV Rated Powder Coating
- 1/4" Steel Chassis
- Built-in heater for operating temperatures down to -20° F
- This will allow you run your operator in the coldest conditions
- Power Saving technology minimizes current draw while at standby
- On-board LCD screen displays voltages, amps, gate status and diagnostics
- Operational Voltage – 24 VDC 1 HP
- Main Power Source Options – 120/240 VAC Single Phase
- Battery – 7 AmpHr 12 VDC x 2
- Battery Backup – 400 Full Contin. Cycles (2000 lbs)
- Operating Speed – 13-16 seconds per 90°
- Max Gate Capacity – 2000 lbs / 12' or 1200 lbs / 20'
- Max Duty Cycle – 100% Contin. Cycle
| Manufacturer Part Number | X9 |
|---|---|
| Brand | Viking Access |
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Power Supplies
- Solar Power
- Wire & Cable
- Gate Operator Replacement Parts
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
29====
-
$27.50
29==== -
Viking Access DUBA12 Battery - 12V / 7 AhVKS-DUBA12 DUBA12• 12V 7 AmpHr BatterySee More Details
• 3-5 Day Lead Time$44.50
29==== -
Viking Access DULS10 Limit SwitchVKS-DULS10 DULS10• Limit Switch (2)See More Details
• 3-5 Day Lead Time$26.75
29==== -
Viking Access DUMRS10 Switch - Motor Reset / 10 AmpVKS-DUMRS10 DUMRS10• Reset Switch, Motor (10 amp)See More Details
• 3-5 Day Lead Time$13.75
29==== -
Viking Access DUTT15 Transformer - Toroid / 15 AmpVKS-DUTT15 DUTT15• Toroid Transformer - 15 ampSee More Details
• 3-5 Day Lead Time$264.75
29==== -
$56.25
29==== -
Viking Access DWCL20 Clutch w/ HandleVKS-DWCL20 DWCL20• Clutch and HandleSee More Details
• 3-5 Day Lead Time$243.00
29==== -
Viking Access DWLH10 Limit Switch HolderVKS-DWLH10 DWLH10• Limit Switch HolderSee More Details
• 3-5 Day Lead Time$44.50
29==== -
Viking Access DWOUK10 Knob - Output ShaftVKS-DWOUK10 DWOUK10• Output Shaft KnobSee More Details
• 3-5 Day Lead Time$16.75
29==== -
Viking Access T21CH50 Chain - #50x36VKS-T21CH50 T21CH50• Endless #50x36 PitchesSee More Details
• 3-5 Day Lead Time$31.25
29==== -
Viking Access T21GB80 Worm Gear - #80VKS-T21GB80 T21GB80• Worm Gear #80 30:1See More Details
• 3-5 Day Lead Time$439.50
29==== -
Viking Access T21LH Bracket - Limit SwitchVKS-T21LH T21LH• Limit Switch BracketSee More Details
• 3-5 Day Lead Time$27.50
29==== -
Viking Access T21MAP Plate - Motor RetrofitVKS-t21map T21MAP• New Motor Retro-fit PlateSee More Details
• 3-5 Day Lead Time$47.00
29==== -
Viking Access T21OP20 Shaft - OutputVKS-T21OP20 T21OP20• Output ShaftSee More Details
• 3-5 Day Lead Time$93.50
29==== -
Viking Access T21SP2034 Sprocket - 50B15 / 3/4 BoreVKS-t21sp2034 T21SP2034• 50B15 Sprocket, 3/4 boreSee More Details
• 3-5 Day Lead Time$30.25
29==== -
Viking Access VA120PL Receptacle - 120VVKS-VA120PL VA120PL• 120V ReceptacleSee More Details
• 3-5 Day Lead Time$27.50
29==== -
Viking Access VAMOBK Brush KitVKS-vamobk VAMOBK• Brush Kit | New StyleSee More Details
• 3-5 Day Lead Time$58.50
29==== -
Viking Access VASWCB Cover - OperatorVKS-VASWCB VASWCB• Operator Cover Bolt (2)See More Details
• 3-5 Day Lead Time$18.00
29==== -
Viking Access VAT21MO MotorVKS-VAT21MO VAT21MO• 24V 1 HP DC Gearhead MotorSee More Details
• 3-5 Day Lead Time$642.00
29==== -
Viking Access VAWRCK20 Clutch KeyVKS-VAWRCK20 VAWRCK20• Clutch KeySee More Details
• 3-5 Day Lead Time$15.75
29==== -
Viking Access VNXF15A Fuse - 15 AmpVKS-VNXF15A VNXF15A• Fuse - 15 ampSee More Details
• 3-5 Day Lead Time$7.40
29==== -
Viking Access VNXF1CH ChassisVKS-vnxf1ch VNXF1CH• Chassis | F1See More Details
• 3-5 Day Lead Time$540.00
29==== -
Viking Access VNXF4A Fuse - 4 AmpVKS-VNXF4A VNXF4A• Fuse - 4 ampSee More Details
• 3-5 Day Lead Time$5.90
29==== -
Viking Access VNXMPB Modular Power Box AssemblyVKS-vnxmpb VNXMPB• Modular Power Box AssemblySee More Details
• 3-5 Day Lead Time$363.50
29==== -
Viking Access VNXSWOSC Cover - Output ShaftVKS-vnxswosc VNXSWOSC• Output Shaft CoverSee More Details
• 3-5 Day Lead Time$69.25
29==== -
Viking Access VNXSWPH Harness - PowerVKS-vnxswph VNXSWPH• Power HarnessSee More Details
• 3-5 Day Lead Time$49.50
29==== -
$378.75
29==== -
Viking Access VNXT21LSH Harness - Limit SwitchVKS-vnxt21lsh VNXT21LSH• Limit Switch HarnessSee More Details
• 3-5 Day Lead Time$40.75
29==== -
Viking Access VNXUPBPA Assembly - Power Box PanelVKS-VNXUPBPA VNXUPBPA• Power Box Panel AssemblySee More Details
• 3-5 Day Lead Time$214.00
