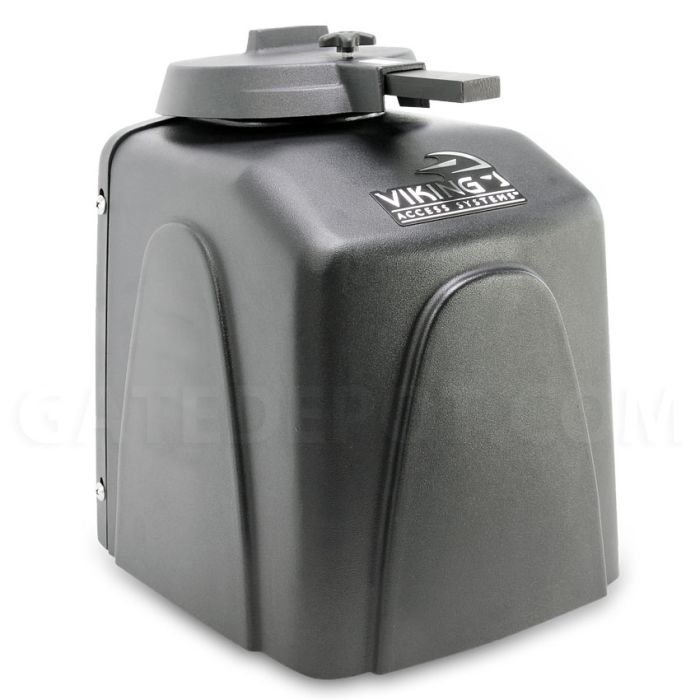

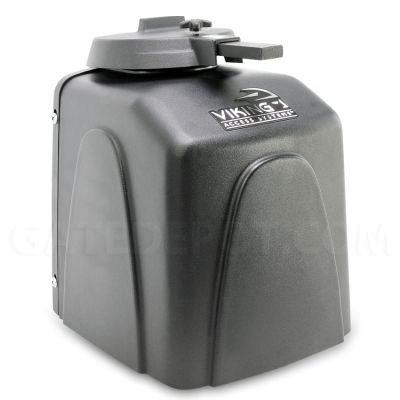

Viking Access R6 Swing Gate Operator
For Single or Bi-Parting Gates
• 14' x 700 Lbs
• 120/240VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 13 - 16 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 400 Full Cycles on Battery Backup Operation
• Built-in Heater
• 5-Year Limited Manufacturer Warranty
• Additional Entrapment Prevention Devices REQUIRED
From $1,740.00
To $2,610.95
SKU
VKS-r6-bundle
Product Details
The R-6™ Residential Swing Gate Operator, features the V-Flex control board with on-board diagnostics LCD display and new chassis design providing easy viewing of the controls. The R-6™ is also equipped with a built in heater; an on board temperature management system and allows for an increased gate capacity of up to 700 Lbs
, making it a great option for heavy ornamental gates. Viking™s integrated true battery backup system, convenient fuse access and LED status indicators for incoming high voltage making this the operator of choice for a home owners swing gate application. The R-6™ Swing Gate Operator has a 5 Year limited Manufacturer Warranty.
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
Features
- Plug & Play connection for the Viking wireless expansion products
- Viking Konnect - Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 400 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Multi-Layer Corrosion Protection
- G90 Galvanized
- Clear Zinc Plating
- UV Rated Powder Coating
- 1/4" Steel Chassis
- Built-in heater for operating temperatures down to -20° F
- This will allow you run your operator in the coldest conditions
- Power Saving technology minimizes current draw while at standby
- On-board LCD screen displays voltages, amps, gate status and diagnostics
- Operational Voltage – 24 VDC
- Main Power Source Options – 120/240 VAC Single Phase
- Battery – 12 VDC x 2
- Battery Backup – 400 Full Contin. Cycles (1600 lbs)
- Operating Speed – 13-16 seconds per 90°
- Max Gate Capacity – 700 lbs / 14'
- Max Duty Cycle – 100% Contin. Cycle
| Brand | Viking Access |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Safety & Sensor Accessories
- Power Supplies
- Solar Power
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
31====
-
$27.50
31==== -
Viking Access DULS10 Limit SwitchVKS-DULS10 DULS10• Limit Switch (2)See More Details
• 3-5 Day Lead Time$26.75
31==== -
Viking Access DUMRS10 Switch - Motor Reset / 10 AmpVKS-DUMRS10 DUMRS10• Reset Switch, Motor (10 amp)See More Details
• 3-5 Day Lead Time$13.75
31==== -
Viking Access DUPCB10-R6 Control BoardVKS-DUPCB10-R6 DUPCB10-R6• Control Board - R6See More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$459.00
31==== -
Viking Access DUTT10 Transformer - Toroid / 10AmpVKS-DUTT10 DUTT10• Toroid Transformer - 10 ampSee More Details
• 3-5 Day Lead Time$208.50
31==== -
$56.25
31==== -
Viking Access DWCL20 Clutch w/ HandleVKS-DWCL20 DWCL20• Clutch and HandleSee More Details
• 3-5 Day Lead Time$243.00
31==== -
Viking Access DWLH10 Limit Switch HolderVKS-DWLH10 DWLH10• Limit Switch HolderSee More Details
• 3-5 Day Lead Time$44.50
31==== -
Viking Access DWOC20 Cover - Output ShaftVKS-dwoc20 DWOC20• Output Shaft CoverSee More Details
• 3-5 Day Lead Time$32.50
31==== -
Viking Access DWOUK10 Knob - Output ShaftVKS-DWOUK10 DWOUK10• Output Shaft KnobSee More Details
• 3-5 Day Lead Time$16.75
31==== -
Viking Access R6CHN40 Chain - #40x38VKS-R6CHN40 R6CHN40• Chain #40x38 PitchesSee More Details
• 3-5 Day Lead Time$16.75
31==== -
Viking Access R6GB60 Worm Gear - #60VKS-R6GB60 R6GB60• Worm Gear #60 Ratio 30:1See More Details
• 3-5 Day Lead Time$269.75
31==== -
Viking Access R6LH10 Holder - Limit SwitchVKS-r6lh10 R6LH10• Limit Switch HolderSee More Details
• 3-5 Day Lead Time$44.50
31==== -
Viking Access R6OPS20 Shaft - OutputVKS-R6OPS20 R6OPS20• Output ShaftSee More Details
• 3-5 Day Lead Time$92.75
31==== -
Viking Access R6SP30 Sprocket - 40B10VKS-R6SP30 R6SP30• 40B10 Sprocket (Motor)See More Details
• 3-5 Day Lead Time$47.00
31==== -
Viking Access VA120PL Receptacle - 120VVKS-VA120PL VA120PL• 120V ReceptacleSee More Details
• 3-5 Day Lead Time$27.50
31==== -
Viking Access VAMBK Brush KitVKS-VAMBK VAMBK• Brush Kit for New StyleSee More Details
• 3-5 Day Lead Time$58.50
31==== -
Viking Access VAR6CO20 Cover - OperatorVKS-VAR6CO20 VAR6CO20• Operator CoverSee More Details
• 3-5 Day Lead Time$244.25
31==== -
Viking Access VAR6MO Motor w/ Gear AssemblyVKS-VAR6MO VAR6MO• 24V 1/3 HP DC Motor/Gear AssemblySee More Details
• 3-5 Day Lead Time$732.00
31==== -
Viking Access VAR6MO-1 Motor w/ Gear AssemblyVKS-var6mo-1 VAR6MO-1• Motor/Gear AssemblySee More Details
• 3-5 Day Lead Time$905.00
31==== -
Viking Access VASP1034 Sprocket - GearboxVKS-vasp1034 VASP1034• Sprocket | GearboxSee More Details
• 3-5 Day Lead Time$37.00
31==== -
Viking Access VASP1058 SprocketVKS-vasp1058 VASP1058• SprocketSee More Details
• 3-5 Day Lead Time$37.00
31==== -
Viking Access VASWCB Cover - OperatorVKS-VASWCB VASWCB• Operator Cover Bolt (2)See More Details
• 3-5 Day Lead Time$18.00
31==== -
Viking Access VAWRCK20 Clutch KeyVKS-VAWRCK20 VAWRCK20• Clutch KeySee More Details
• 3-5 Day Lead Time$15.75
31==== -
Viking Access VNXF15A Fuse - 15 AmpVKS-VNXF15A VNXF15A• Fuse - 15 ampSee More Details
• 3-5 Day Lead Time$7.40
31==== -
Viking Access VNXF4A Fuse - 4 AmpVKS-VNXF4A VNXF4A• Fuse - 4 ampSee More Details
• 3-5 Day Lead Time$5.90
31==== -
Viking Access VNXR6CH ChassisVKS-vnxr6ch VNXR6CH• Chassis | R6NXSee More Details
• 3-5 Day Lead Time$345.50
31==== -
Viking Access VNXR6LSH Harness - Limit SwitchVKS-vnxr6lsh VNXR6LSH• Limit Switch HarnessSee More Details
• 3-5 Day Lead Time$40.75
31==== -
Viking Access VNXR6PH Harness - PowerVKS-vnxr6ph VNXR6PH• Power HarnessSee More Details
• 3-5 Day Lead Time$63.00
31==== -
Viking Access VNXR6PSPA Panel - Power SupplyVKS-vnxr6pspa VNXR6PSPA• Power Supply PanelSee More Details
• 3-5 Day Lead Time$243.75
31==== -
$798.00
