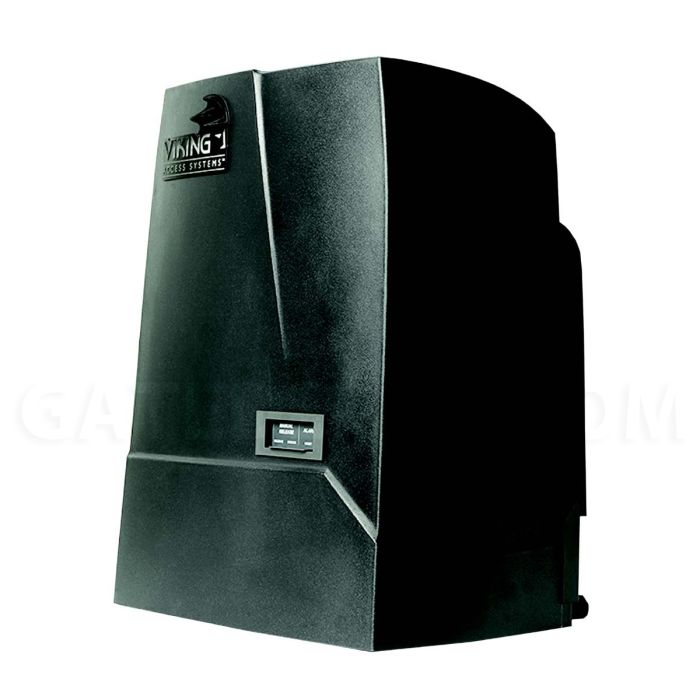

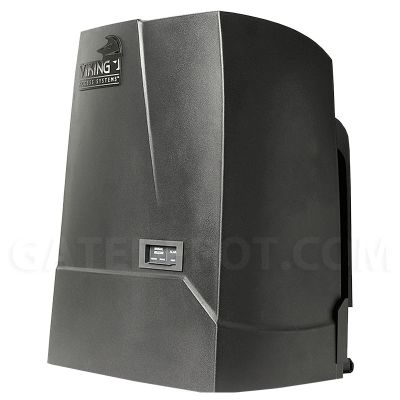

Viking Access L3SPS Slide Gate Operator
• 60' x 1,600 Lbs
• 120/240VAC Power Source / 24VDC Operating Voltage
• Opens ~ 12" per Second
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 100 Full Cycles on Battery Backup Operation
• Built-in Heater
• 5-Year Limited Manufacturer Warranty
• Additional Entrapment Prevention Devices REQUIRED
From $2,140.00
To $2,985.90
SKU
VKS-l3sps-bundle
Product Details
The L3 Slide Gate Operator features the V-Flex control board with on-board diagnostics LCD display and a removable power supply box for low voltage wiring. The L3 also has our new Smart Positioning System, which detects the absolute position of the gate at any instant during its operation regardless of electrical power and without requiring a re-learn cycle. The new chassis design provides easy viewing of the controls and integrated post-mount provisions allowing it to be raised from the ground if needed. Featuring a built in heater to perform in cold weather, an increased gate capacity of up to 1600 lbs. and Viking's true battery backup system. The L3 includes simple push-button digital limits setup, lockable cover and convenient access to the switch for manual release making this operator an excellent choice for both your residential and commercial properties.
Features
- 24 VDC with 1/2 HP Motor
- 120/240 VAC Single Phase
- Two 12 VDC 7 Ah Batteries
- 100 Full Contin. Cycles (1600 lbs) on Battery Backup
- 12" Per Second Operating Speed
- -20°F up to +160°F Operating Temperature
- 1,600 Lbs/ 60' Max Gate Capacity
- 100% Continuous Duty Cycle
- Plug & Play connection for the Viking wireless accesssory products
- Viking Konnect - Wireless Kit provides secure and reliable wireless dual gate communication when the application requires two gate operators working in tandem
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 100 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Ensures consistency at the end of travel of the gate
- Gate position detection, regardless of power status
- Limits are retained even after manual operation during complete power failure
- Multi-Layer Corrosion Protection
- G90 Galvanized
- Clear Zinc Plating
- UV Rated Powder Coating
- 1/4" Steel Chassis
- Built-in heater for operating temperatures down to -20° F
- This will allow you run your operator in the coldest conditions
- On-board LCD screen displays voltages, amps, gate status and diagnostics
- Conforms to ANSI/CAN/UL325
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least TWO monitored "10K Resistor Based" sensors MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
