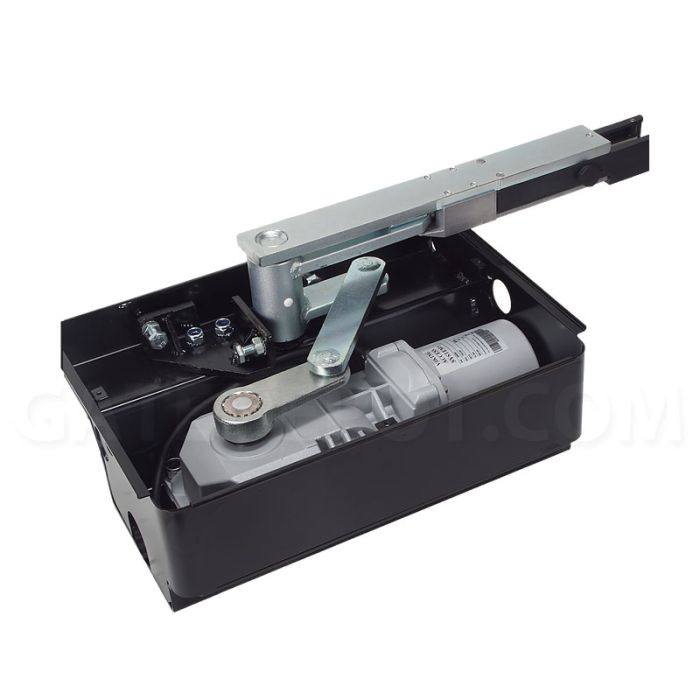

Viking Access I770 Underground Gate Operator
Choose Single or Dual
Available w/ Stainless Steel Casing
• 12' x 650 Lbs
• 120/240VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 13 - 15 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 250 Full Cycles on Battery Backup Operation
• Includes Receiver, 2 Transmitters & Photo Eye
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $2,025.00
To $11,845.25
SKU
VKS-i770-bundle
Product Details
The I-770 Underground Swing Gate Operator offers the solution to home and property owners that want to center all the attention on their gate. Nearly invisible, the I-770 includes a 3 year limited Manufacturer Warranty and it is ETL Listed, UL325 and UL991 compliant. The direct drive DC gear-head unit is IP67 water resistant and has a convenient manual release mechanism. The I-770 comes standard with steel chassis and a battery backup capable of 250 continuous cycles. Stainless steel chassis and hardware upgrades are available. The I-770 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This intuitive operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations.
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
Features
- Plug & Play connection for the Viking wireless expansion products
- Viking Konnect - Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 250 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Multi-Layer Corrosion Protection
- Positive stop limits simplifies limit setup and monitoring. These stops can be finely adjusted
- Built-in heater for operating temperatures down to -20° F
- This will allow you run your operator in the coldest conditions
- Mechanical disengagement so the gate can be moved freely
- On-board LCD screen displays voltages, amps, gate status and diagnostics
- Operational Voltage – 24 VDC
- Main Power Source Options – 120/240 VAC Single Phase
- Max Torque – 221 lb-ft (300 Nm)
- Battery Backup – 250 Full Contin. Cycles (2000 lbs)
- Operating Speed – 13-15 seconds per 90°
- Operating Temperature – -20°F up to +131°F
- Max Gate Capacity – 650 lbs / 12'
- Max Duty Cycle – 100% Contin. Cycle
