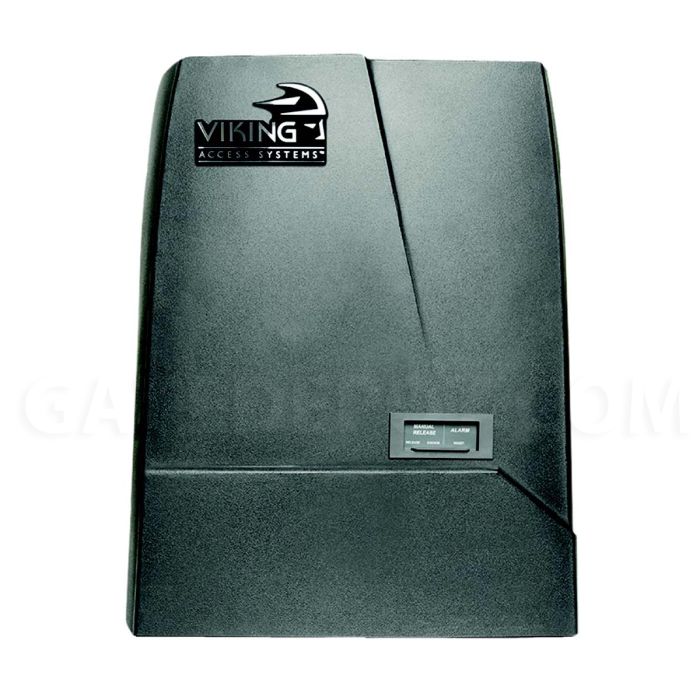

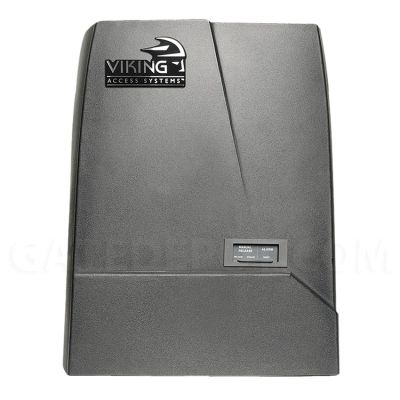

Viking Access H10SPS Slide Gate Operator
From $2,595.00
To $3,440.90
Product Details
The H10 Slide Gate Operator features the V-Flex control board with an on-board diagnostics LCD display and a removable power supply box allowing for a low voltage wiring option. The H10 also has our new Smart Positioning System, which detects the absolute position of the gate at any instant during its operation regardless of electrical power and without requiring a re-learn cycle. This detection is possible thanks to the innovative combination of sensors and a gearbox mechanism added to the main drive of the operator. The new chassis design provides easy viewing of the controls and integrated post-mount provisions. Featuring a true 1 HP motor that increases the gate capacity of up to 2200 lbs. The H10 includes simple push-button digital limits setup, convenient access to the switch for manual release, Viking™s true battery backup system and a built-in heater, making this operator an excellent choice for both your residential and high traffic properties. Viking provides a 5-year limited Manufacturer Warranty for the H-10™.
Features
- 24 VDC with 1 HP Motor
- 120/240 VAC Single Phase
- Two 12 VDC 7 Ah Batteries
- 100 Full Contin. Cycles (2200 lbs) on Battery Backup
- 12" Per Second Operating Speed
- -20°F up to +160°F Operating Temperature
- 2200 Lbs/ 75' Max Gate Capacity
- 100% Continuous Duty Cycle
- Plug & Play connection for the Viking wireless accesssory products
- Viking Konnect - Wireless Kit provides secure and reliable wireless dual gate communication when the application requires two gate operators working in tandem
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 100 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Adaptive digital limits ensure consistency at the end of travel of the gate
- Gate position detection, regardless of power status
- Limits are retained even after manual operation during complete power failure
- Multi-Layer Corrosion Protection
- G90 Galvanized
- Clear Zinc Plating
- UV Rated Powder Coating
- 1/4" Steel Chassis
- Built-in heater for operating temperatures down to -20° F
- This will allow you run your operator in the coldest conditions
- On-board LCD screen displays voltages, amps, gate status and diagnostics
- Conforms to ANSI/CAN/UL325
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least TWO monitored "10K Resistor Based" sensors MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
| Brand | Viking Access |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Timers & Relays
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Solar Power
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
29====
-
Viking Access DSIB10 Bushing - IdlerVKS-DSIB10 DSIB10• Idler Bushing (w/hardware)See More Details
• 3-5 Day Lead Time$17.75
29==== -
Viking Access DSIP10 Pulley - IdlerVKS-DSIP10 DSIP10• Idler PulleySee More Details
• 3-5 Day Lead Time$34.50
29==== -
$27.50
29==== -
Viking Access DUMRS10 Switch - Motor Reset / 10 AmpVKS-DUMRS10 DUMRS10• Reset Switch, Motor (10 amp)See More Details
• 3-5 Day Lead Time$13.75
29==== -
Viking Access DUMRS20 Switch - Reset / 20 AmpVKS-DUMRS20 DUMRS20• Reset Switch (20 amp)See More Details
• 3-5 Day Lead Time$13.75
29==== -
Viking Access DUTT15 Transformer - Toroid / 15 AmpVKS-DUTT15 DUTT15• Toroid Transformer - 15 ampSee More Details
• 3-5 Day Lead Time$264.75
29==== -
$368.50
29==== -
Viking Access DWLH10 Limit Switch HolderVKS-DWLH10 DWLH10• Limit Switch HolderSee More Details
• 3-5 Day Lead Time$44.50
29==== -
Viking Access VA120PL Receptacle - 120VVKS-VA120PL VA120PL• 120V ReceptacleSee More Details
• 3-5 Day Lead Time$27.50
29==== -
Viking Access VAH10MO Motor w/ Gear AssemblyVKS-VAH10MO VAH10MO• 24V 1.0 HP DC Motor/Gear AssemblySee More Details
• 3-5 Day Lead Time$642.00
29==== -
Viking Access VAL3CKN Chain - #40x25 / Nickel CoatedVKS-VAL3CKN VAL3CKN• 25' #40 Chain Kit, Nickel CoatedSee More Details
• 3-5 Day Lead Time$106.00
29==== -
Viking Access VAL3SP17 Sprocket - 40B17VKS-VAL3SP17 VAL3SP17• 40B17 SprocketSee More Details
• 3-5 Day Lead Time$44.50
29==== -
Viking Access VAMOBK Brush KitVKS-vamobk VAMOBK• Brush Kit | New StyleSee More Details
• 3-5 Day Lead Time$58.50
29==== -
Viking Access VFLEXPCB-H10NX Control BoardVKS-VFLEXPCB-H10NX VFLEXPCB-H10NX• Control Board - H10NXSee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$569.00
29==== -
Viking Access VFLEXPCBU16-H10 Control BoardVKS-vflexpcbu16-h10 VFLEXPCBU16-H10• Control Board | H10NX UL-2016See More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$569.00
29==== -
Viking Access VNXAD Door - AccessVKS-VNXAD VNXAD• Access DoorSee More Details
• 3-5 Day Lead Time$10.75
29==== -
Viking Access VNXCHBBRK Chassis - Battery BracketVKS-vnxchbbrk VNXCHBBRK• Battery Bracket ChassisSee More Details
• 3-5 Day Lead Time$31.50
29==== -
Viking Access VNXDUARS Switch - Alarm ResetVKS-VNXDUARS VNXDUARS• Alarm Reset SwitchSee More Details
• 3-5 Day Lead Time$19.75
29==== -
Viking Access VNXF20A Fuse - 20 AmpVKS-VNXF20A VNXF20A• Fuse - 20 ampSee More Details
• 3-5 Day Lead Time$7.40
29==== -
Viking Access VNXF4A Fuse - 4 AmpVKS-VNXF4A VNXF4A• Fuse - 4 ampSee More Details
• 3-5 Day Lead Time$5.90
29==== -
Viking Access VNXH10MH Harness - MotorVKS-VNXH10MH VNXH10MH• Motor HarnessSee More Details
• 3-5 Day Lead Time$63.00
29==== -
$409.25
29==== -
$450.25
29==== -
$435.75
29==== -
Viking Access VNXL3PH Harness - PowerVKS-VNXL3PH VNXL3PH• Power HarnessSee More Details
• 3-5 Day Lead Time$63.00
29==== -
Viking Access VNXMPB Modular Power Box AssemblyVKS-vnxmpb VNXMPB• Modular Power Box AssemblySee More Details
• 3-5 Day Lead Time$363.50
29==== -
Viking Access VNXSLCL Key & LockVKS-VNXSLCL VNXSLCL• Key and LockSee More Details
• 3-5 Day Lead Time$27.50
29==== -
Viking Access VNXSLEPS2 Sensor - Electronic PositioningVKS-VNXSLEPS2 VNXSLEPS2• Electronic Positioning Sensor 2 (EPS2)See More Details
• 3-5 Day Lead Time$40.00
29==== -
Viking Access VNXUPBPA Assembly - Power Box PanelVKS-VNXUPBPA VNXUPBPA• Power Box Panel AssemblySee More Details
• 3-5 Day Lead Time$214.00
