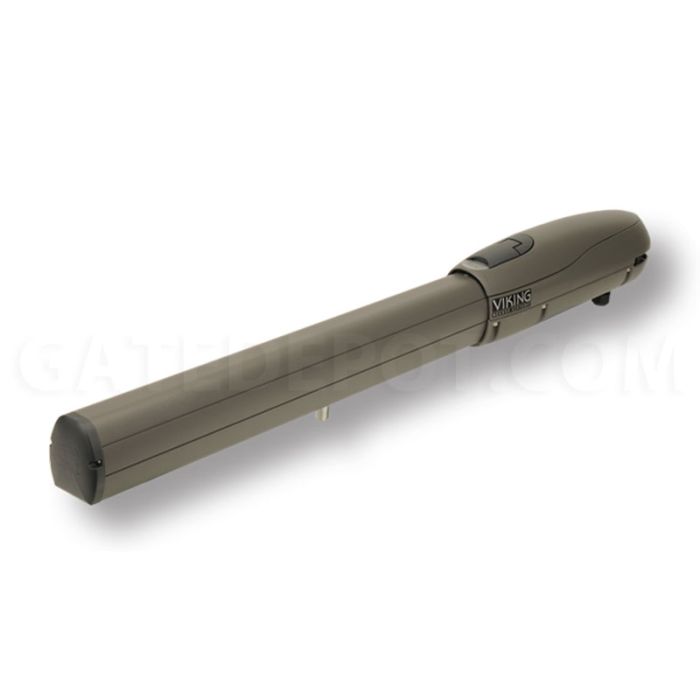

Viking Access G5 Linear Arm Operator
• 10' x 2,000 Lbs / 18' x 800 Lbs
• 120/240VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 15-18 Seconds / 135° Max
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 400 Full Cycles on Battery Backup Operation
• 3-Year Limited Manufacturer Warranty
• Additional Entrapment Prevention Devices REQUIRED
• 3-5 Day Lead Time
From $1,050.00
To $3,129.90
SKU
VKS-g5-bundle
Product Details

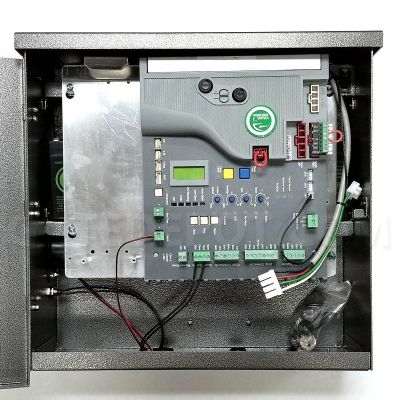

The Viking G-5™, leads the industry in linear actuator swing gate operators. This new design boasts a maximum gate capacity of 2000 Lbs and 100% duty cycle operation, making it unlike any other. Featuring a convenient electronic manual release switch and pre-wired for easy and quick installation. The G-5™ is now powered by the V-Flex control board, including a speed control dial and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ offers an increased 3 year limited Manufacturer Warranty, along with ETL and UL compliance.
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
Suitable Gate Dimensions:
8' x 1600 Lbs12' x 1200 Lbs
16' x 800 Lbs
18' x 600 Lbs
Features
- Plug & Play connection for the Viking wireless expansion products

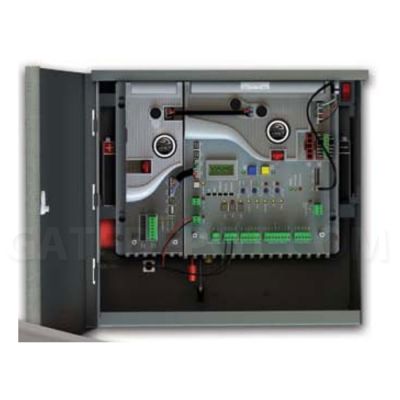

- Viking Konnect - Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
- Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
- Standard Battery Backup provides 400 continuous cycles at 100% duty cycle
- With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection monitoring
- Powder coating on aluminum alloy chassis provides long Lasting protection against corrosion
- Operational Voltage – 24 VDC 1/2 HP
- Main Power Source Options – 120/240 VAC Single Phase
- Operating Angle – 135° max
- Battery Backup – 400 Full Contin. Cycles (1500 lbs)
- Operating Speed – 15-18 seconds per 90°
- Max Gate Capacity – 2000 lbs/ 10' or 800 lbs/ 18'
- Max Duty Cycle – 100% Contin. Cycle
| Brand | Viking Access |
|---|
Showcased Accessories
- Gate Locks
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Safety & Sensor Accessories
- Power Supplies
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
56====
-
Viking Access VA-DH3/4NMCC Strain ReliefVKS-va-dh3/4nmcc VA-DH3/4NMCC• Strain Relief (ECU)See More Details
• 3-5 Day Lead Time$19.75
56==== -
$27.50
56==== -
Viking Access DUEMI10 Control BoardVKS-DUEMI10 DUEMI10• EMI BoardSee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$106.00
56==== -
Viking Access DUMRS10 Switch - Motor Reset / 10 AmpVKS-DUMRS10 DUMRS10• Reset Switch, Motor (10 amp)See More Details
• 3-5 Day Lead Time$13.75
56==== -
Viking Access DUMRS20 Switch - Reset / 20 AmpVKS-DUMRS20 DUMRS20• Reset Switch (20 amp)See More Details
• 3-5 Day Lead Time$13.75
56==== -
Viking Access DUMSCB10-G5NX Control BoardVKS-DUMSCB10-G5NX DUMSCB10-G5NX• Control Board (Master-Slave) - G5NXSee More Details
• Circuit Boards are Non Returnable$590.00
56==== -
Viking Access DUPHCECU Harness - PowerVKS-DUPHCECU DUPHCECU• Power HarnessSee More Details
• 3-5 Day Lead Time$37.00
56==== -
Viking Access DUTT10 Transformer - Toroid / 10AmpVKS-DUTT10 DUTT10• Toroid Transformer - 10 ampSee More Details
• 3-5 Day Lead Time$208.50
56==== -
Viking Access ECUKEY20 Access KeyVKS-ECUKEY20 ECUKEY20• ECU Access KeySee More Details
• 3-5 Day Lead Time$6.90
56==== -
Viking Access ECUKEYC20 Key Cylinder w/ 2 KeysVKS-ECUKEYC20 ECUKEYC20• ECU Key Cylinder W/ 2 KeysSee More Details
• 3-5 Day Lead Time$27.50
56==== -
Viking Access VAG5BPBM Backing PlateVKS-VAG5BPBM VAG5BPBM• Backing Plate, Bar Mount (2)See More Details
• 3-5 Day Lead Time$18.25
56==== -
Viking Access VAG5CGH22M Carrier w/ HardwareVKS-VAG5CGH22M VAG5CGH22M• Carrier with HardwareSee More Details
• 3-5 Day Lead Time$110.25
56==== -
Viking Access VAG5CH Strain ReliefVKS-VAG5CH VAG5CH• Strain Relief (Chassis)See More Details
• 3-5 Day Lead Time$19.50
56==== -
Viking Access VAG5CLS Cover - Lead ScrewVKS-vag5cls VAG5CLS• Lead Screw CoverSee More Details
• 3-5 Day Lead Time$127.50
56==== -
Viking Access VAG5CT Cover - TerminalVKS-VAG5CT VAG5CT• Cover, TerminalSee More Details
• 3-5 Day Lead Time$70.00
56==== -
Viking Access VAG5DA Door - AccessVKS-VAG5DA VAG5DA• Door, AccessSee More Details
• 3-5 Day Lead Time$34.50
56==== -
Viking Access VAG5DBI Dust BrushVKS-VAG5DBI VAG5DBI• Dust Brush (2)See More Details
• 3-5 Day Lead Time$31.00
56==== -
Viking Access VAG5ECC End Cap - Lead Screw CoverVKS-VAG5ECC VAG5ECC• End Cap, Lead Screw CoverSee More Details
• 3-5 Day Lead Time$26.75
56==== -
Viking Access VAG5KC Key CylinderVKS-VAG5KC VAG5KC• G5 Key CylinderSee More Details
• 3-5 Day Lead Time$44.50
56==== -
Viking Access VAG5KR Release KeyVKS-VAG5KR VAG5KR• Key, ReleaseSee More Details
• 3-5 Day Lead Time$10.75
56==== -
Viking Access VAG5LB Bar - Limit SwitchVKS-VAG5LB VAG5LB• Bar, Limit SwitchSee More Details
• 3-5 Day Lead Time$44.50
56==== -
Viking Access VAG5LS Limit SwitchVKS-VAG5LS VAG5LS• Limit Switch (2)See More Details
• 3-5 Day Lead Time$30.25
56==== -
Viking Access VAG5LSB Bracket - Limit SwitchVKS-VAG5LSB VAG5LSB• Limit Switch BracketSee More Details
• 3-5 Day Lead Time$21.50
56==== -
Viking Access VAG5MBB Bracket - Mounting / BackVKS-VAG5MBB VAG5MBB• Mounting Bracket, BackSee More Details
• 3-5 Day Lead Time$27.75
56==== -
Viking Access VAG5MBF22M Bracket - Mounting / FrontVKS-VAG5MBF22M VAG5MBF22M• Mounting Bracket, FrontSee More Details
• 3-5 Day Lead Time$27.50
56==== -
Viking Access VAG5MHB Mounting Hardware - BackVKS-VAG5MHB VAG5MHB• Mounting Hardware, BackSee More Details
• 3-5 Day Lead Time$44.50
56==== -
Viking Access VAG5PSE Positive StopVKS-VAG5PSE VAG5PSE• Positive StopSee More Details
• 3-5 Day Lead Time$47.50
56==== -
Viking Access VAG5TSTC Thumbscrew - Terminal Block CoverVKS-VAG5TSTC VAG5TSTC• Thumbscrew, Terminal Block CoverSee More Details
• 3-5 Day Lead Time$8.90
56==== -
Viking Access VARAK Radio Antenna KitVKS-VARAK VARAK• Radio Antenna KitSee More Details
• 3-5 Day Lead Time$30.25
56==== -
Viking Access VECUBMP Plate - Board MountingVKS-vecubmp VECUBMP• Board Mounting PlateSee More Details
• 3-5 Day Lead Time$64.00
56==== -
Viking Access VECUMCM Harness - MotorVKS-VECUMCM VECUMCM• Motor Harness (Single only)See More Details
• 3-5 Day Lead Time$33.25
56==== -
Viking Access VECUMSC Cable - Dual Controller CommVKS-vecumsc VECUMSC• Dual Controller Comm CableSee More Details
• 3-5 Day Lead Time$24.25
56==== -
Viking Access VECUSPH Harness - Secondary Power / Dual ControllerVKS-vecusph VECUSPH• Secondary Power Harness | Dual Controller OnlySee More Details
• 3-5 Day Lead Time$23.25
56==== -
Viking Access VNXECUBB Chassis - ECU CabinetVKS-vnxecubb VNXECUBB• ECU Cabinet ChassisSee More Details
• 3-5 Day Lead Time$219.00
56==== -
Viking Access VNXG5BPBM Plate - BackingVKS-VNXG5BPBM VNXG5BPBM• Backing Plate, Bracket Mount (2)See More Details
• 3-5 Day Lead Time$19.75
56==== -
Viking Access VNXG5C78 Carrier w/ HardwareVKS-VNXG5C78 VNXG5C78• Carrier with HardwareSee More Details
• 3-5 Day Lead Time$92.75
56==== -
Viking Access VNXG5CL Casing - Motor / LowerVKS-VNXG5CL VNXG5CL• G5 Motor Casing LowerSee More Details
• 3-5 Day Lead Time$120.75
56==== -
Viking Access VNXG5CLS Cover - Lead ScrewVKS-vnxg5cls VNXG5CLS• Lead Screw CoverSee More Details
• 3-5 Day Lead Time$88.75
56==== -
Viking Access VNXG5CT Cover - TerminalVKS-VNXG5CT VNXG5CT• Cover, TerminalSee More Details
• 3-5 Day Lead Time$69.25
56==== -
Viking Access VNXG5CU Casing - Motor / UpperVKS-VNXG5CU VNXG5CU• G5 Motor Casing UpperSee More Details
• 3-5 Day Lead Time$120.75
56==== -
Viking Access VNXG5DB Dust BrushVKS-VNXG5DB VNXG5DB• Dust Brush (2)See More Details
• 3-5 Day Lead Time$31.00
56==== -
Viking Access VNXG5DCR Door Cover ReleaseVKS-VNXG5DCR VNXG5DCR• Door, Cover ReleaseSee More Details
• 3-5 Day Lead Time$34.50
56==== -
Viking Access VNXG5ECC End Cap - Lead Screw CoverVKS-VNXG5ECC VNXG5ECC• End Cap, Lead Screw CoverSee More Details
• 3-5 Day Lead Time$25.75
56==== -
Viking Access VNXG5K Key - Cover ReleaseVKS-VNXG5K VNXG5K• Key, Cover ReleaseSee More Details
• 3-5 Day Lead Time$13.75
56==== -
Viking Access VNXG5KC Key Cylinder - Cover ReleaseVKS-VNXG5KC VNXG5KC• Key Cylinder, Cover ReleaseSee More Details
• 3-5 Day Lead Time$44.50
56==== -
Viking Access VNXG5LDSW Lead ScrewVKS-VNXG5LDSW VNXG5LDSW• Lead ScrewSee More Details
• 3-5 Day Lead Time$245.00
56==== -
Viking Access VNXG5LMB Limit Mounting BarVKS-VNXG5LMB VNXG5LMB• Limit Mounting BarSee More Details
• 3-5 Day Lead Time$44.50
56==== -
Viking Access VNXG5LS Limit SwitchVKS-VNXG5LS VNXG5LSSee More Details• Limit Switch • 3-5 Day Lead Time
$30.25
56==== -
Viking Access VNXG5LSB Bracket - Limit SwitchVKS-VNXG5LSB VNXG5LSB• Limit Switch BracketSee More Details
• 3-5 Day Lead Time$21.50
56==== -
Viking Access VNXG5MBB Bracket - Mounting / BackVKS-VNXG5MBB VNXG5MBB• Mounting Bracket, BackSee More Details
• 3-5 Day Lead Time$27.50
56==== -
Viking Access VNXG5MBF78 Bracket - Mounting / FrontVKS-VNXG5MBF78 VNXG5MBF78• Mounting Bracket, FrontSee More Details
• 3-5 Day Lead Time$27.50
56==== -
Viking Access VNXG5MHB Mounting Hardware - BackVKS-VNXG5MHB VNXG5MHB• Mounting Hardware, BackSee More Details
• 3-5 Day Lead Time$13.75
56==== -
$470.25
56==== -
Viking Access VNXG5SRCH Strain ReliefVKS-VNXG5SRCH VNXG5SRCH• Strain Relief (Chassis)See More Details
• 3-5 Day Lead Time$12.75
56==== -
Viking Access VNXG5TSCR Thumbscrew - Cover ReleaseVKS-VNXG5TSCR VNXG5TSCR• Thumbscrew, Cover ReleaseSee More Details
• 3-5 Day Lead Time$8.90
56==== -
Viking Access VWEMICC Cable - EMI CommVKS-vwemicc VWEMICC• EMI Comm CableSee More Details
• 3-5 Day Lead Time$31.00
