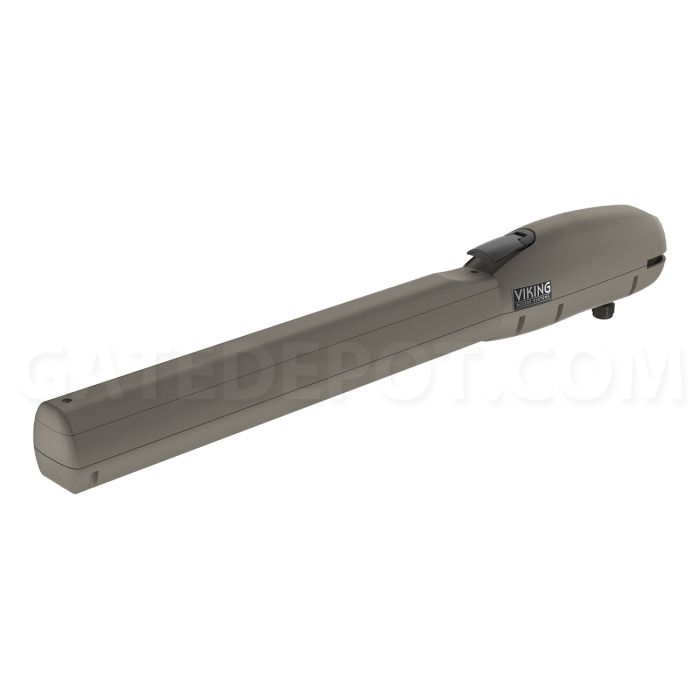

Viking Access E4 Linear Arm Operator
• 10' x 850 Lbs / 16' x 550 Lbs
• 120/220VAC Power Source or 24VDC Solar Compatible
• 24VDC Operational Voltage
• Opens 90° in 12-16 Seconds 135° Max
• 24VDC Battery Backup System w/ Batteries
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
• Additional Entrapment Prevention Devices REQUIRED
From $570.00
To $1,970.90
SKU
VKS-e4-bundle
Product Details
The new E-4™ Residential Swing Gate Operator leads the industry in being the best, most cost effective residential linear arm actuator. This new design allows for a maximum gate capacity of 850 Lbs
/10' or 550 Lbs
/16'. Featuring a convenient manual release handle and pre-wiring for an easy and quick installation. It is ready to be powered with low voltage wiring, allowing installation versatility and accuracy. The E-4™ offers a 3 year limited Manufacturer Warranty and UL compliance.
IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED
REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored "10K Resistor Based" sensor MUST be connected or OPERATOR WILL NOT RUN.
The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:
- Photoelectric Beam (non-contact sensor) - MILLER EDGE 10K Resistor based
- Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2

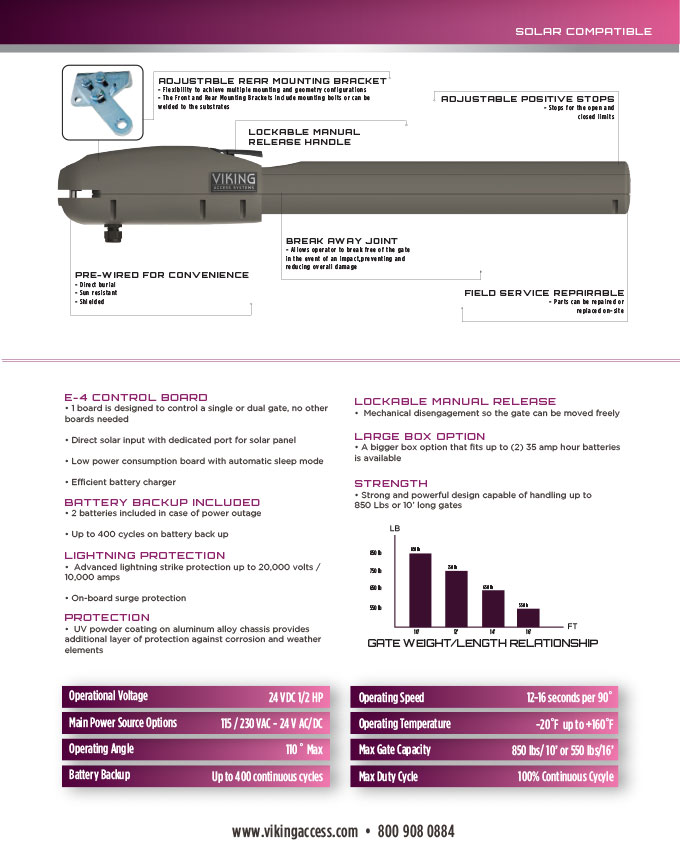

- E-4 Control Board – 1 board is designed to control a single or dual gate, no other boards needed
- Direct solar input with dedicated port for solar panel
- Low power consumption board with automatic sleep mode
- Efficient battery charger
- Battery Backup Included
- 2 batteries included in case of power outage
- Up to 400 cycles on battery back up
- Advanced lightning strike protection up to 20,000 volts / 10,000 amps
- On-board surge protection
- UV powder coating on aluminum alloy chassis provides additional layer of protection against corrosion and weather elements
- Mechanical disengagement so the gate can be moved freely
- Strong and powerful design capable of handling up to 850 Lbs or 10' long gates
- Operational Voltage – 24 VDC 1/2 HP
- Main Power Source Options – 115 / 230 VAC - 24 V AC/DC
- Operating Angle – 110° Max
- Battery Backup – Up to 400 continuous cycles
- Operating Speed – 12-16 seconds per 90°
- Operating Temperature – -20°F up to +160°F
- Max Gate Capacity – 850 lbs/ 10' or 550 lbs/16'
- Max Duty Cycle – 100% Continuous Cycyle
| Brand | Viking Access |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Emergency Access
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Safety & Sensor Accessories
- Power Supplies
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
35====
-
Viking Access DUBB12 Battery - SquareVKS-dubb12 DUBB12• Battery - SquareSee More Details
• 3-5 Day Lead Time$44.50
35==== -
Viking Access E4AC Access CoverVKS-e4ac E4AC• Access CoverSee More Details
• For E4
• 3-5 Day Lead Time$79.50
35==== -
Viking Access E4BC Bearing CapVKS-e4bc E4BC• Bearing CapSee More Details
• For E4
• 3-5 Day Lead Time$23.50
35==== -
Viking Access E4BMP3X4 Bracket Mounting Plate - 3" x 4"VKS-e4bmp3x4 E4BMP3X4• Bracket Mounting Plate - 3" x 4"See More Details
• For E4
• 3-5 Day Lead Time$28.50
35==== -
Viking Access E4BMP4X6 Bracket Mounting Plate - 4" x 6"VKS-e4bmp4x6 E4BMP4X6• Bracket Mounting Plate - 4" x 6"See More Details
• For E4
• 3-5 Day Lead Time$59.00
35==== -
Viking Access E4BTH Harness - BatteryVKS-e4bth E4BTH• Battery HarnessSee More Details
• For E4
• 3-5 Day Lead Time$33.25
35==== -
Viking Access E4CA Carrier AssemblyVKS-e4ca E4CA• Carrier AssemblySee More Details
• For E4
• 3-5 Day Lead Time$92.75
35==== -
Viking Access E4CBMP Board Mounting PlateVKS-e4cbmp E4CBMP• Board Mounting PlateSee More Details
• For E4
• 3-5 Day Lead Time$69.75
35==== -
Viking Access E4CL Casing - LowerVKS-e4cl E4CL• Casing LowerSee More Details
• For E4
• 3-5 Day Lead Time$166.50
35==== -
Viking Access E4CMB Bolts - Casing MountVKS-e4cmb E4CMB• Bolts - Casing MountSee More Details
• For E4
• 3-5 Day Lead Time$34.50
35==== -
Viking Access E4CMR Manual Release - CamVKS-e4cmr E4CMR• Manual Release - CamSee More Details
• For E4
• 3-5 Day Lead Time$34.50
35==== -
Viking Access E4CU Casing - UpperVKS-e4cu E4CU• Upper CasingSee More Details
• For E4
• 3-5 Day Lead Time$205.75
35==== -
Viking Access E4DB Dust Brush SetVKS-e4db E4DB• Dust Brush SetSee More Details
• For E4
• 3-5 Day Lead Time$137.50
35==== -
Viking Access E4FSKT Fuse KitVKS-e4fskt E4FSKT• Fuse KitSee More Details
• For E4
• 3-5 Day Lead Time$22.75
35==== -
Viking Access E4GBC Chassis - GearboxVKS-e4gbc E4GBC• Gearbox ChassisSee More Details
• For E4
• 3-5 Day Lead Time$132.25
35==== -
Viking Access E4GDA Gear Drive AssemblyVKS-e4gda E4GDA• Gear Drive AssemblySee More Details
• For E4
• 3-5 Day Lead Time$230.75
35==== -
Viking Access E4GGC Grease CupVKS-e4ggc E4GGC• Grease CupSee More Details
• For E4
• 3-5 Day Lead Time$27.75
35==== -
Viking Access E4HMR Manual Release - HandleVKS-e4hmr E4HMR• Manual Release - HandleSee More Details
• For E4
• 3-5 Day Lead Time$33.75
35==== -
Viking Access E4KEY Manual Release - KeyVKS-e4key E4KEY• Manual Release - KeySee More Details
• For E4
• 3-5 Day Lead Time$12.75
35==== -
Viking Access E4LA Level AssemblyVKS-e4la E4LA• Level AssemblySee More Details
• For E4
• 3-5 Day Lead Time$23.50
35==== -
Viking Access E4LMR Manual Release - Lock & KeysVKS-e4lmr E4LMR• Manual Release - Lock & KeysSee More Details
• For E4
• 3-5 Day Lead Time$18.75
35==== -
Viking Access E4LPS Limit Positive StopVKS-e4lps E4LPS• Limit Positive StopSee More Details
• For E4
• 3-5 Day Lead Time$105.00
35==== -
Viking Access E4LSA Leadscrew AssemblyVKS-e4lsa E4LSA• Leadscrew AssemblySee More Details
• For E4
• 3-5 Day Lead Time$252.00
35==== -
Viking Access E4MBB Mounting Bracket - BackVKS-e4mbb E4MBB• Mounting Bracket - BackSee More Details
• For E4
• 3-5 Day Lead Time$33.00
35==== -
Viking Access E4MBF Mounting Bracket - FrontVKS-e4mbf E4MBF• Mounting Bracket - FrontSee More Details
• For E4
• 3-5 Day Lead Time$46.75
35==== -
Viking Access E4MHB Mounting Hardware - BackVKS-e4mhb E4MHB• Mounting Hardware - BackSee More Details
• For E4
• 3-5 Day Lead Time$42.00
35==== -

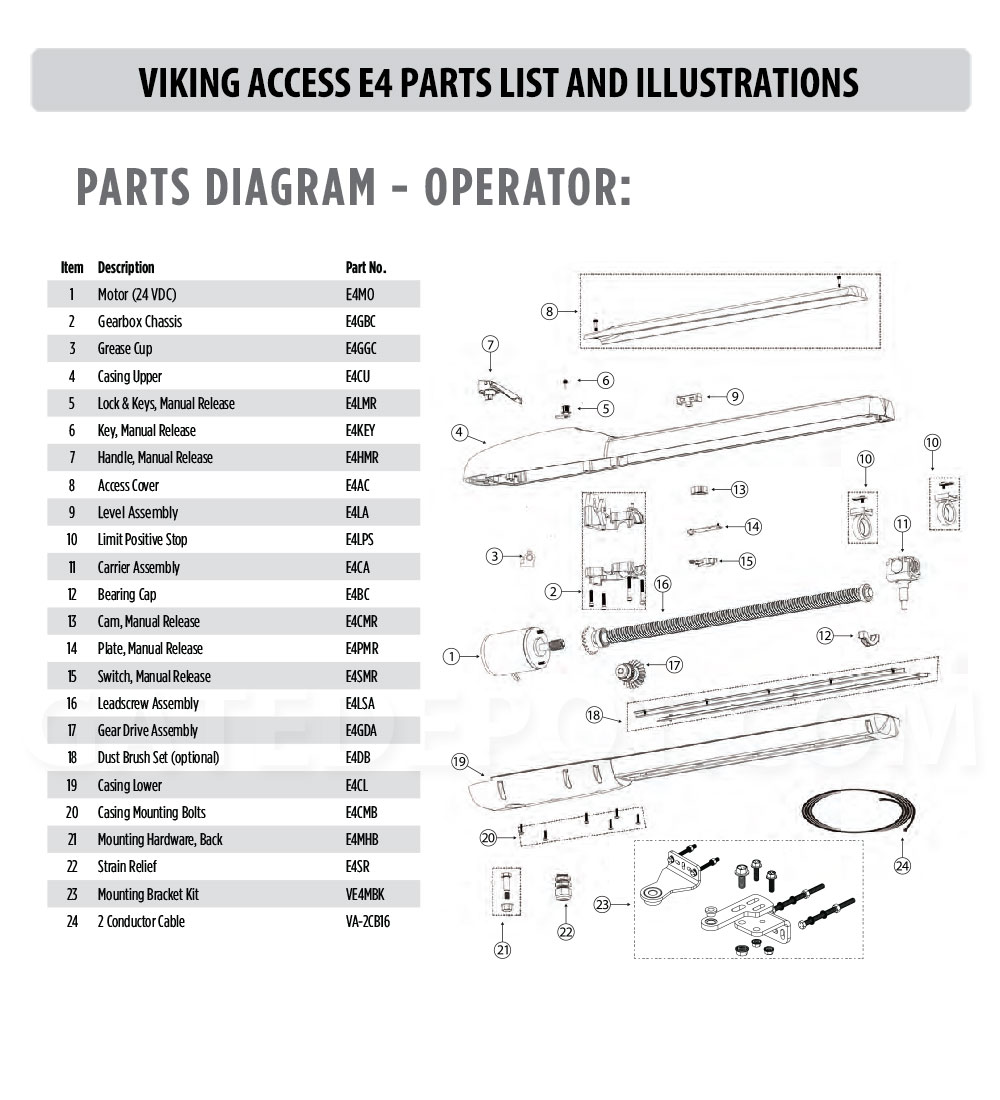

Viking Access E4MO Motor - 24VDCVKS-e4mo E4MO• Motor - 24VDCSee More Details
• For E4
• 3-5 Day Lead Time$143.50
35==== -
Viking Access E4PH Harness - PowerVKS-e4ph E4PH• Power HarnessSee More Details
• For E4
• 3-5 Day Lead Time$23.50
35==== -
Viking Access E4PMR Manual Release - PlateVKS-e4pmr E4PMR• Manual Release - PlateSee More Details
• For E4
• 3-5 Day Lead Time$23.50
35==== -
Viking Access E4SMR Manual Release - SwitchVKS-e4smr E4SMR• Manual Release - SwitchSee More Details
• For E4
• 3-5 Day Lead Time$56.50
35==== -
Viking Access E4SR Strain ReliefVKS-e4sr E4SR• Strain ReliefSee More Details
• For E4
• 3-5 Day Lead Time$21.75
35==== -
Viking Access PT24V1A Transformer - Plug-InVKS-pt24v1a PT24V1A• Plug-In TransformerSee More Details
• For E4
• 3-5 Day Lead Time$39.25
35==== -
Viking Access VA-402CB16 Secondary Harness - E4VKS-va-402cb16 VA-402CB16• 2 ConductorsSee More Details
• 16 AWG
• 40' section
• Gate Depot recommends that all low voltage wire runs be separated from High voltage by 18" or more
• Gate Depot recommends avoiding wire nuts when making low voltage wire connections/splices
• For E4
• 3-5 Day Lead Time$60.50
35==== -

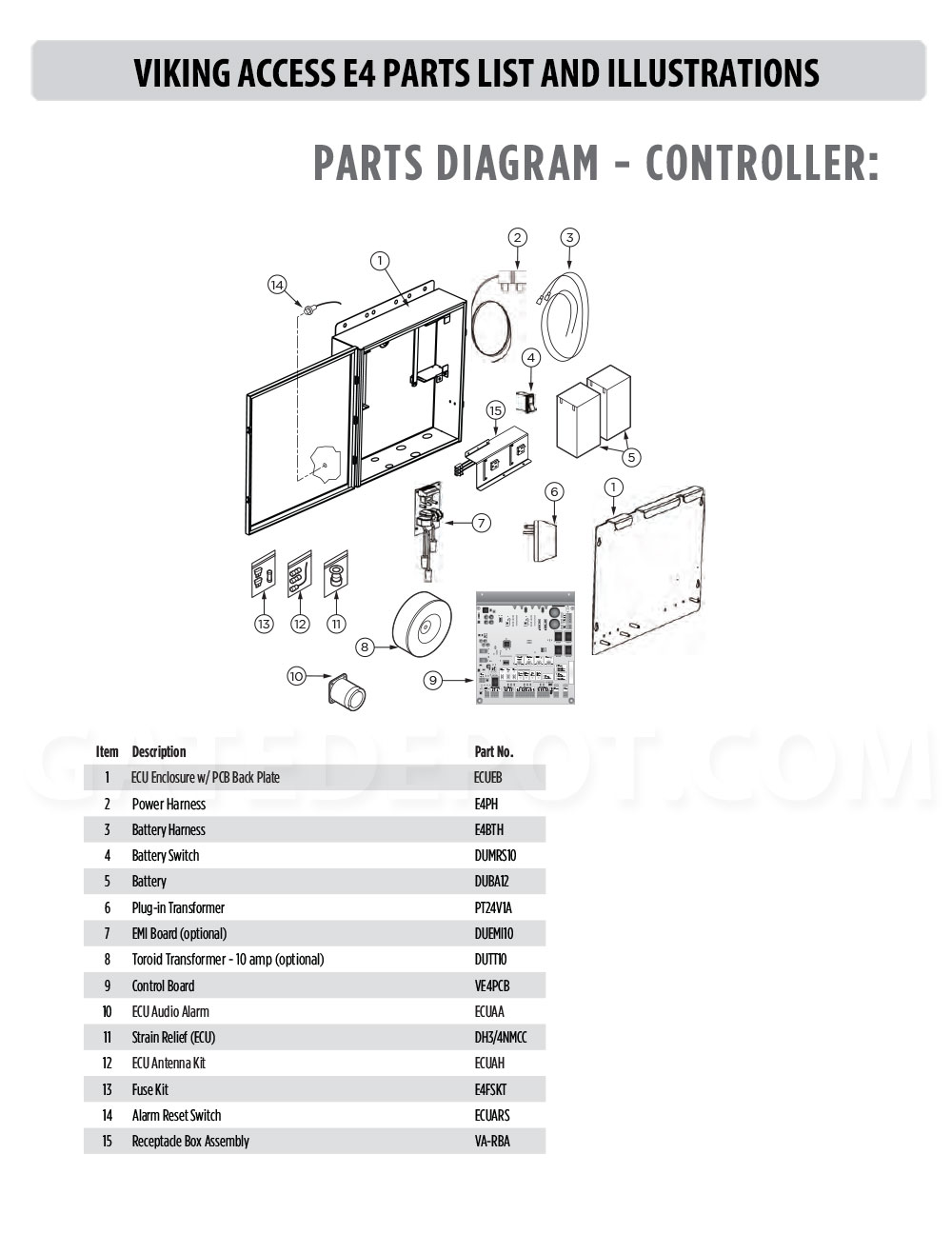

Viking Access VE4PCB Control BoardVKS-ve4pcb VE4PCB• Control BoardSee More Details
• For E4
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$578.00
35==== -

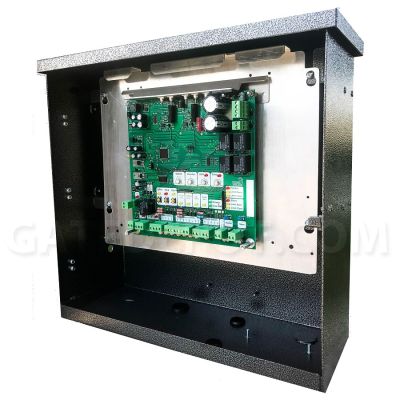

Viking Access VNXECUBB Chassis - ECU CabinetVKS-vnxecubb VNXECUBB• ECU Cabinet ChassisSee More Details
• 3-5 Day Lead Time$219.00
