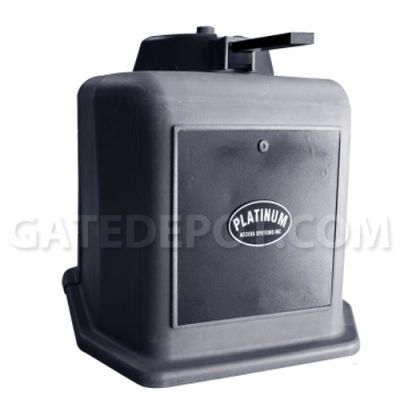

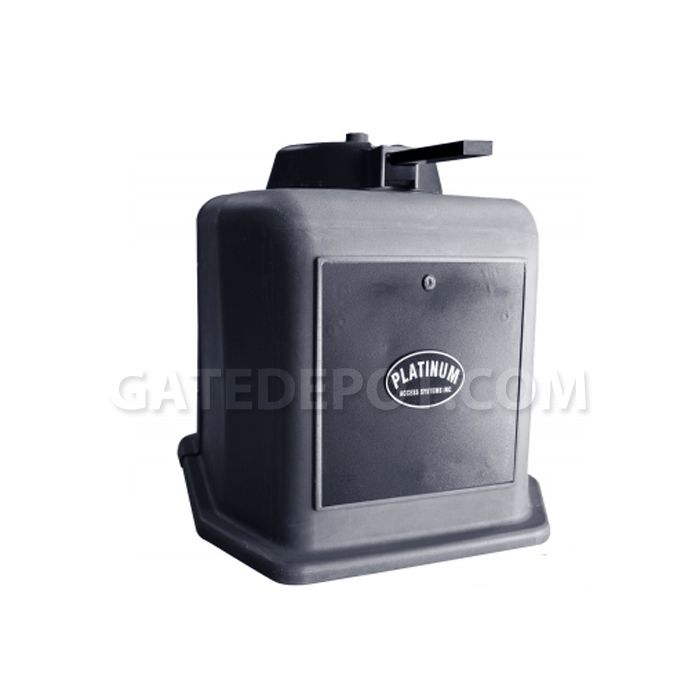

Platinum Access BLSW2212 Swing Gate Operator
From $1,859.00
To $3,223.70
Product Details
This heavy-duty commercial swing gate operator is equipped with a powerful, quiet, brushless DC motor and operates on 24 volt DC power. In addition, this gate operator is built with a long-lasting, 33Ah 24V DC battery backup system that keeps the gate operational when AC power is unavailable.
The BLSW2212 is the first choice in heavy-duty commercial swing gate applications because of its many features. First, this full feature state-of-the-art operator uses a 120/220V AC, single-phase main power source, and a unique maintenance-free, brushless DC motor.
Since the DC motor is brushless, there is no need to replace any brushes; whereas the brushed DC motor will eventually require brush replacement. The brushless DC motor is quiet, powerful, and designed to last up to 10 times longer than the conventional brushed DC motor. Moreover, the brushless DC motor's typical life expectancy is between 10,000 and 20,000 working hours, compared to the conventional brushed DC motor's 2,000 to 5,000 working hours, which is significant in terms of life expectancy due to the quality and design of our product.
Note, this BLSW2212 model can operate with a direct solar panel connection, as an optional addition.
The operator is also equipped with a built-in powerful 24V DC battery backup system that uses two 12V, 7Ah lead acid batteries. With this, there is more than enough power to keep the gate operational until AC power is available again.
This operator is designed to operate in any climate:
- It does not require a gearbox or a battery heater to operate above –20°F.
- Temperatures –20°F and –40°F require a battery heater
- Temperatures below –40°F requires a gear box and battery heaters.
The optional chain routing under the sprocket is for extra chain clearance for non-raised pad mounting.
These unique engineering innovations are backed by the safety and reliability of the most advanced control board in the industry to ensure a smooth operation for any Platinum Access Systems operator.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

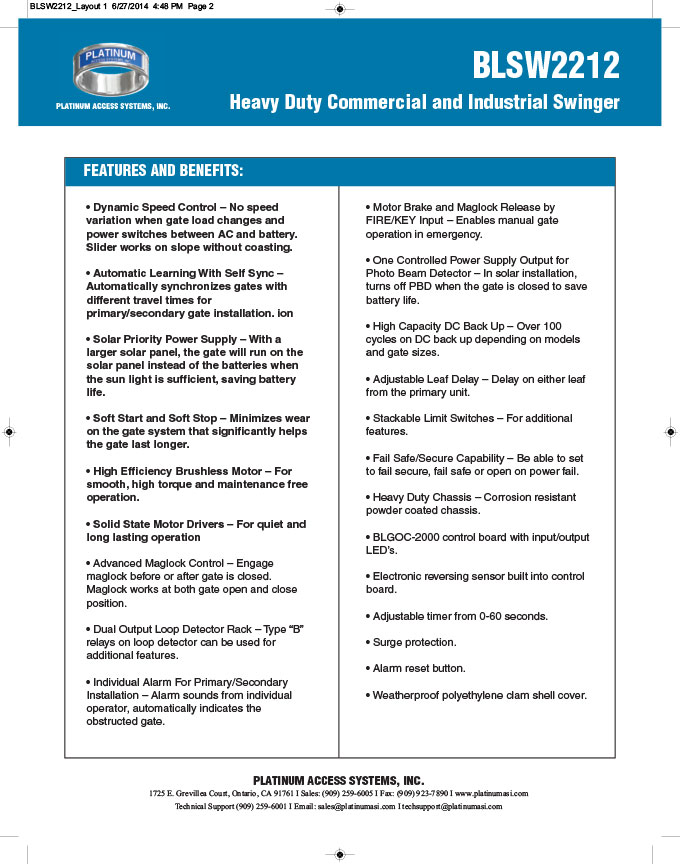

- Continuous Duty
- Capacity 2,200 Lbs. x 12 ft / 1,300 Lbs x 20 ft.
- Dynamic Speed Control – No speed variation when gate load changes and power switches between AC and battery
- Automatic Learning With Self Sync – Automatically synchronizes gates with different travel times for primary/secondary gate installation
- Solar Priority Power Supply – With a larger solar panel, the gate will run on the solar panel instead of the batteries when the sun light is sufficient, saving battery life
- Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
- High Efficiency Brushless Motor – For smooth, high torque, and maintenance free operation
- Solid State Motor Drivers – For quiet and long lasting operation
- *High Capacity DC Backup – Over 100 Cycles on DC Backup Depending on Model & Gate Size - 2 7AmpHr 12VDC Batteries Included
- Advanced Maglock Control
- Dual Output Loop Detector Rack
- Individual Alarm for Primary/Secondary Installation
- Motor Brake & Maglock Release by FIRE/KEY Input
- One Controlled Power Supply Output for Photo Beam Detector
- Adjustable Leaf Delay
- Stackable Limit Switches
- Fail Safe / Secure Compatibility
- Heavy Duty Chassis with Weatherproof Polyethylene Cover
- Electronic Reversing Sensor Built Into Control Board
- Adjustable Timer 0 – 60 Seconds
- Surge Protection
- Alarm Reset Button
- Operating Temperature: -20°C (-4°F) to 70°C (158°F)
- *8-Year Motor / 8-Year Parts Manufacturer Warranty – Residential : 8-Year Motor / 6-Year Parts Manufacturer Warranty – Commercial
| Brand | Platinum Access Systems |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety Edges
- Wire & Cable
- All Products
- Google Feed

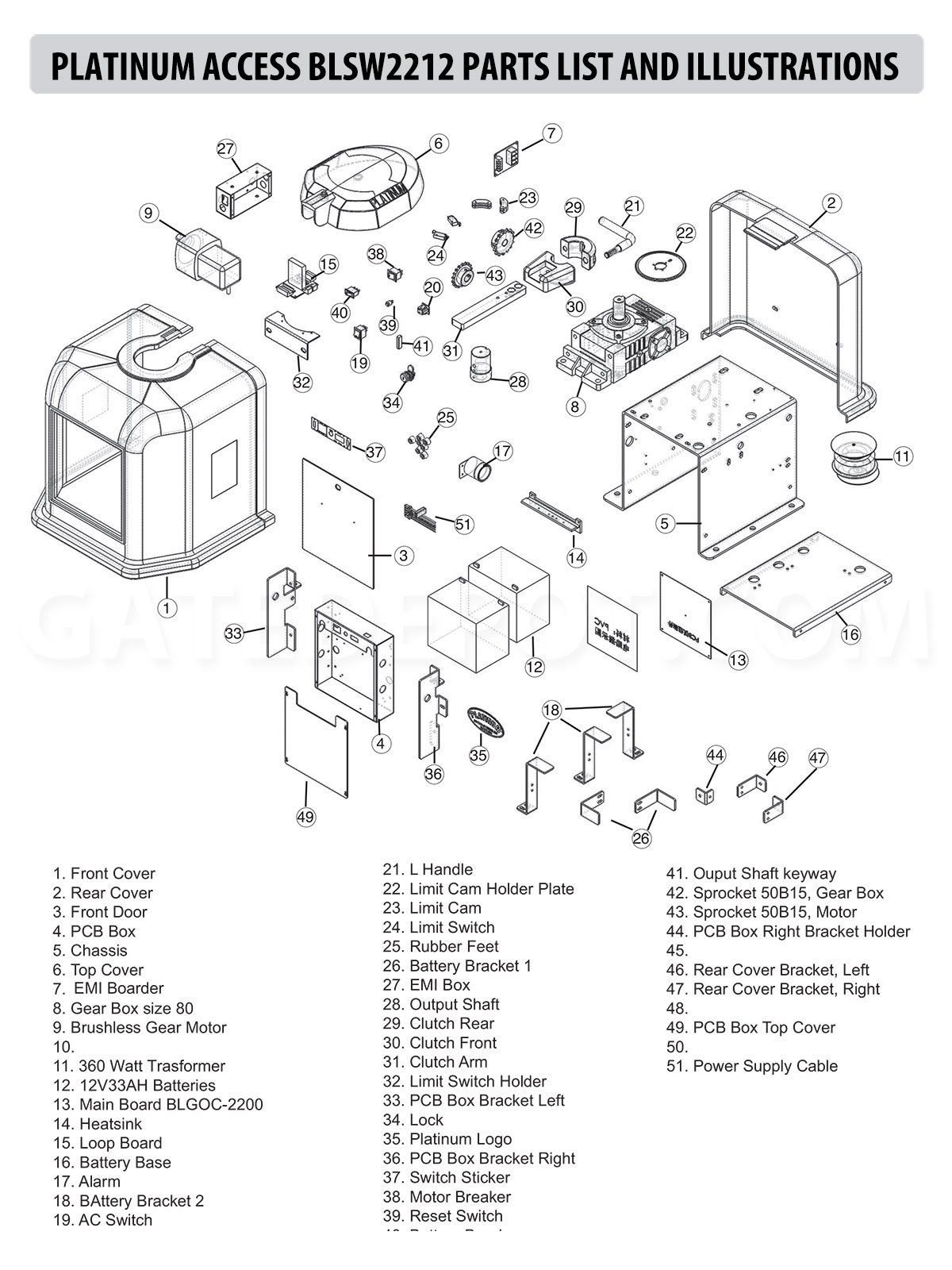

Product Manuals

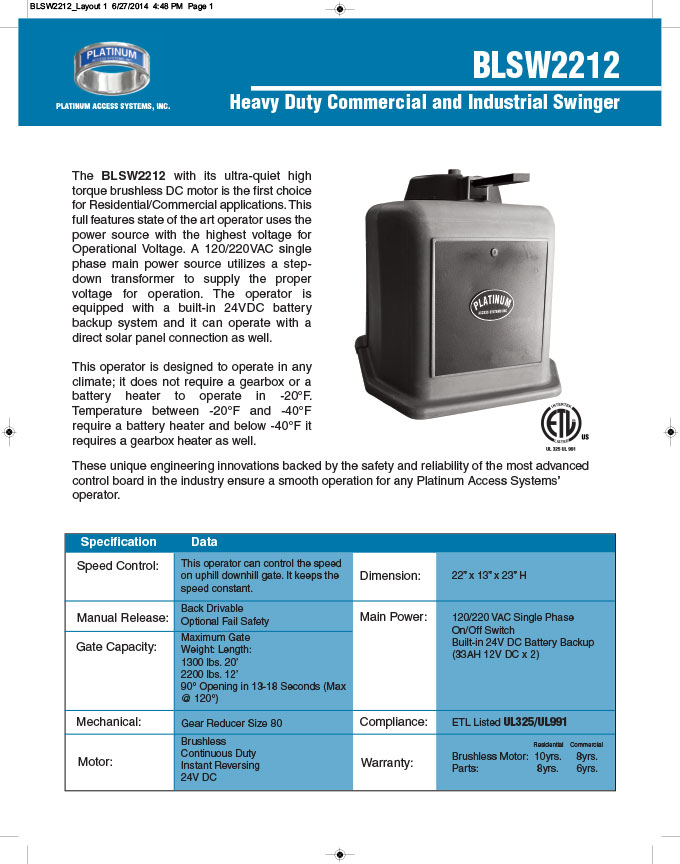

Product Brochures
