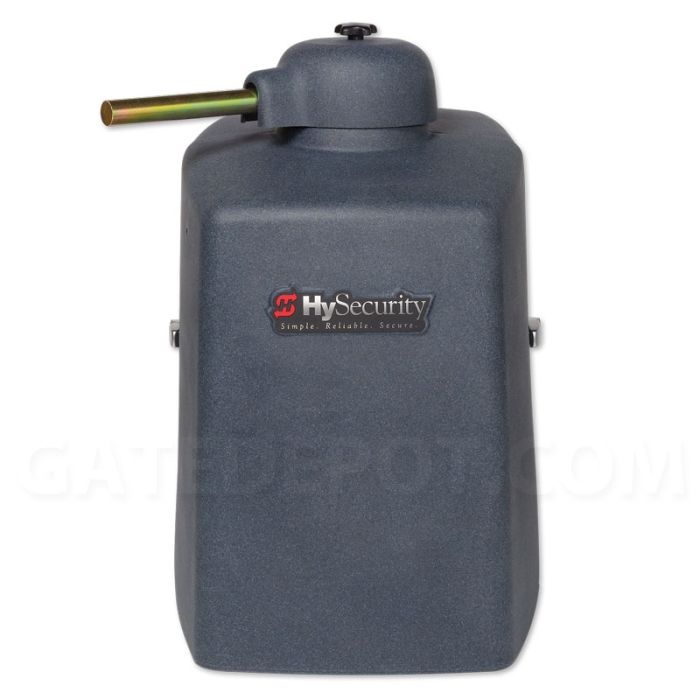

Nice HySecurity SWINGSMART-DC-20 Swing Gate Operator
Choose AC or Solar
• 12' x 1,300 Lbs / 20' x 600 Lbs
• 115/208/230VAC Power Source or 24VDC Solar
• 24VDC Operational Voltage
• Opens 90° ~ 10 to 15 Seconds
• AC Continuous Duty / Solar 100 Cycles per Day
• 24VDC Battery Backup System w/ Two 8Ah Batteries
• Up To 4,000' of gate travel on Battery Backup Operation
• Includes EMX IRB-MON Photo Eye
• 5-Year Commercial/7-Year Residential Limited Manufacturer Warranty
• 3-4 Week Lead Time
• MADE IN USA
• No Additional Tariff Fees
From $2,860.00
To $6,739.75
SKU
HYS-swingsmart-dc-20-bundle
Product Details
- Duty Cycle: Continuous
- Drive: Electromechanical
- Open/Close Time: Open/Close speed set independently. Adjustable 10 to 15 seconds
- Gate Length Maximum: 20 ft (6 m)
- Gate Weight Maximum: 12' - 1,300 lb / 16' - 800 lb / 20' - 600 lb
- UPS Battery Backup Cycles: Field confi gurable to fail open or secure if batteries deplete. Standard battery backup cycles: Two 8Ah batteries. Up to 300 cycles after AC power loss. Extended battery backup cycles: Two 50Ah batteries. Up to 1,200 cycles after AC power loss.
- Temperature Rating: -13° to 158° F (-25° to 70° C)
- Operating Voltage: 24VDC
- Input Voltage: 115V or 208-230V 60/50Hz or 24VDC solar panels - 40W minimum
- Accessory Power: 12VDC and 24VDC 1A each
- Included Accessories: One premium EMX IRB-MON photo eye and two 8Ah batteries for backup power
- Communication: USB, RS-232, RS-485
- User Controls: Smart DC Controller with 70+ confi gurable settings. 32 character LCD display and 5 tact buttons or a PC using S.T.A.R.T. software.
- Relays: Two configurable user relays: 30VDC, 3A solid state and 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs
- Finish: Zinc plated chassis; polyethylene clam shell cover
- ETL Listed (UL 325): Usage Class I, II, III, IV
- Cycle Tested: 500,000 cycles
- Warranty: 5 year (7 year single-family residential) w/product registration
| Brand | Nice HySecurity |
|---|
Showcased Accessories
- Gate Locks
- Gate Operator Accessories
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Timers & Relays
- Emergency Access
- Loops
- Photo Eyes
- Safety Edges
- Warning Devices
- Power Supplies
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
40====
-
Nice HySecurity MX000346 Lithium Battery - 3VHYS-mx000346 MX000346• Controller Battery, 3 Volt, LithiumSee More Details
• For Smart Touch Controller / Smart Touch DC Controller
• For StrongArm | SlideDriver | SwingRiser
• 3-4 Week Lead Time
• No Additional Tariff Fees$8.50
40==== -
Nice HySecurity MX001036 Piezo BuzzerHYS-mx001036 MX001036• Alarm, Piezo Buzzer, "warn before operate"See More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$66.00
40==== -
Nice HySecurity MX001179 Antenna and Coax CableHYS-mx001179 MX001179• Radio Antenna and Coax CableSee More Details
• For single and dual channel receivers
• 3-4 Week Lead Time
• No Additional Tariff Fees$61.25
40==== -
Nice HySecurity MX001395 Motor - 24VDCHYS-mx001395 MX001395• 24VDC Electric MotorSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$439.25
40==== -
Nice HySecurity MX001403 Pulley - Drive Belt / 24THYS-mx001403 MX001403• 24T Drive Belt Pulley Mounts to Motor Input ShaftSee More Details
• 9mm wide
• Includes Set Screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$76.50
40==== -
Nice HySecurity MX001404 Pulley - Drive Belt / 36THYS-mx001404 MX001404• 36T Drive Belt Pulley Mounts to Gearbox Input ShaftSee More Details
• Includes Set Screws
• For SlideSmart DC 10F, SwingSmart DC, StrongArmPark DC and WedgeSmart DC models
• 3-4 Week Lead Time
• No Additional Tariff Fees$104.50
40==== -
Nice HySecurity MX001658 Bracket - Limit SwitchHYS-mx001658 MX001658• SwingSmart Limit Switch BracketSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$51.00
40==== -
Nice HySecurity MX001694 Bushing - BronzeHYS-mx001694 MX001694• Bronze bushingSee More Details
• 0.5 ID x 0.62 inch
• Note: SwingSmart DC requires 4, StrongArmPark DC Articulating requires 2, WedgeSmart DC requires 1
• 3-4 Week Lead Time
• No Additional Tariff Fees$5.60
40==== -
Nice HySecurity MX001695 Rod End - Ball JointHYS-mx001695 MX001695• Ball joint rod end for linkage arm assembly at gate attachment pointSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$42.00
40==== -
Nice HySecurity MX001703 KnobHYS-mx001703 MX001703• Knurled knob to hold down top capSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$23.25
40==== -
Nice HySecurity MX001743 Clamp AssemblyHYS-mx001743 MX001743• SwingSmart DC taper clamp assemblySee More Details
• Includes male and female hubs plus all tightening hardware
• 3-4 Week Lead Time
• No Additional Tariff Fees$308.50
40==== -
Nice HySecurity MX001744 BeltHYS-mx001744 MX001744• Gearbox to motor drive belt, 95T, SwingSmart DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$28.00
40==== -
Nice HySecurity MX001745 Limit Assembly?HYS-mx001745 MX001745• Assembly for SwingSmart DCSee More Details
• Includes limit plate, 2 limit blocks, and hardware
• Parts not sold separately
• 3-4 Week Lead Time
• No Additional Tariff Fees$44.00
40==== -
Nice HySecurity MX001746 Cover - Top CapHYS-mx001746 MX001746• SwingSmart top cap cover onlySee More Details
• Note: Knob not included
• 3-4 Week Lead Time
• No Additional Tariff Fees$101.75
40==== -
Nice HySecurity MX001753 Harness - Limit SwitchHYS-mx001753 MX001753• Wiring harness for SwingSmart DC limit switchSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$50.00
40==== -
Nice HySecurity MX001760 Circuit Breaker - 15 AmpHYS-mx001760 MX001760• 15 Amp Circuit Breaker for Solar Powered OperatorSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
40==== -
Nice HySecurity MX001761 Switch - On/OffHYS-mx001761 MX001761• On/Off SwitchSee More Details
• Double Pole, Single Throw
• 3-4 Week Lead Time
• No Additional Tariff Fees$17.50
40==== -
Nice HySecurity MX001766 Switchable Power Supply Board - 115/230VACHYS-mx001766 MX001766• 115/230 VAC Switchable Power Supply BoardSee More Details
• Toggle Switch to Choose Voltage
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$92.75
40==== -
Nice HySecurity MX001777 Limit SwitchHYS-mx001777 MX001777• Limit switchSee More Details
• For StrongArm and SwingSmart DC
• Also used with manual override hand wheel on WedgeSmart DC
• 3-4 Week Lead Time
• No Additional Tariff Fees$36.00
40==== -

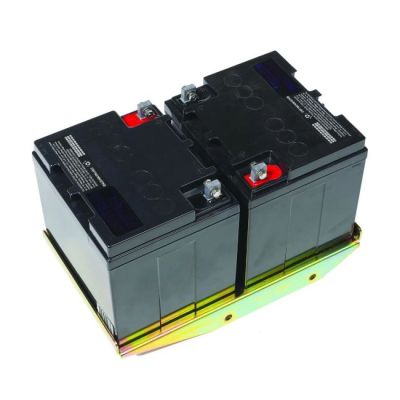

Nice HySecurity MX001810 Extended Battery Backup KitHYS-mx001810 MX001810• Extended battery backup conversion kitSee More Details
• Includes two 50AH batteries, mounting bracket, hardware, and wiring
• 3-4 Week Lead Time
• No Additional Tariff Fees$881.00
40==== -
Nice HySecurity MX001815 Cover - Linkage Arm Pinch / Upper & LowerHYS-mx001815 MX001815• Upper and lower linkage arm pinch protection covers for older style arms (MX002818)See More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$32.00
40==== -
Nice HySecurity MX001920 Brush KitHYS-mx001920 MX001920• 24VDC Motor Brush KitSee More Details
• Replacement Brush Kit for 24 VDC Motor
• Includes 4 Brushes
• 3-4 Week Lead Time
• No Additional Tariff Fees$75.75
40==== -
Nice HySecurity MX001926 Cover KitHYS-mx001926 MX001926• SwingSmart DC cover kitSee More Details
• Includes front and rear cover, top cap, locks, and fasteners
• 3-4 Week Lead Time
• No Additional Tariff Fees$437.50
40==== -
Nice HySecurity MX001933 Clamp Handle & HardwareHYS-mx001933 MX001933• Clamp handle and hardware for tightening taper clamp assemblySee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$81.00
40==== -
Nice HySecurity MX001937 KeysHYS-mx001937 MX001937• Spare set of 2 keys for SwingSmart cover locksSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$13.00
40==== -
Nice HySecurity MX002005 GearboxHYS-mx002005 MX002005• Gearbox with hydraulic fluid for SwingSmart DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$676.00
40==== -
Nice HySecurity MX002006 Limit Switch KitHYS-mx002006 MX002006• SwingSmart DC Limit Switch KitSee More Details
• Includes 2 limit switches and 4 mounting screws
• 3-4 Week Lead Time
• No Additional Tariff Fees$39.00
40==== -
Nice HySecurity MX002008 Battery Kit - 8AhHYS-mx002008 MX002008• Two 12V, 8Ah batteriesSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$125.75
40==== -
Nice HySecurity MX002013 Battery Kit - 50AhHYS-mx002013 MX002013• Two 12-V, 50Ah batteries for optional extended battery backup kitSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$554.00
40==== -
Nice HySecurity MX002124 Switch - Internal ResetHYS-mx002124 MX002124• Red Internal Reset SwitchSee More Details
• Mounts to Electrical Enclosure
• Includes two Washers
• 3-4 Week Lead Time
• No Additional Tariff Fees$38.75
40==== -
Nice HySecurity MX002798 TransformerHYS-mx002798 MX002798• TransformerSee More Details
• 115/208/230VAC input
• 31VAC output or 24VAC nominal output
• 3-4 Week Lead Time
• No Additional Tariff Fees$366.25
40==== -
Nice HySecurity MX002874 Latch Lock w/ KeyHYS-mx002874 MX002874• Latch lock with key for SwingSmart DCSee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$78.25
40==== -
Nice HySecurity MX3037-0 Control BoardHYS-mx3037-0 MX3037-0• Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type when installing in operator
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$485.00
40==== -
Nice HySecurity MX3037R-0 Control Board - ReconditionedHYS-mx3037r-0 MX3037R-0• Reconditioned Smart DC Controller Board, universal programmingSee More Details
• Note: Must program operator type and input power type when installing in operator
• Reconditioned parts carry the same Manufacturer Warranty as new replacement parts
• Call for availability
• 3-4 Week Lead Time
• No Additional Tariff Fees
• Circuit Boards are Non Returnable$403.25
40==== -
Nice HySecurity MX4018 Edge Sensor Module - N/C AdapterHYS-mx4018 MX4018• Wired Edge Sensor N/C adapter (Hy2NC™), 2 channelSee More Details
• Note: Each channel will allow N/C monitoring of one wired Edge Sensor with an 8.2k or 10k resistor
• 3-4 Week Lead Time
• No Additional Tariff Fees$96.25
40==== -
Nice HySecurity MX3796 Circuit Breaker - 5AHYS-mx3796 MX3796• Circuit Breaker, 5ASee More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$18.50
40==== -
Nice HySecurity MX4005 Gate Arm AssemblyHYS-mx4005 MX4005• Next Gen universal gate arm assemblySee More Details
• Elliptical arms, no pinch covers required
• For left and right handing Swing gates
• 3-4 Week Lead Time
• No Additional Tariff Fees$275.00
40==== -
Nice HySecurity MX4535 Service Kit - Arm Hinge JointHYS-mx4535 MX4535• Service kit for rebuilding the arm hinge joint on universal gate arm (MX4005)See More Details
• 3-4 Week Lead Time
• No Additional Tariff Fees$33.75
40==== -
Nice HySecurity MX4575 Set Screw - 10 PackHYS-mx4575 MX4575• Set-screw, Universal Arm hinge stopSee More Details
• Set of 10
• For the SwingSmart DC
• 3-4 Week Lead Time
• No Additional Tariff Fees$38.50
40==== -
Nice HySecurity MX4621 Hy5B™ 2.0 Loop DetectorHYS-mx4621 MX4621• Improved loop detector module with digital interface to SmartCNX and all other HySecurity controllersSee More Details
• Automatically sets sensitivity
• Automatically compensates for gate movement
• Advanced loop diagnostics
• Note: CNX operators not compatible with MX4125 vehicle detector
• 3-4 Week Lead Time
• No Additional Tariff Fees$232.00
