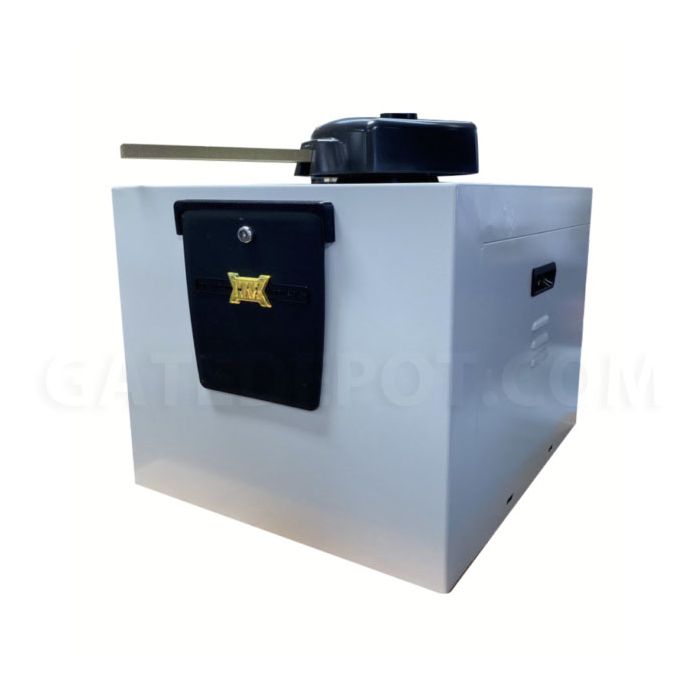

Maximum Controls MEGATRON TANK Swing Gate Operator - Commercial

SUPER HEAVY DUTY 4500 LBS CAPACITY

High-traffic Commercial Brusless DC Swing Gate Operator - The Maximum Level of Gate Control

Maximum Controls' solar operation capabilities are truly unmatched by any of our competition. The first gate operator manufacturer in the world to introduce expandable solar installation capabilities continues in its quest to produce the next generation in solar powered gate technology.

With the introduction of the Matrix lll PRO Series control board, all Maximum Controls pad mount gate operators became solar ready. In solar mode (sleep mode) with a Solar Power Pack installed, the PRO series machines excel in commercial as well as residential applications nationwide. With the Solar Combiner up to 4 Solar Power Packs with 200w solar panels can be wired together to form a single ended 24VDC supply source. This UL approved expandable feature is only available from Maximum Controls.

MEGATRON TANK Mechanical Specifications

• Max Megatron Tank dimensions (19.25 W x 23 D x 25 H) 22.5 arm height
• Heavy duty dual gear box 900:1 Size 100 for Megatron Tank – 120 lbs.
• Megatron Tank capacity 4500lbs /10ft or 3000lbs/30ft
• Large output shaft: 31⁄4" diameter solid steel with cast iron clamping system for all Megatron
• Direct gear drive (no chains, belts, or pulleys)
• Mechanical and electrical manual gate release functions
• Corrosion protection gold zinc coating and powder coating
• Continuous cycle at extreme temperature range; no overheating possibilities
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Shipping weight of Max Megatron Tank (323 lbs)

MEGATRON TANK Electrical Specifications

• 24V Brushless DC motor equivalent to 2.5 HP AC motor
• Programmable gate speed controls, 16 selectable speeds – gate speed 11.5 to 20 seconds for opening and closing
• Automatic gate position reset system
• Gate sync feature provides automatic gate movement synchronization
• Modular system design for ease of service
• Switchable 115/230 voltage selection and solar option
• Adaptive DSP control for advanced brushless DC motion control
• Real time performance analyzer and event log (OBD PORT and Black Box)
• Low voltage wiring capabilities for remote power up 500 ft (no battery needed)
• 'Solar Ready' battery module with built-in advanced solar regulator – optional Max solar pack
• Intelligent power management system with energy saver mode
• Built-in 12vdc and 24vdc outputs power
• Gold contact input connections and automobile grade connectors
• Selectable open timer 0 to 60 seconds with 'timer off' option
• -4oF to 158oF (-20oC to +70oC) operational temperature range including battery performance without needing a heater
• Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 channels) including loop detector input connections
• Tunable 16-position safety obstruction sensor, auto adaptable to gate weight and size
• Dual motor overcurrent safety shut-off for additional protection
• Every operator includes a batterries providing 200 cycles (dependent on gate site) in case of power failure
• Three modes of selectable battery backup functions
• State machine design electronics with ultra-fast microprocessor
• On-board three button station

MEGATRON TANK Security Specifications

• High-traffic intuitive loop management system for better security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper alert relay output triggers "on" if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for higher security
• Lockable cover with key lock release to prevent intruders and vandalism
• Gate disable feature, disables all inputs with exception of the fire department input for high security
• Built-in transaction buffer for higher security
• Gate status outputs for gate monitoring
• Direct motor control of jog OPEN/CLOSE for manually moving a gate in case of emergency
• Advanced anti-tailgate features to provide higher security
• No need for magnetic lock with the robust output shaft and clamp design of the Megatron Tank

MEGATRON TANK Safety Specifications

• Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings
• UL 325/991 compliant Class I, II, III, and IV. CSA approved
• Pinch arm protection design
• Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions
• Built-in advanced entrapment protection and alarm output
• Built-in gate-in-motion alarm for industrial applications
