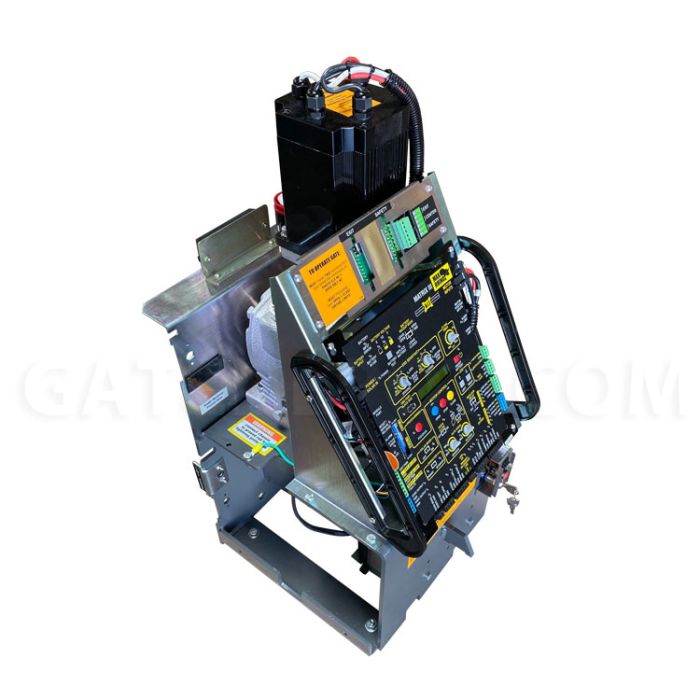

Maximum Controls MAX RHINO-5500 Slide Gate Operator - Industrial
Product Details
HIGH TRAFFIC HEAVY DUTY INDUSTRIAL 24 V BRUSHLESS DC SLIDE GATE OPERATOR. MAXIMUM GATE WEIGHT 5500 LBS.
Fail secure; cannot be back-driven upon complete power loss.
Max Rhino 5500 brushless DC sliding gate operator is a solar ready, size 50 chain powerhouse that upon complete power failure can not be back driven, fail secure. If security is an issue, our patented chain drop can trigger an alarm wirelessly, silently. Our lockable steel covers can limit unwanted program changes by the wrong personnel. Capable of continuous duty cycles to meet the high demands of industry. Full battery back up and emergency jog function allows entry in case of UL failure. These and many more features make the Max Rhino 5500 the perfect slide gate operator for your most demanding commercial projects. Class lll and lV only.
Maximum Controls' solar operation capabilities are truly unmatched by any of our competition. The first gate operator manufacturer in the world to introduce expandable solar installation capabilities continues in its quest to produce the next generation in solar powered gate technology.
With the introduction of the Matrix lll PRO Series control board, all Maximum Controls pad mount gate operators became solar ready. In solar mode (sleep mode) with a Solar Power Pack installed, the PRO series machines excel in commercial as well as residential applications nationwide. With the Solar Combiner up to 4 Solar Power Packs with 200w solar panels can be wired together to form a single ended 24VDC supply source. This UL approved expandable feature is only available from Maximum Controls.
RHINO-5500 Features
- Built-in battery backup
- 2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles
- Operator does not rely on the batteries when AC power is present
- On board diagnostic logs 8000 past events, large LCD display
- Shows current and past errors and info
- Dynamic braking system, on incline applications
- Audible alarm and relay out trigger when unauthorized entry (push back) is attempted
- Brushless DC Motor equivalent to 2 1/2 HP AC motor
- Gate capacity 5500 lbs
- 3-year warranty on gate operator
- Battery 1-year warranty
- Motor overcurrent safety shutoff for additional protection
- Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)
- Lightning Protection Advanced lightning strike protection up to 20,000 Volts/10,000 amp
- Continuous duty cycles at extreme temperature range -4°F to 165°F (-20°C to +74°C) operational temperature range including battery performance without needing a heater
- Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)
- UL 325/991 compliant Class III, and IV. CSA approved
- Rhino Slide Gate Operator dimensions (14.5" W x 19 .625" D x 29" H) weight 225 lbs
- The chain tray can be used on this gate operator
- Chain #50 nickel plated - 30 ft included
- Independent open and closing speed control, adjustable from 8" per second to 12" per second
- The jog key feature on the Rhino is used for emergency opening or closing. Think of the jog circuit as a single trace from key to power source to motor. The jog input can also be connected a latched relay on your keypad for emergency opening of the sliding gate due to UL2018 open device failure.
- Programmable virtual limit standard
- Optional magnetic limit sensors available
- Gate status outputs for gate monitoring/Gate Open or Close
- Power options Input 115V/230V AC single phase
- Solar panel compatible (24V DC)
At Maximum Controls we sell our gate operators and entry systems to distributors who work with experienced installers. We will not assist with tech support and the warranty will be void if anyone other one than a professional gate installer, installs the gate operator.
Our tech support and warranties only apply when installed by industry professionals. Maximum Controls operators are not designed for do-it-yourself users, homeowners, electricians, maintenance personnel, etc.
Gate Depot recommends all Maximum Controls installations be performed by certified gate professionals and cannot guarantee Maximum Controls will honor the warranty if this condition is not met.
