Maximum Controls MAX 1700 FS PRO Slide Gate Operator - Commercial / Industrial - Fail-Safe

FAIL SAFE HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

Fail safe, back drivable manual operation upon loss of AC power or battery depletion.

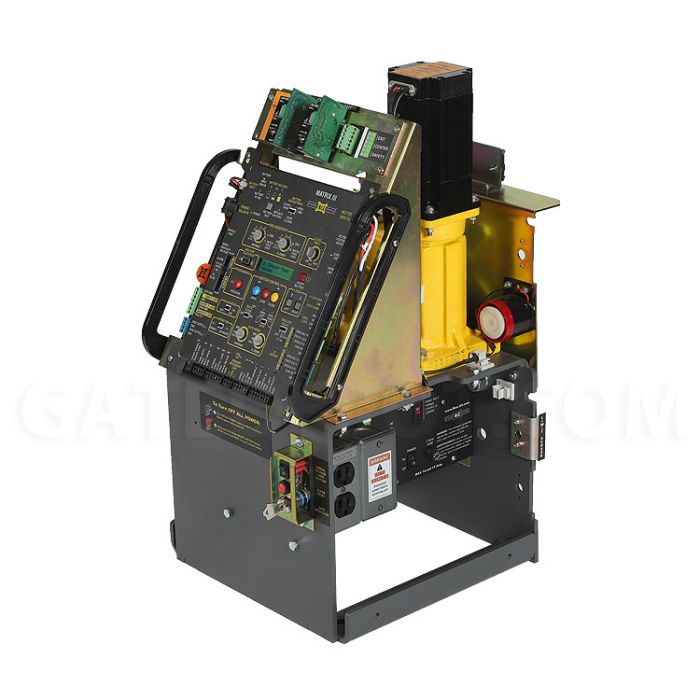

The Max 1700 FS PRO sliding gate operator is a robotic DSP controlled machine that is perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. It is capable of moving 1700 lb. gates to a maximum gate length of 40 ft.

Maximum Controls' solar operation capabilities are truly unmatched by any of our competition. The first gate operator manufacturer in the world to introduce expandable solar installation capabilities continues in its quest to produce the next generation in solar powered gate technology.

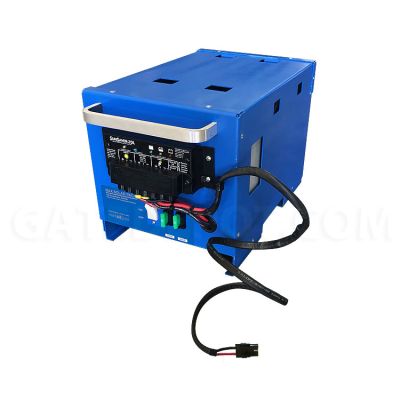

With the introduction of the Matrix lll PRO Series control board, all Maximum Controls pad mount gate operators became solar ready. In solar mode (sleep mode) with a Solar Power Pack installed, the PRO series machines excel in commercial as well as residential applications nationwide. With the Solar Combiner up to 4 Solar Power Packs with 200w solar panels can be wired together to form a single ended 24VDC supply source. This UL approved expandable feature is only available from Maximum Controls.

MAX 1700 FS PRO Features

• Local keyed manual disconnect – allows gate to be pushed back
• Remote keyed manual disconnect – allows gate to be pushed back from outside the property by keypad or any dry contact command
• Dynamic braking system, in closed position, will fight back if unauthorized push back is attempted
• Audible alarm and relay out trigger when unauthorized entry (push back) is attempted

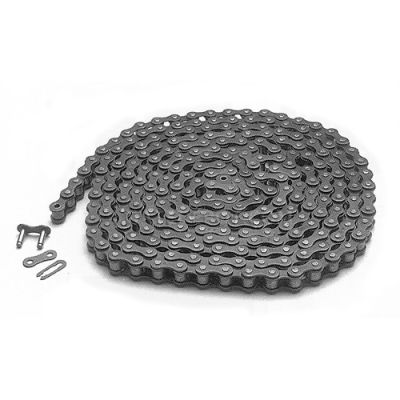

• 25 ft #40 Nickel Plated Chain & Brackets
• Programmable virtual limit
• Optional magnetic limits sensors available
• Patent No. US 9,406,207 B2

MAX 1700 FS PRO Mechanical Specifications

• Max 1700 FS PRO Slide Gate Operator dimensions (14.5" W x 19" D x 25.5" H) 7.5" chain height
• Heavy duty direct drive gear box Size 60, 20: 1 gear ratio
• Max 1700 FS PRO capacity 1700lbs /40ft long gate speed 12" per second for class I and II, adjustable dip switch configuration for UL class III and IV making the operator speed up to 19" per second
• Independent Opening and Closing speed control for primary and secondary
• Direct gear drive (no internal chains, belts, or pulleys)
• Corrosion protection gold zinc coating and electrostatic powder coating applied
• Continuous cycle at extreme temperature ranges—overheating not possible
• Intelligent ramp-up and ramp-down for smooth operation
• Selectable short or long ramp-down
• Shipping weight of Max Slide Gate Operator: Max 1700 FS PRO (156 lbs)
• Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)

MAX 1700 FS PRO Electrical Specifications

• Mechanical Release: Local switch, keypad, or any dry contact relay will release dynamic braking, allowing gate to be pushed back in case of emergency
• Brushless DC motor equivalent to 1 1/4 HP AC motor
• Programmable gate speed controls, 16 selectable speeds
• Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
• Modular system design for ease of service
• Switchable 115/230 voltage selection
• Adaptive DSP control for advanced brushless DC motion control
• Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
• LCD display that report past and recent errors
• Low voltage wiring capabilities for remote power up 500 ft (no battery needed)
• 'Solar Ready' battery module with built-in advanced solar regulator
• Intelligent power management system with energy saver mode
• Built-in 12vdc and 24vdc outputs
• Gold contact input connections and automobile grade connectors
• Selectable open timer 0 to 60 seconds with 'timer off' option
• -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater

MAX 1700 FS PRO Security Specifications

• High traffic intuitive loop management system for better security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper-alert relay output triggers "on" if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for higher security
• Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
• Lockable cover with key lock release to prevent intruders and vandalism
• Built-in transaction buffer for high security 8000 events as well as error messaging file
• Gate status outputs for gate monitoring
• Advanced anti-tailgate feature provides higher security
• Optional Chain Drop Sensor detects unauthorized chain drops when using magnets option
• Fire Department Compliance allows gate to auto-open upon loss of AC power or battery depletion

MAX 1700 FS PRO Safety Specifications

• High traffic intuitive loop management system for better security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper-alert relay output triggers "on" if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for higher security
• Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
• Lockable cover with key lock release to prevent intruders and vandalism
• Built-in transaction buffer for high security 8000 events as well as error messaging file
• Gate status outputs for gate monitoring
• Advanced anti-tailgate feature provides higher security
• Optional Chain Drop Sensor detects unauthorized chain drops when using magnets option
• Fire Department Compliance allows gate to auto-open upon loss of AC power or battery depletion

At Maximum Controls we sell our gate operators and entry systems to distributors who work with experienced installers. We will not assist with tech support and the warranty will be void if anyone other one than a professional gate installer, installs the gate operator.

Our tech support and warranties only apply when installed by industry professionals. Maximum Controls operators are not designed for do-it-yourself users, homeowners, electricians, maintenance personnel, etc.
