Maximum Controls MAX 1500 PRO Slide Gate Operator - Commercial / Industrial

HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

Security device that moves 1500 lb. gates.

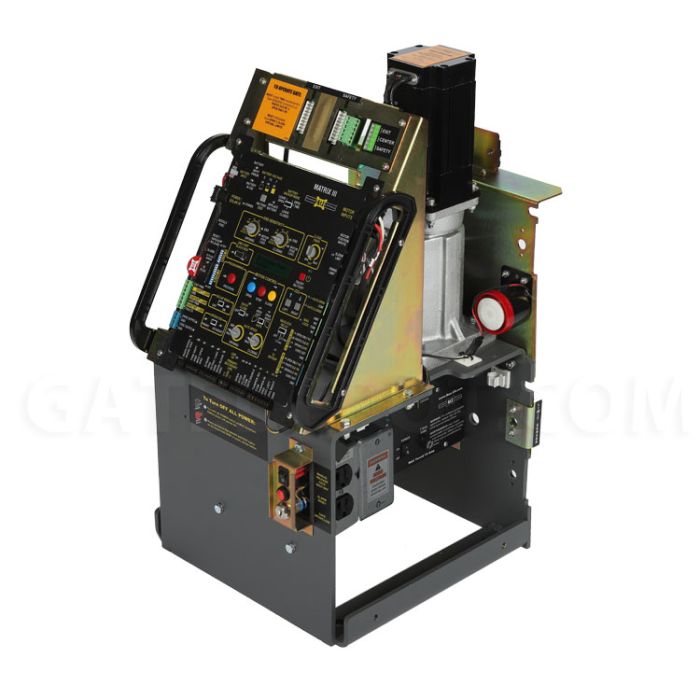

Max 1500 PRO sliding gate operators are robotic DSP controlled machines that are perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. They are capable of moving 1500 lb. gates to a maximum gate length of 25 ft. While competitively priced, they offer the same reliable state machine design electronics, 24V brushless DC motor, robust features and ease of installation as Maximum Controls' higher end models. The Max 1500 PRO's attractive cover and access doors are made of a quarter inch UV protected, high impact polyurethane material that offer years of non-fading and structural stability. It comes standard with a lockable cover for easy access that allows for quick servicing. Max 1500 PRO sliding gate operators are also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.

Maximum Controls' solar operation capabilities are truly unmatched by any of our competition. The first gate operator manufacturer in the world to introduce expandable solar installation capabilities continues in its quest to produce the next generation in solar powered gate technology.

With the introduction of the Matrix lll PRO Series control board, all Maximum Controls pad mount gate operators became solar ready. In solar mode (sleep mode) with a Solar Power Pack installed, the PRO series machines excel in commercial as well as residential applications nationwide. With the Solar Combiner up to 4 Solar Power Packs with 200w solar panels can be wired together to form a single ended 24VDC supply source. This UL approved expandable feature is only available from Maximum Controls.

MAX 1500 PRO Mechanical Specifications

• Max 1500 PRO slide gate operator dimensions (14.5"W x 19" D x 25.5" H) 7.5" chain height
• Heavy duty direct drive gear box size 60, 30:1 gear ratio
• Max 1500 PRO capacity 1500lbs /25ft long gate speed 12" per second for class I, II, III and IV
• Independent opening and closing speed control for primary and secondary
• Direct gear drive (no internal chains, belts, or pulleys)
• Corrosion protection gold zinc coating and electrostatic powder coating applied
• Continuous Cycle at extreme temperature range. No overheating possibility
• Intelligent ramp-up and ramp-down gate speed control for smooth operation
• Selectable short or long ramp-down
• Shipping weight of Max Slide Gate Operator: Max 1500 PRO (152 lbs)
• Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of total power loss)

MAX 1500 PRO Electrical Specifications

• Electronic release: Jog switch at front cover sliding window
• Brushless DC motor equivalent to 1/2 HP AC motor
• Programmable gate speed controls, 16 selectable speeds
• Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
• Modular system design for ease of service
• Switchable 115/230 voltage selection
• Adaptive DSP control for advanced brushless DC motion control
• Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
• LCD display that reports past and recent errors
• Low voltage wiring capabilities for remote power up 500 feet (no battery needed)
• Solar ready battery module with built-in advanced solar regulator
• Intelligent power management system with energy saver mode
• Built in current limited 12vdc and 24vdc outputs
• Gold contact input connections and automobile grade connectors
• Selectable open timer 0 to 60 seconds with timer off option
• -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
• Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels) including loop detector input connections
• Motor overcurrent safety shut off for additional protection
• This operator includes a battery backup module providing on average 200 cycles in case of power failure
• Three modes of selectable battery backup functions
• State machine design electronics with ultra-fast microprocessor
• On board three button station

MAX 1500 PRO Security Specifications

• High traffic intuitive loop managements system for better security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper alert relay outputs triggers "on" if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for higher security
• Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
• Lockable cover with key lock release to prevent intruders and vandals
• Built-in transaction buffer for high security 8000 events as well as error messaging file
• Gate status outputs for gate monitoring
• Advanced anti-tailgate features to provide higher security
• Optional chain drop sensor detects unauthorized chain drops when using magnets option
• Fire department compliance allows gate to auto-open upon loss of AC power or battery depletion

MAX 1500 PRO Safety Specifications

• High traffic intuitive loop managements system for better security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper alert relay outputs triggers "on" if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for higher security
• Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
• Lockable cover with key lock release to prevent intruders and vandals
• Built-in transaction buffer for high security 8000 events as well as error messaging file
• Gate status outputs for gate monitoring
• Advanced anti-tailgate features to provide higher security
• Optional chain drop sensor detects unauthorized chain drops when using magnets option
• Fire department compliance allows gate to auto-open upon loss of AC power or battery depletion

At Maximum Controls we sell our gate operators and entry systems to distributors who work with experienced installers. We will not assist with tech support and the warranty will be void if anyone other one than a professional gate installer, installs the gate operator.

Our tech support and warranties only apply when installed by industry professionals. Maximum Controls operators are not designed for do-it-yourself users, homeowners, electricians, maintenance personnel, etc.
