Linear MultiCode MCS307010 Key Ring Transmitter - 1 Button

Be the first to review this product

• Compatible with 300 MHz Multi-Code receivers • Easy access to battery and coding switches • Power: 12-volt battery • Codes: 1,024 (set by dip switches) • RF frequency: 300 MHz • Dimensions: 1.5" W x 2" H x 0.625" D • 1 Week Lead Time

MPN: 307010

$28.35

SKU

LIN-mcs307010

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Overview

Product Details

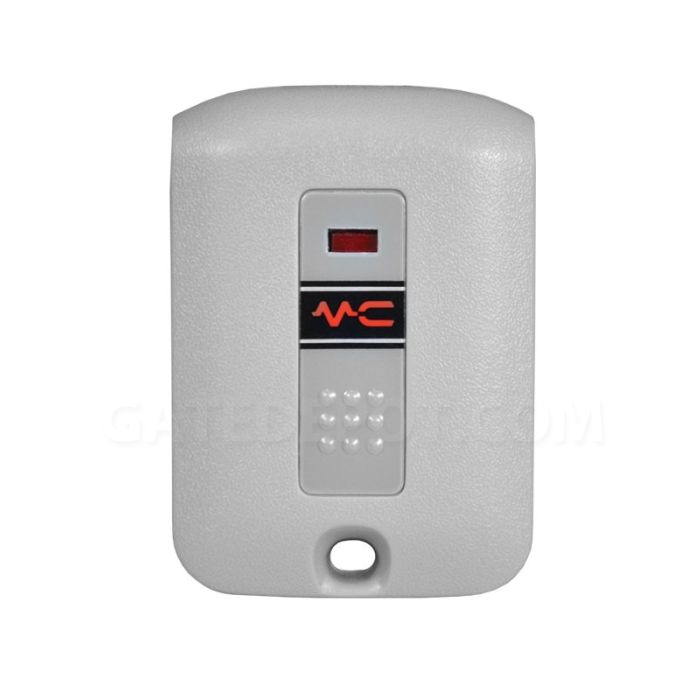

The Model 307010 1-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with one 10-position coding switch providing 1,024 possible codes. The transmitter will only activate receivers set with the same code.

The Model 307010 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Specification
