Linear MultiCode 414001 Visor Transmitter - 4 Button

Be the first to review this product

• Compatible with 300 MHz Multi-Code receivers • Same as Ramset 800-85-03 • Supplied with visor clip • Easy access to battery and coding switches • Power: 9-volt battery • Codes: 512 (set by dip switches) • RF frequency: 300 MHz • Dimensions: 2.5" W x 3.75" H x 0.875" D • 1 Week Lead Time

MPN: 414001

$51.00

SKU

LIN-414001

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Overview

Product Details

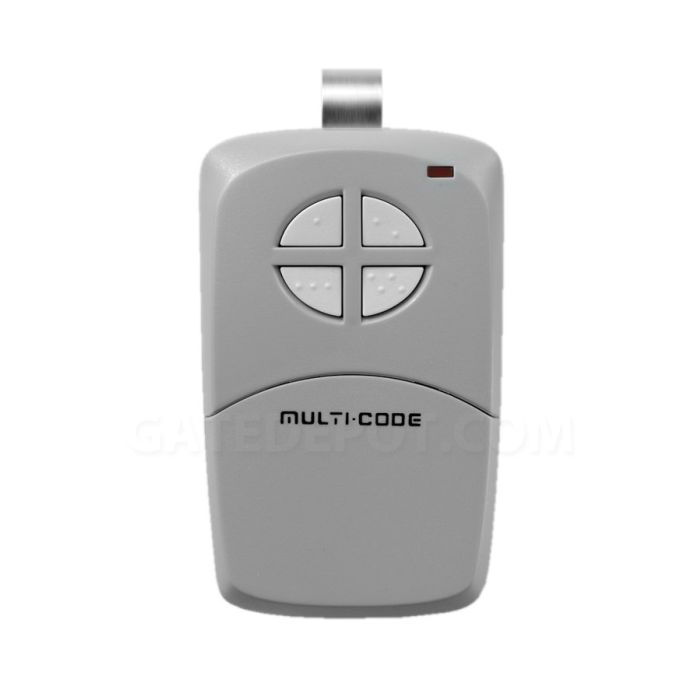

The Model 414001 4-Channel Visor Transmitter is a portable transmitter designed for automatic door and gate operator applications.

This transmitter is a four-channel device. Each button activates one of the four channels. The buttons feature raised dimples for easy, or vision-impaired identification. A visor clip is included. The transmitter is powered by a 9-volt battery and has a test/operate indicator.

The transmitter is Multi-Code format with two 10-position coding switches providing 512 possible codes for each channel. The transmitter will only activate receivers set with the same code.

The Model 414001 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Specification
