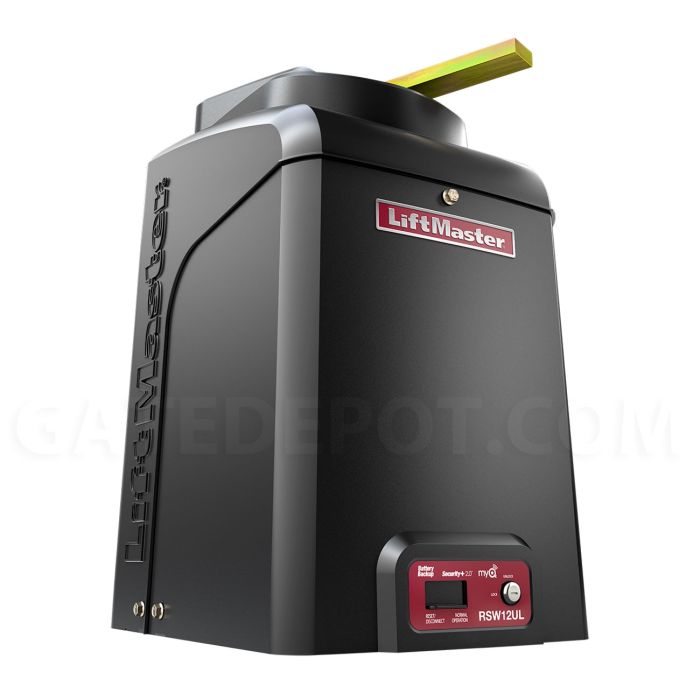

LiftMaster RSW12U Swing Gate Operator
• 6' x 1,000 Lbs / 16' x 400 Lbs
• 120VAC Power Source or 12VDC Solar Compatible
• 12VDC Operational Voltage
• Opens 90° ~ 13 - 15 Seconds
• Continuous Duty / 250 Cycles per Day
• 12VDC Battery Backup System w/ (1) 7-Ah Batteries
• Up To 877 Cycles on Backup Operation w/ 33-Ah Battery
• Includes Receiver & Photo Eye
• 3-Year Limited Manufacturer Warranty
From $2,255.00
To $3,530.50
SKU
LFM-rsw12u-bundle
Product Details
The RSW12U's sturdy pad-mount design delivers accurate control of the gate and unsurpassed performance. Industry-leading power management technology extends battery backup for up to 63 days without recharging, providing greater security and reliability. No one else can offer you that peace of mind.
Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.
Suitable Gate Dimensions:
6' x 1000 Lbs
10' x 700 Lbs
16' x 400 Lbs
CONNECTIVITY
- MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App
- Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars
PERFORMANCE
- Battery Backup with exceptional standby power—63 days
- P3 Motors®—purpose-built motor designed to meet your application requirements
- Soft start/stop and mid-travel reversal extends hardware life in high-cycle and heavy-gate applications
- High-density UV-resistant polycarbonate 2-piece cover
- Two commercial oilbath gearboxes with 900:1 wormgear reduction
- Constructed with 1/4 in. gold zinc plated steel for rust prevention
- Electronic limit setting
- 2-digit LED diagnostic display
- Bi-part delay
- 2 auxiliary power outlets
- Surge suppression/lightning protection up to 50 ft. away
SAFETY
- Includes Monitored Retro-Reflective Photo Eye (LMRRU)
- Monitored safety inputs with colored terminal blocks (3 on main board, 3 on optional expansion board)
- UL /cUL Listed, tested to the most stringent industry guidelines
- Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used — 3-channel receiver—OPEN/CLOSE/STOP
- Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening
- Fire department compliance—auto open on battery depletion
- Synchronized close
- Non-scissoring gate arm with emergency release handle that maintains limits once re-engaged
- Timer-to-Close
— Compatible with HOMELINK® version 4 and higher
— Receiver stores up to 50 remote controls
| Brand | Liftmaster |
|---|
