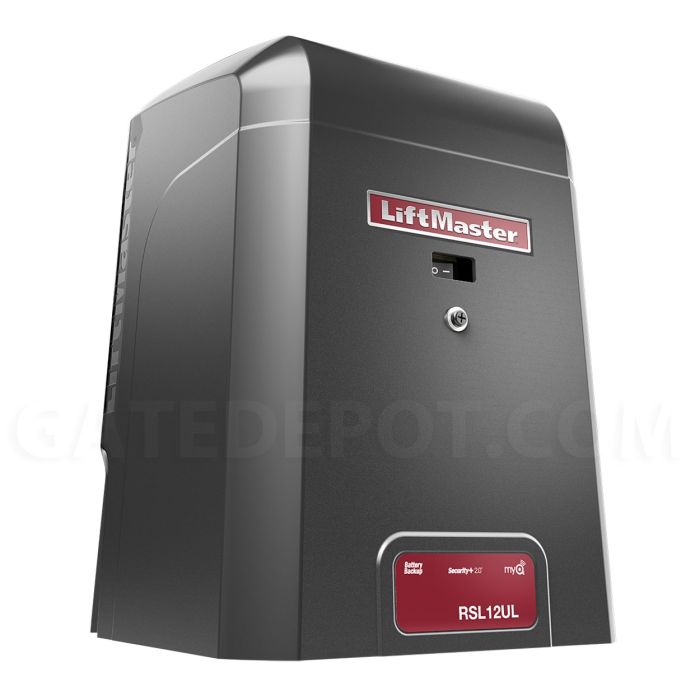

LiftMaster RSL12UL-MC Slide Gate Operator
• 25' x 800 Lbs
• 120VAC Power Source or 12VDC Solar Compatible
• 12VDC Operational Voltage
• Opens ~ 10" per Second
• Continuous Duty / 120 Cycles per Day
• 12VDC Battery Backup System w/ (1) 7-Ah Battery
• Up To 710 Cycles on Backup Operation w/ 33-Ah Battery
• Includes Receiver, LMRRUL Photo Eye & S505AL Sensing Edge
• 3 -Year Limited Manufacturer Warranty
From $2,010.00
To $3,545.50
SKU
LFM-rsl12ul-mc-bundle
Product Details
Ideal for large heavy gates, the RSL12UL sturdy pad mount design delivers accurate control of the gate and unsurpassed performance. Industry-leading power management technology extends battery backup for up to 63 days without recharging, providing greater security and reliability. No one else can offer you that peace of mind.
Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.
CONNECTIVITY
- MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App
- Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars
PERFORMANCE
- Battery Backup provides up to 114 cycles or 63 days of standby power when the power is out
- P3 Motor®—purpose-built motor designed to meet your applications' requirements
- Soft start/stop operation extends hardware life in high-cycle and heavy-gate applications
- High-density UV-resistant polyethylene cover
- Commercial oil bath gearbox with 15:1 worm gearbox
- Constructed with 1/4 in. gold zinc plated steel for rust prevention
- One-touch push-button electronic limit setting
- 2-digit LED diagnostic display
- Bi-part delay
- Manual disconnect
- 2 auxiliary power outlets
- Supplied with 25 ft. #41 black oxide chain
- Surge suppression/lightning protection up to 50 ft. away
SAFETY
- Includes Monitored Retro-Reflective Photo Eye (LMRRU)
- Monitored safety inputs with colored terminal blocks (3 on main board, 3 on optional expansion board)
- UL /cUL Listed, tested to the most stringent industry guidelines
- Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used
- 3-channel receiver—OPEN/CLOSE/STOP
- Compatible with HOMELINK® version 4 and higher
- Receiver stores up to 50 remote controls
- Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening
- PosiLock®&mdashsecures gate
- Fire department compliance—auto open on battery depletion
- Synchronized close
- Timer-to-Close
| Brand | Liftmaster |
|---|
