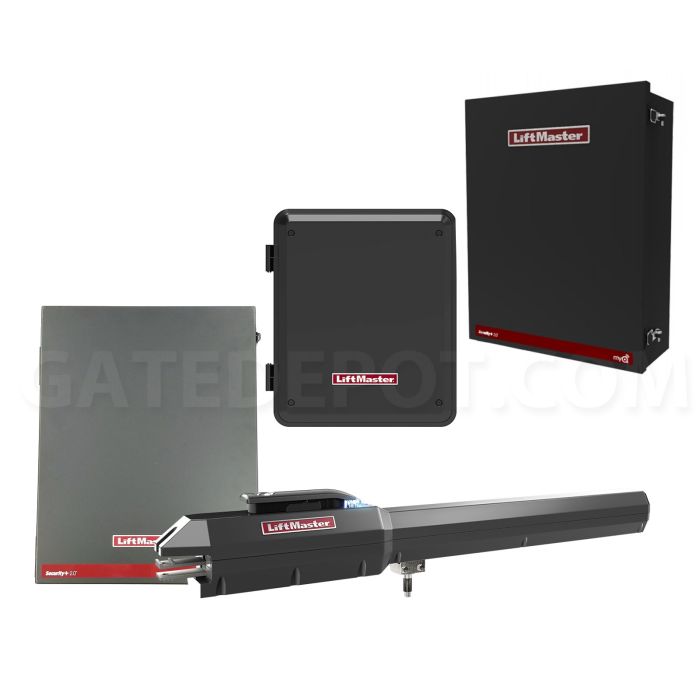

Liftmaster LA500 Linear Arm Operator
Choose AC or Solar
• 8' x 1,600 Lbs / 18' x 600 Lbs
• 120/230VAC Power Source or 24VDC Solar
• 24VDC Operational Voltage
• Opens 90° ~ 15-17 Seconds
• Continuous Duty / 300 Cycles per Day
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 2781 Cycles on Battery Backup w/ 33Ah Batteries
• Includes Receiver & Photo Eye
• 2-Year Limited Manufacturer Warranty
From $1,760.00
To $6,331.25
SKU
LFM-la500-bundle
Product Details
One of our most powerful swing gate operators delivers unsurpassed performance and secure access to your property. Our industry-leading power management technology extends Battery Backup for up to 24 days without recharging. No other company can offer you that peace of mind.
Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.
Suitable Gate Dimensions:
8' x 1600 Lbs
12' x 1200 Lbs
16' x 800 Lbs
18' x 600 Lbs

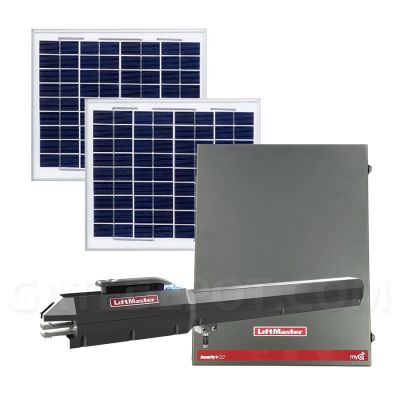

LA500XL20 Includes:
- 24VDC Solar Residential Linear Actuator
- XL Solar Control Box (For use with 33AH Battery)
- (2) 33AH Batteries with Tray
- 20 Watt Solar Panel Kit, (Includes (2) 10W panels)
- Solar Harness
CONNECTIVITY
- MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App
- Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars
PERFORMANCE
- Battery Backup secures and safeguards your property by providing up to 500 cycles or up to 24 days of standby power when the power is down
- P3 Motors®—purpose-built motor designed to meet your applications' requirements
- Soft start/stop operation
- Commercial-duty cast-aluminum housing
- Wormgear reduction, precision-machined all-metal gear
- Electronic limit setting
- 2-digit LED diagnostic display
- Integrated Plug-In Loop Detector inputs
- Keyed manual disconnect
- 2 auxiliary power outlets
- Party Pass—selectable hold-open feature
- Bi-part delay
- Surge suppression/lightning protection up to 50 ft. away
SAFETY
- Includes Monitored Retro-Reflective Photo Eye (LMRRU)
- Monitored safety inputs with colored terminal blocks (3 on main board, 3 on optional expansion board)
- UL /cUL Listed, tested to the most stringent industry guidelines
- Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used — 3-channel receiver—OPEN/CLOSE/STOP
- Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening
- Fire department compliance—auto open on AC failure or battery depletion
- Pre-motion warning alarm
- Synchronized close
- Timer-to-Close
— Compatible with HOMELINK® version 4 and higher
— Receiver stores up to 50 remote controls (unlimited with 811LM/813LM)
