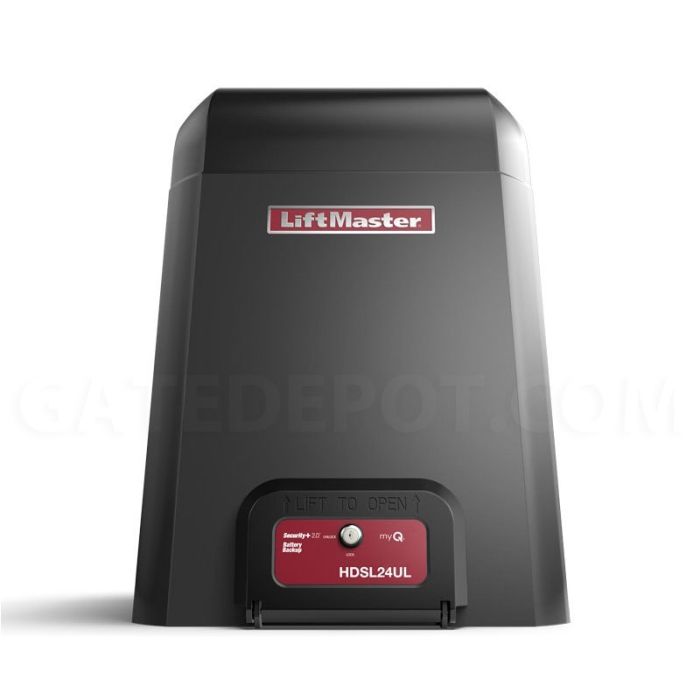

LiftMaster HDSL24UL-MC Heavy-Duty Variable Speed Slide Gate Operator
• 75' x 3,000 Lbs
• 120/240VAC Power Source or 24VDC Solar Compatible
• 24VDC Operational Voltage
• Opens from 6" to 12" per Second
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 109 Cycles on Backup Operation w/ 33-Ah Battery
• Includes Receiver, LMRRUL Photo Eye & S505AL Sensing Edge
• 7 / 5-Year Limited Manufacturer Warranty
From $3,145.00
To $4,750.25
SKU
LFM-hdsl24ul-mc-bundle
Product Details
Reliable
- Continuous-duty gate operation built with a custom heavy-duty gear box, size 70, direct drive 40:1 gear ratio.
- Custom 1.5 hp peak brushless dc motor delivers up to 6 million cycles.
- Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
- Smooth start/stop operation and mid-travel reversal extend operator hardware life.
- #40 industrial chain provides a pull strength of 2x the gate weight.
Smart
- Powered by myq® for full insight and control over community and facility access points. monitor and control multiple communities with smart community access. improve warehouse efficiency and productivity with smart facility access when linked with an access control powered by myq. cellular data or wi-fi® connection required.
- Four programmable auxiliary relays accommodate more accessories.
- Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.
Safe & Secure
- Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
- Posilock® automatically closes the gate when it is pushed from the closed limit.
- UL® listed gate operator with monitored safety entrapment protection devices.
Mechanics
- 24VDC Brushless Continuous-Duty Motor
- Operator Duty Rating: High-Cycle, High-Temperature Continuous-Duty
- Direct Drive
Power
- 120/240VAC Single-Phase
- Accessory Power: 24VDC 1 A Max. Output; Switched and Unswitched Power
- Optional Kit (3PHCONV) to Convert a 3-Phase Input Voltage of 208/240/480/575VAC to an Output Voltage of 120VAC
- Solar-Ready, Ultra-Reliable System Delivers Power When and Where You Need It (LMRRUL/LMTBUL Heater Option Not Recommended for Solar Applications)
Commercial-Grade Design
- Chassis: Constructed with 1/4 in. Steel, Powder Coated
- Cover: High-Density, UV-Resistant Polyethylene Cover for Excellent Heat and Corrosion Resistance
- Manufacturer Warranty: 5 Years Commercial, 7 Years Residential
- UL® Usage Classification: I , I I , III and IV
Standard Features
- Inherent Reversing Sensor - Detects Obstructions and Reverses Gate
- Posilock® - Automatically Closes the Gate When It Is Pushed from the Closed Limit
- Manual Disconnect - Allows Gate to Be Opened Manually When Released
- Monitored Safety Inputs - 3 Main Board, 3 Expansion Board
- Security+ 2.0® On-board
- Radio Receiver - Tri-Band 310/315/390 MHz Frequency w/ up to 50 Remote Controls (Unlimited with 811LM/813LM)
- LED Diagnostic Display - Simplifies Installation and Troubleshooting
- Programmable Auxiliary Relays - 4 Relays Make Adding Additional Features Easy
- Homelink® Compatible - Version 4.0 or Higher (May require an external adapter depending on the model and year of your vehicle. Visit HomeLink.com for additional information.)
