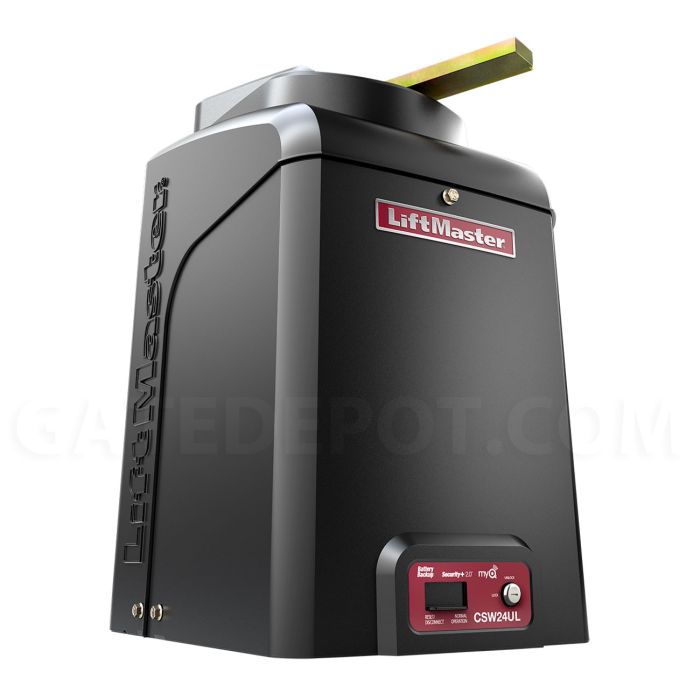

LiftMaster CSW24UL-MC Swing Gate Operator
• 8' x 1,600 Lbs / 18' x 600 Lbs
• 120/230VAC Power Source or 24VDC Solar Compatible
• 24VDC Operational Voltage
• Opens 90° ~ 13 - 15 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 875 Cycles on Backup Operation w/ 33-Ah Batteries
• Includes Receiver & Photo Eye
• 7 / 5-Year Limited Manufacturer Warranty
From $2,660.00
To $4,007.00
SKU
LFM-csw24ul-mc-bundle
Product Details
Engineered for more than a million cycles in high-traffic heavy-duty applications, the CSW24U is ideal for the most demanding swing gate environments. Industry-leading power management technology extends battery backup for up to 24 days without recharging, providing greater security and reliability. No one else can offer you that peace of mind. Liftmaster® elite series® gate operators feature the highest quality components and are backed by years of proven reliability.
Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0® radio. Industry-leading power management technology delivers power when you need it most to operate your gate and minimizes power draw at all other times.
Suitable Gate Dimensions:
8' x 1600 Lbs12' x 1200 Lbs
16' x 800 Lbs
18' x 600 Lbs
CONNECTIVITY
- MyQ® Technology enables you to securely control and monitor your gate operator from anywhere and get activity notifications through the MyQ App
- Wireless Dual-Gate Communication eliminates expensive conduit costs and avoids unsightly driveway scars
PERFORMANCE
- Battery Backup with exceptional standby power – 24 days
- P3 Motors® – purpose-built high-cycle high temperature continuous duty 24VDC motor
- Soft start/stop and mid-travel reversal extends hardware life in high-cycle and heavy-gate applications
- Heavy-duty commercial drive train providing 900:1 wormgear reduction
- High-impact polycarbonate UV-resistant cover
- 1/4 in. gold zinc plated chassis eliminates corrosion
- One-touch push-button electronic limit setting
- 2-digit LED diagnostic display
- Integrated Plug-In Loop Detector inputs
- Bi-part delay
- 2 auxiliary power outlets
- Surge suppression/lightning protection up to 50 ft. away
SAFETY
-
Includes Monitored Retro-Reflective Photo Eye (LMRRU)
Monitored safety inputs with colored terminal blocks (3 on main board, 3 on expansion board)
UL /cUL Listed, tested to the most stringent industry guidelines
Security+ 2.0® Technology access your property quickly with Security+ 2.0 Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote is used
- 3-channel receiver – OPEN/CLOSE/STOP
- Compatible with HOMELINK® version 4 and higher
- Receiver stores up to 50 remote controls Inherent reversing sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening Fire department compliance Pre-motion warning alarm Synchronized close Non-scissoring gate arm with emergency release handle that maintains limits once re-engaged Timer-to-Close
