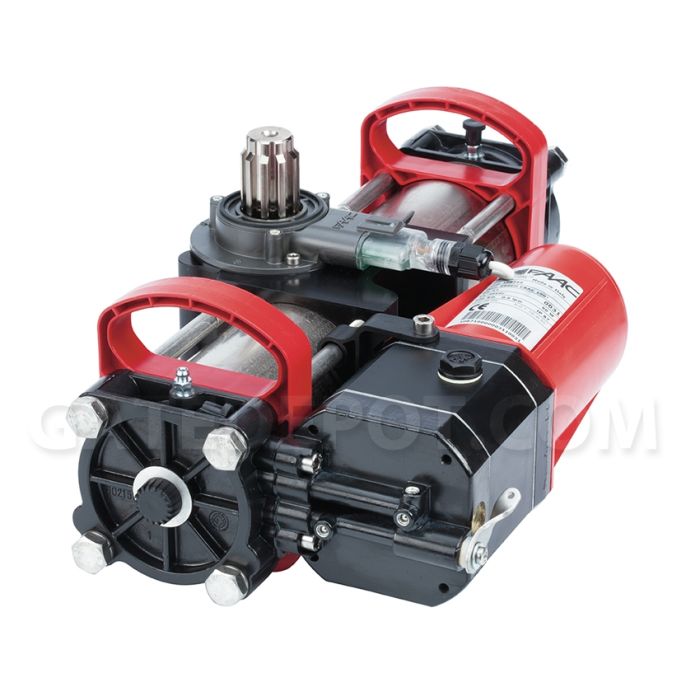

FAAC S800H SBW Hydraulic Swing Gate Operator
Choose 100° or 180° Opening
Available with Stainless Steel Load Bearing Box
• 16' x 1,760 Lbs
• 115VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 11 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 8-Ah Batteries
• Includes Receiver, 2 Transmitters & Photo Eye
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
From $3,199.00
To $8,479.55
SKU
FAC-s800h-sbw-bundle
Product Details

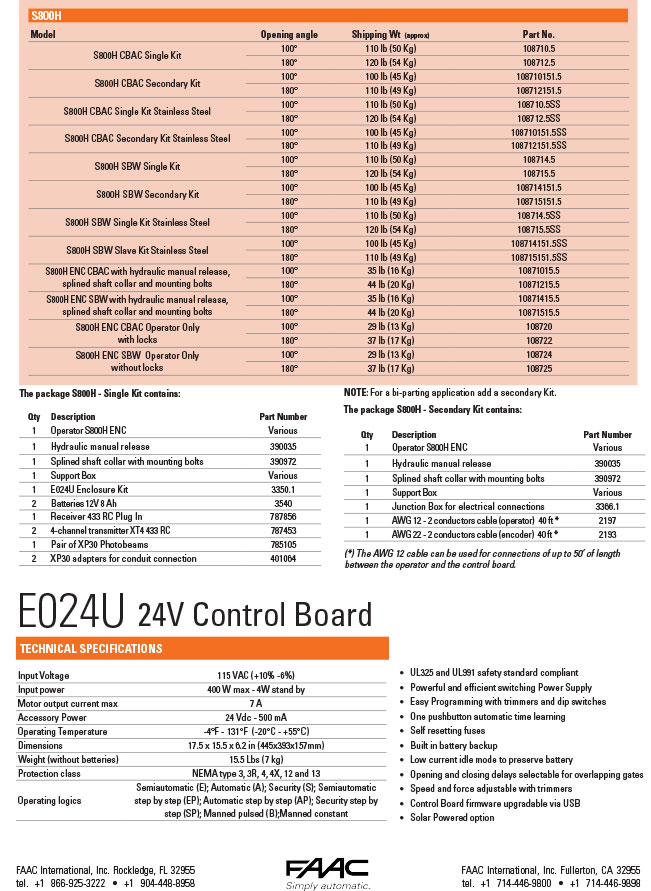

Single Kit Includes:
- 1 Operator S800H SBW - Various- 1 Hydraulic Manual Release- 390035
- 1 Splined Shaft Collar w/Mounting Bolts - 390972
- 1 Support Box
- 1 E024U Enclosure Kit - 3350.1
- 2 Batteries 12V 8 Ah - 3540
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105

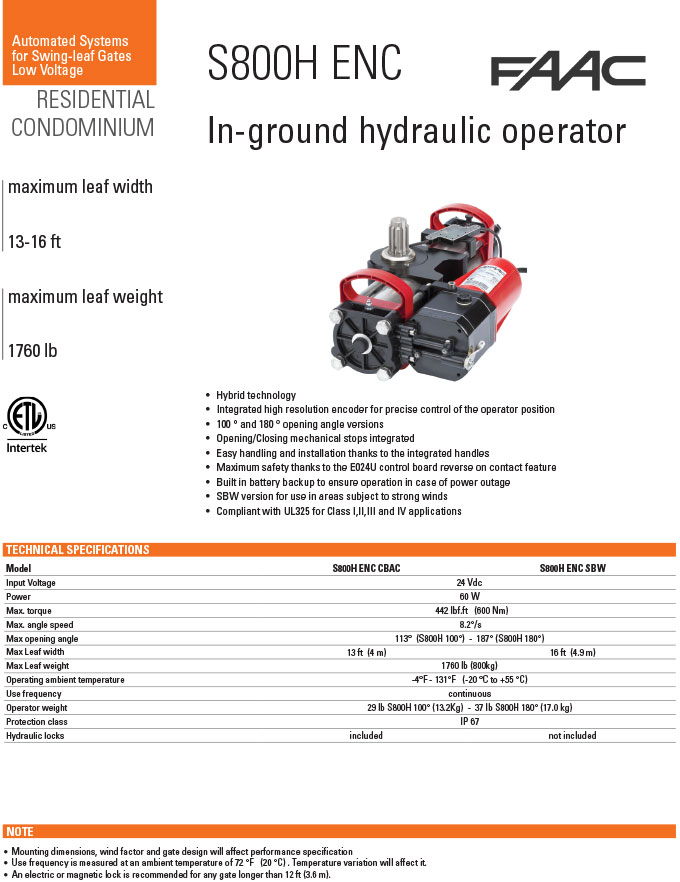

Features
- Hybrid technology
- Integrated high resolution encoder for precise control of the operator position
- 100° and 180° opening angle versions
- Opening/Closing mechanical stops integrated
- Easy handling and installation thanks to the integrated handles
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- SBW version for use in areas subject to strong winds
- Compliant with UL325 for Class I,II,III and IV applications
Note:
• Mounting dimensions, wind factor and gate design will affect performance specification• Use frequency is measured at an ambient temperature of 72°F (20°C) . Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
| Brand | FAAC |
|---|
Showcased Accessories
- Gate Locks
- Stand-Alone Access Control
- Multiple Unit / Access Point Control Systems
- Radio Remotes
- Access Control Accessories
- Loop Detectors
- Loops
- Photo Eyes
- Safety & Sensor Accessories
- Wire & Cable
- All Products
- Google Feed
Product Manuals
Product Brochures
Additional Resources
-
20====
-
FAAC 202025 Control BoardFAC-202025 202025• E024U 24VDC Replacement Control PanelSee More Details
• 3-5 Day Lead Time
• Circuit Boards are Non Returnable$402.10
20==== -
FAAC 2182.1 Seal KitFAC-2182.1 2182.1• Seal Kit for S800HSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$140.25
20==== -
FAAC 2197 AWG 12 2-Conductor Cable - 10' LengthFAC-2197 2197• 10' AWG 12 2-Conductor CableSee More Details
• For use with master or master/slave system
• 3-5 Day Lead Time$70.75
20==== -
FAAC 390035 Hydraulic Manual Release for S800HFAC-390035 390035• Hydraulic Manual Release for S800HSee More Details
• 3-5 Day Lead Time$170.50
20==== -
FAAC 390972 Collar - Spline Shaft w/ BoltsFAC-390972 390972• Spline Shaft Collar w/ Mounting Bolts for S800HSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$138.50
20==== -

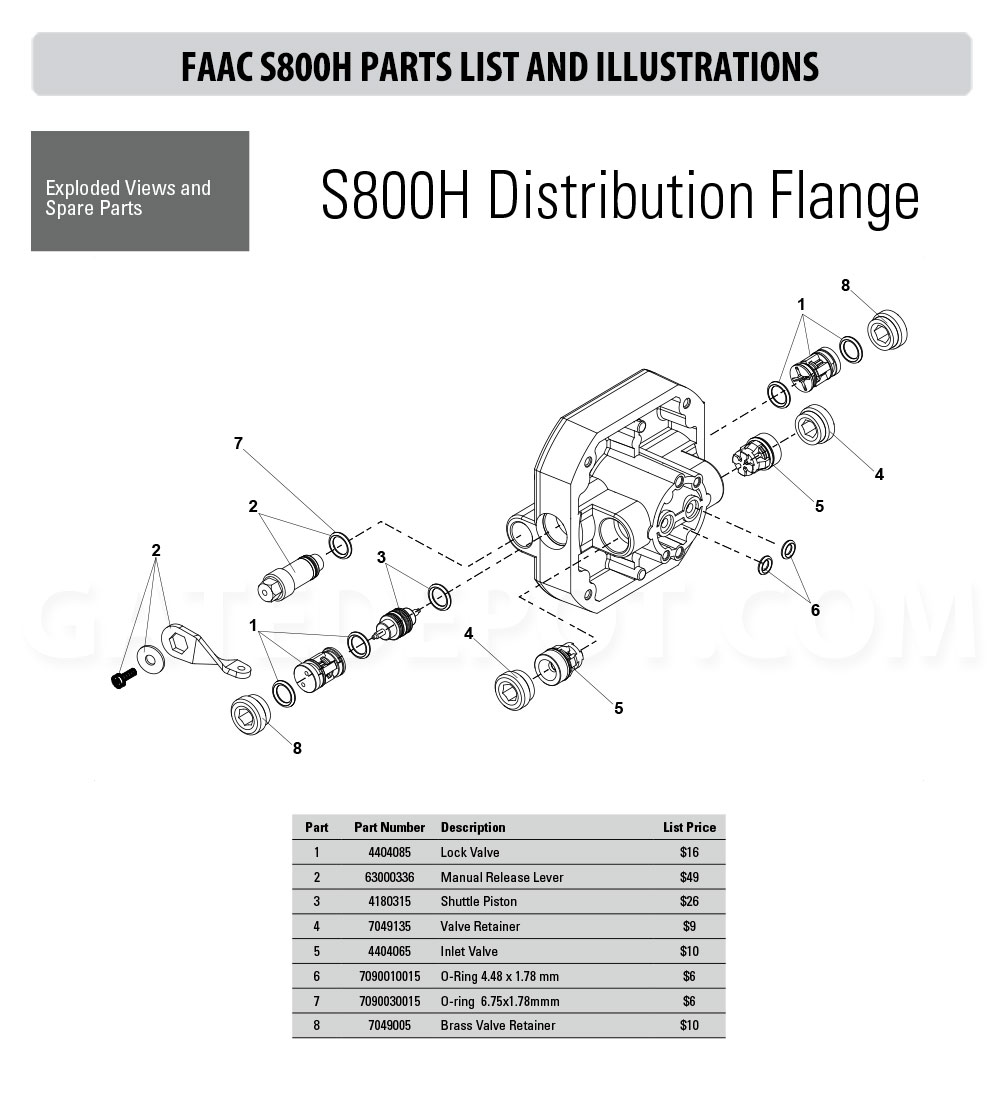

FAAC 4404085 Lock ValveFAC-4404085 4404085• Lock Valve Bi-Metal All Hydraulic OperatorsSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$18.00
20==== -
FAAC 63000045 Splined JointFAC-63000045 63000045• Splined Joint Low Profile for S800H Load Bearing BoxSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$134.75
20==== -
FAAC 63000176 GasketFAC-63000176 63000176• Gasket OR 55.25x2.62 for J275 BollardSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$4.80
20==== -

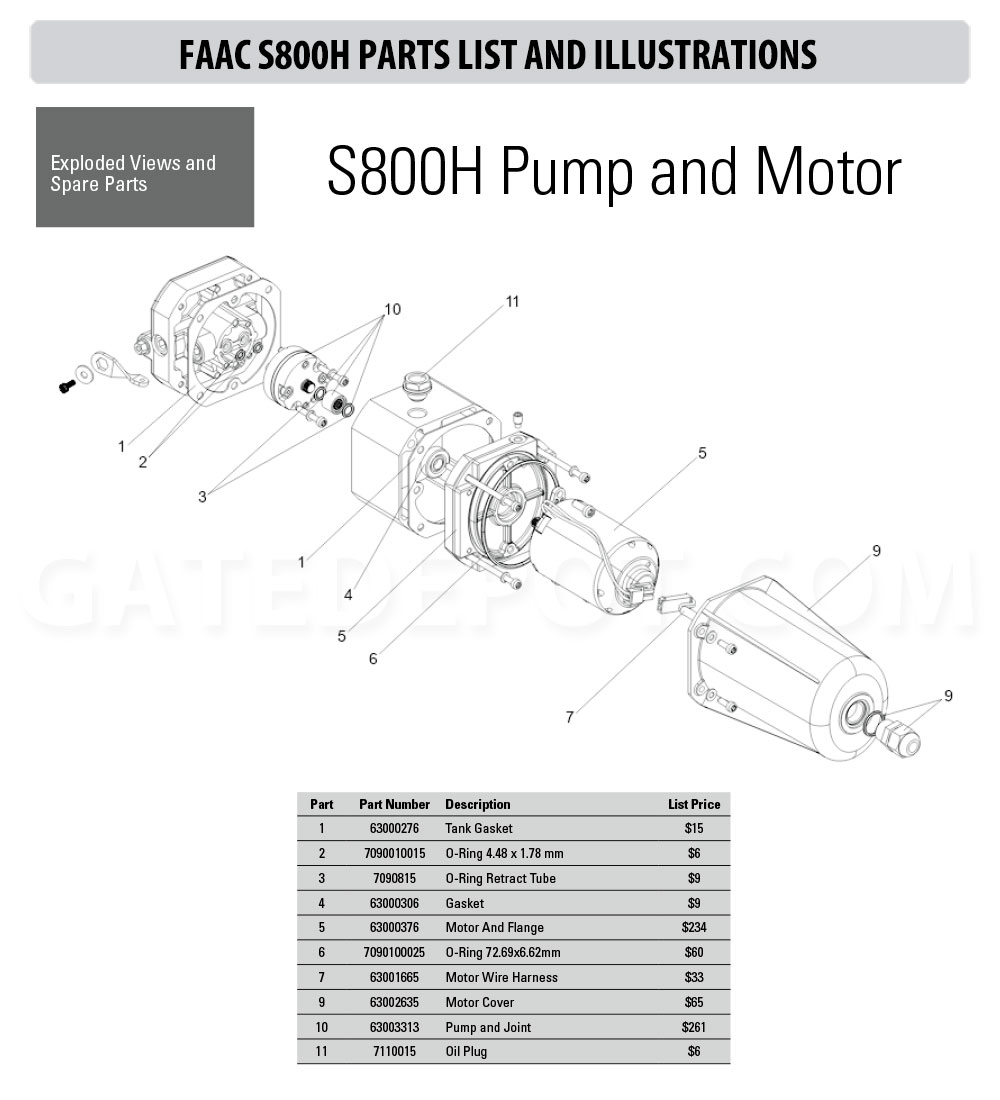

FAAC 63000376 Motor w/ FlangeFAC-63000376 63000376• Motor & Flange for S800HSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$141.50
20==== -

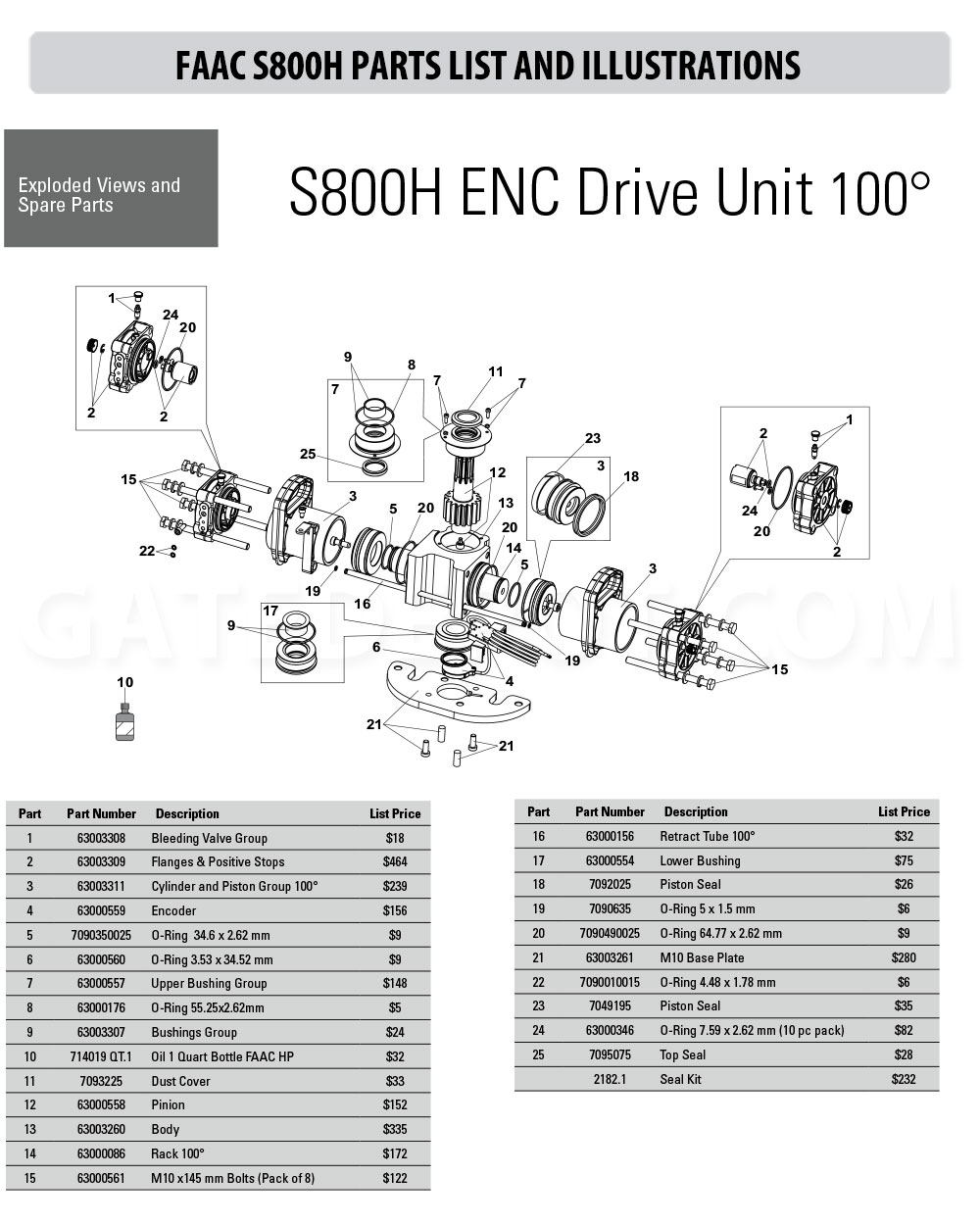

FAAC 63000557 Bushing Group - UpperFAC-63000557 63000557• Upper Bushing Group for S800H ENC 100° Drive UnitSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$96.50
20==== -
FAAC 63000558 PinionFAC-63000558 63000558• Pinion for S800H ENC 100° Drive UnitSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$99.25
20==== -
FAAC 63000559 Encoder - 100°FAC-63000559 63000559• Encoder for S800H ENC 100° Drive UnitSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$101.90
20==== -
FAAC 63002445 Splined JointFAC-63002445 63002445• Group Coupling Slotted High S700HSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$133.90
20==== -

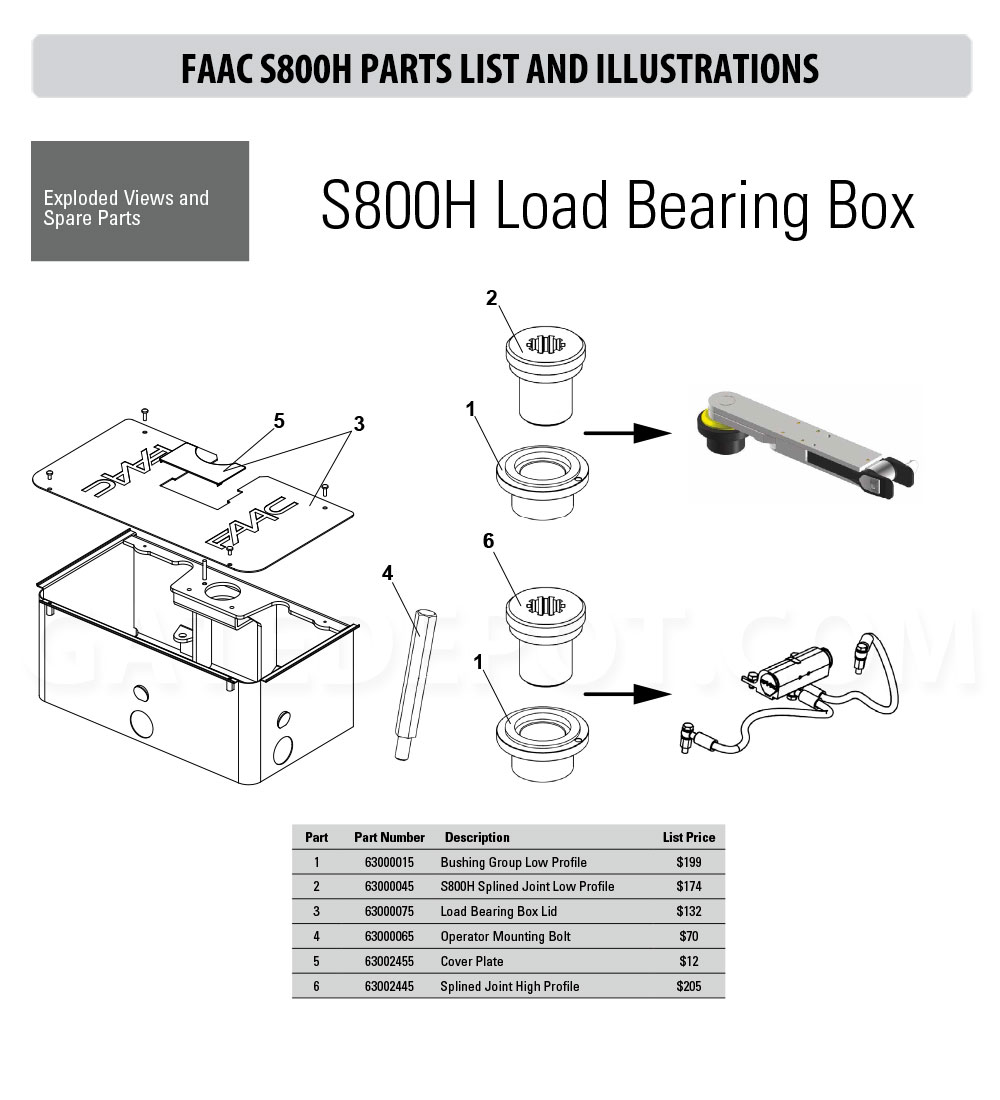

FAAC 63002455 Cover Plate - Load Bearing BoxFAC-63002455 63002455• Cover Plate for S800H Load Bearing BoxSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$11.60
20==== -
FAAC 63002635 Motor Cover GroupFAC-63002635 63002635• S800H Motor Cover GroupSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$62.95
20==== -
FAAC 7093225FAC-7093225 7093225• Dust Cover 750 Drive Unit/760 Load Bearing BoxSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$37.25
20==== -
FAAC 7110015 PlugFAC-7110015 7110015• Plug Oil 400/402/422 for Rear FlangeSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$11.10
20==== -
FAAC 714019 Oil - 1 QuartFAC-714019 714019• Oil 1 QuartSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$27.00
20==== -
FAAC 714042 Arctic Oil - 1 QuartFAC-714042 714042• Arctic Oil 1 QuartSee More Details
• 3-5 Day Lead Time
• Restock Fee May Apply to Returned Products$62.40
20==== -
FAAC 750007 Switching Power SupplyFAC-750007 750007• Switching Power Supply for E024U, ULSee More Details
• 3-5 Day Lead Time$132.50
