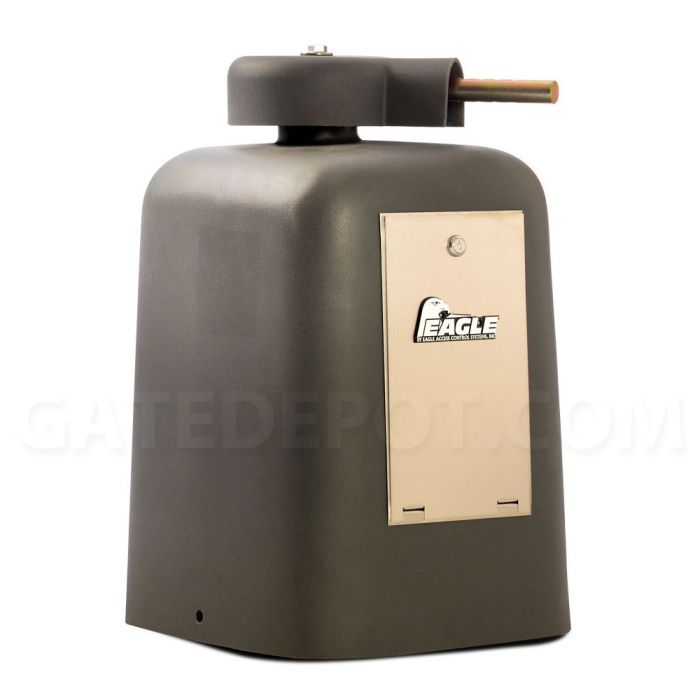

Eagle II Residential Swing Gate Operator
From $1,455.00
To $1,812.65
Product Details
Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-II swing gate operator is designed for residential applications and is built for gates up to 14 feet or 400lbs. It features the state of the art AC mini control board and comes with a swivel arm hardware that includes a quick release mechanism for operation during a power outage. This model is equipped with a 1/2 horse power motor continuous duty AC motor, a quiet gear box and quality components throughout. The Eagle-II is backed by our best in class 5 year Manufacturer Warranty.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Auto-Close Timer (1-60 sec.)
- 5-Year Limited (Residential) Manufacturer Warranty
- Drive Chain: #50 Nickel Plated
- Gear Reducer: Size 50 & 40
- Swing Arm with No-Pinch Design
- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: Zinc Plated Steel to Resist Corrosion
- Power Disconnect
- Quick Release Lever
- 1/2 HP Continuous Duty AC
- 115 VAC @ 60 HZ 5.7 AMP
- Optional Power I Battery Backup - Provides up to 40-80 Cycles
- No-Weld Swing Arm Assembly
- Audio Alarm
- Pre-Wired Receiver Terminal
- Maximum Gate: 14 ft & 400 lbs
- 18 seconds(approx.) to open (0-90 degrees)
- Rated Continuous Duty
- Dimensions: 20" (h) x 16 1/2" (w) x 15" (d)
- MADE IN USA
| Brand | Eagle |
|---|
