Eagle I Residential Slide Gate Operator
From $1,230.00
To $1,693.00
Product Details

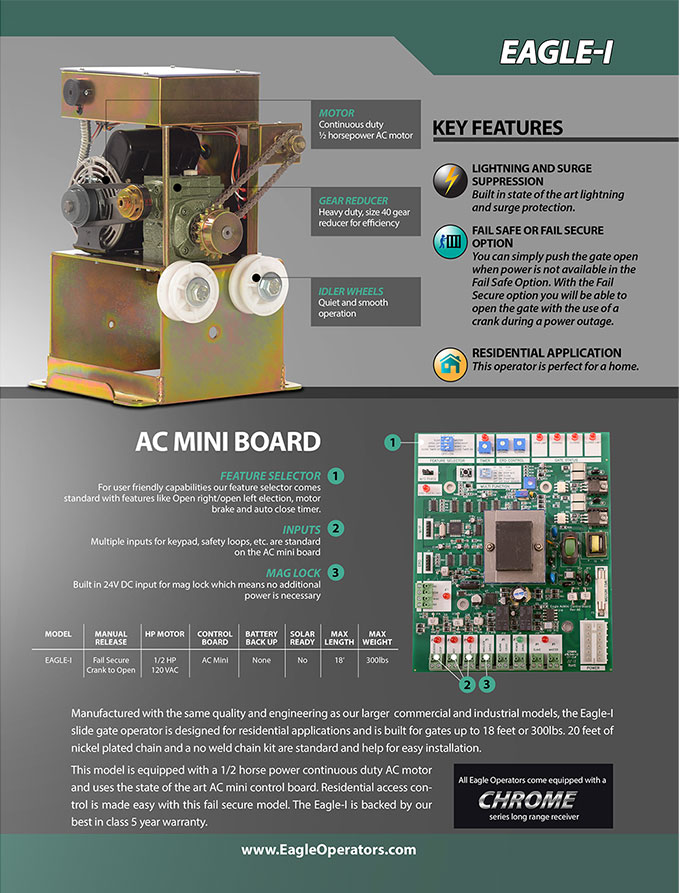

Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-I slide gate operator is designed for residential applications and is built for gates up to 18 feet or 300lbs. 20 feet of nickel plated chain and a no weld chain kit are standard and help for easy installation. This model is equipped with a 1/2 horse power motor continuous duty AC motor and uses the state of the art AC mini control board, backed of course by our best in class 5 year Manufacturer Warranty. Residential access control is made easy with this fail secure model.
*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.
Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Auto-Close Timer (1-60 sec.)
- Class I
- 5-Year Limited (Residential) Manufacturer Warranty
- Drive Chain: #41 Nickel Plated
- Gear Reducer: Size 40
- Swing Arm with No-Pinch Design
- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: Zinc Plated Steel to Resist Corrosion
- Power Disconnect
- Fail-Secure(FSC): Use Crank to Open
- 1/2 HP Continuous Duty AC
- 115 VAC @ 60 HZ 5.2 AMP
- Optional Power I Battery Backup - Provides up to 40-80 Cycles
- No-Weld Chain Brackets
- UHMW Silent Idler Wheels
- Audio Alarm
- Pre-Wired Receiver Terminal
- Maximum Gate: 18 ft & 300 lbs
- 12" per second travel
- Rated Continuous Duty
- Dimensions: 20" (h) x 15" (w) x 12" (d)
- MADE IN USA
| Brand | Eagle |
|---|
